3.0 Inch HD Display Medical Video Laryngoscope - Intubation Video Laryngoscope

HYHJ-KM key parameter

Carema pixel:300 million

Viewing angles:70º±9º

Depth of Field/DOF:3～100mm

Space Resolution:≥8lp/mm

Lux:≥2600

Display:3.0 inch color screen

Rotation angle: front&back: 155°±10°,

left&right: 275°±10°

Configuration & Function

Standard equipped 16G memory card,maximum 64G,for photo and vedio store;

photo, video and freeze frame, and can be stored and exported

Hd output function, can synchronizable display with the external display.

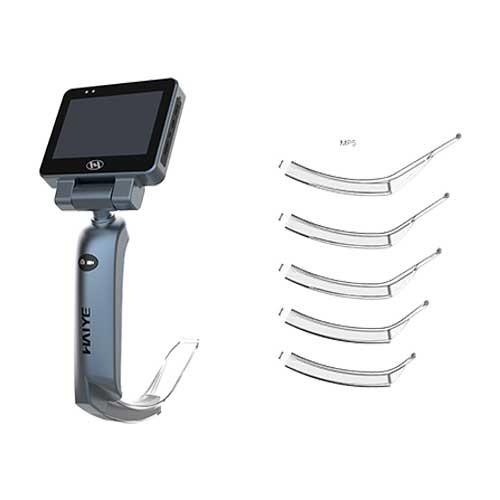

Two hosts can respectively carry 5+3 kinds of disposable laryngoscopes respectively

Interfacing connection type CType-C,Charge and export data lithium battery:3400mAh

Work Environment:-10～50℃,relative humidity:≤93%

Storage condition:-40～70℃,relative humidity:≤93%

KM’s advantages towards the previous vedio laryngoscope:

• Higher Carema Pixels;
• Higher Carema Resolution;
• Larger rotation angle;
• Can match all sizes of disposable blades;
• Type-C interface,faster charging and transfer;
• Better adaptability to working environment and storage environment

Application

It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).

It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels

Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...

Why Choose Vedio Laryngoscope?

1. Any doctors familar with tradional laryngoscope can smoothly use it;

2. Showing the internal oral structure very clearly, easily capture the photo and vedio;

3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;

4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;

5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;

6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;

7. Lighter operating force,less inquiry,and smoother hemodynamics.
