Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product Name :
Reusable Video Larygoscope
Display :
3 "TFT color screen
Resolution :
960*480
Viewing angle :
70°± 2°
Depth of field :
3~100mm
Rotate angle :
front to back: 0~135°, left to right: 0~275°
Battery type :
lithium ion battery
Battery working time :
continous use ≥ 350 mins
Carema :
CMOS, double anti fog
Carema Resolution :
1600 x 1200
Warranty :
1 Year
OEM service :
Yes
OEM qty :
50 units
Description

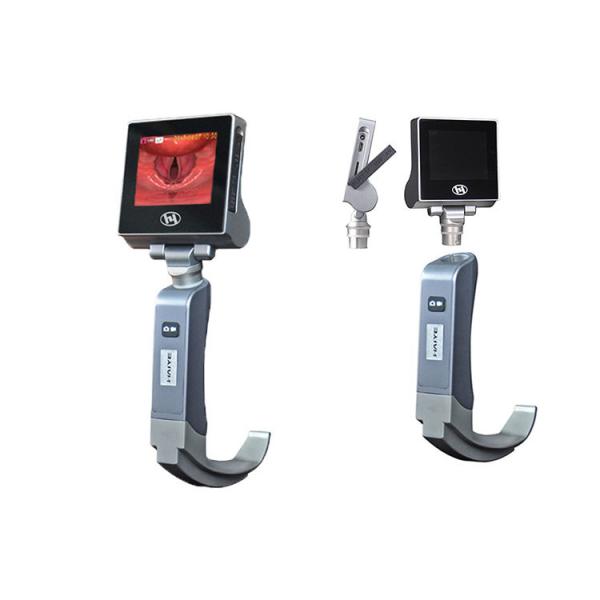

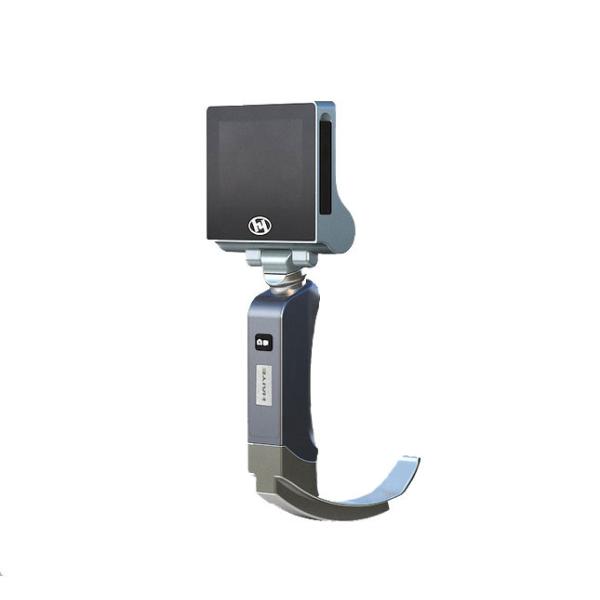

Haiye Medical Equipment------5 Resuable Stainless Blades Handheld Video Laryngoscope

Video laryngoscope characteristics is obvious, the operate method is simple and easy to learn, also it’s has less endotracheal intubation damage; the material is adopted by the special prevent mist processing material, which not easily affected by respiratory tract environment temperature difference with the outside world and can improve the success rate of tracheal intubation.

  • The more fully protected camera and optical cable,
  • smart portable machine,
  • the comfortable handle grip,
  • dual anti-fog peephole and lens,
  • no waiting booting ,
  • easily retain audio and video data,
  • photography with one button switch.

Compared with the common laryngoscope, the anesthesia video laryngoscope is designed without exposed lighting device circuit contacts, which can reduce the poor contact faults. At the same time, anesthesia video laryngoscope products are more high-performance large capacity rechargeable lithium battery, generally can be used continuously for 4 hours, more than a variety of specifications of peep tablets for your choice, can avoid cross infection.

Generally speaking, the performance advantage of anesthesia video laryngoscope is more obvious, the machine is small and portable, more ultra high pixel and high definition, especially the peep piece and lens dual anti-fog, short starting time, less damage to the trachea, long service life, disposable blades.

Technical feature

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm

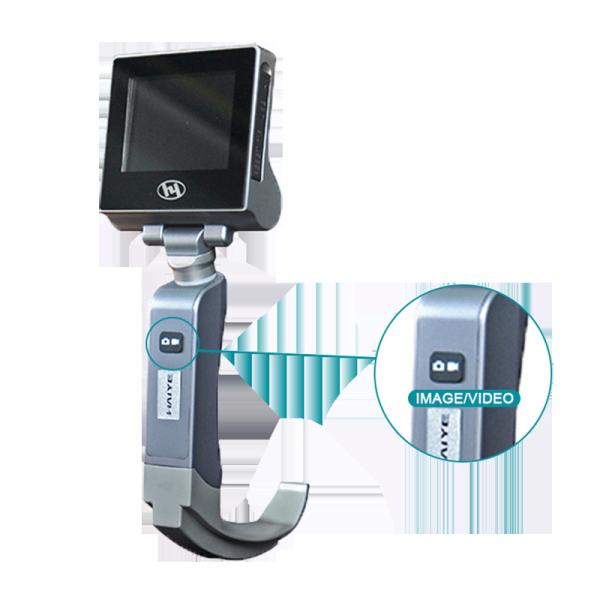

Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area

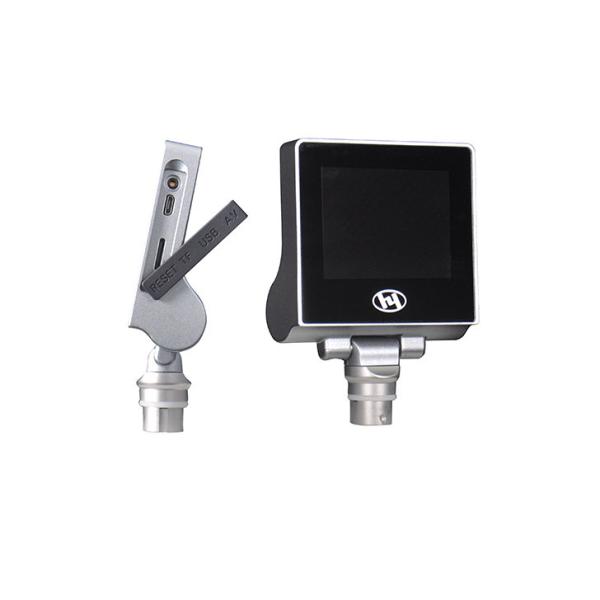

Interface USB,TF(Hot plug)
Roatate angle front to back: 135 º, left to right: 275 º

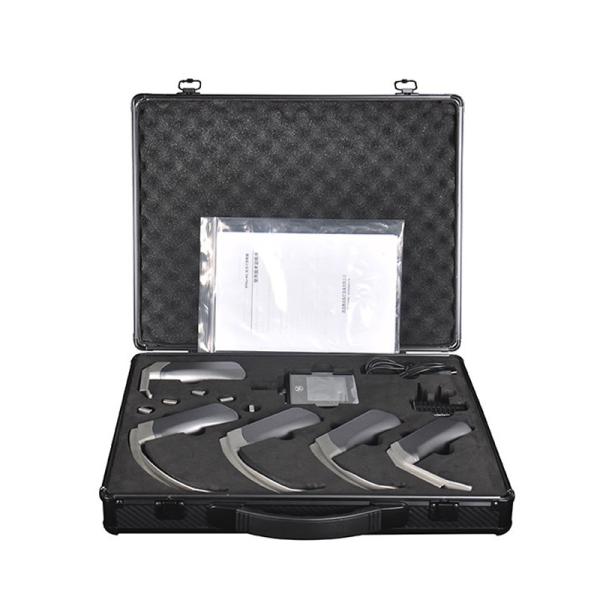

laryngoscope 5 reasuable blades suit for different oral structure

Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

5 Resuable Stainless Blades Handheld Video Laryngoscope - Haiye Medical Equipment5 Resuable Stainless Blades Handheld Video Laryngoscope - Haiye Medical Equipment5 Resuable Stainless Blades Handheld Video Laryngoscope - Haiye Medical Equipment

5 Resuable Stainless Blades Handheld Video Laryngoscope - Haiye Medical Equipment


Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.


Welcome to inquiry if you have any interests!

OEM order is acceptable.
