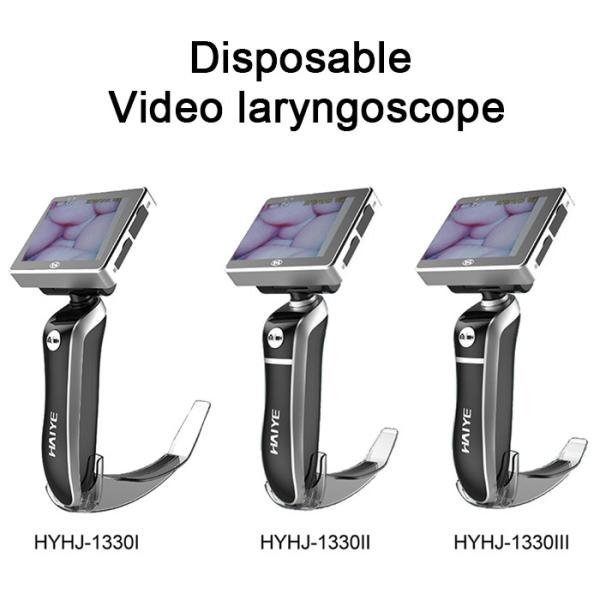

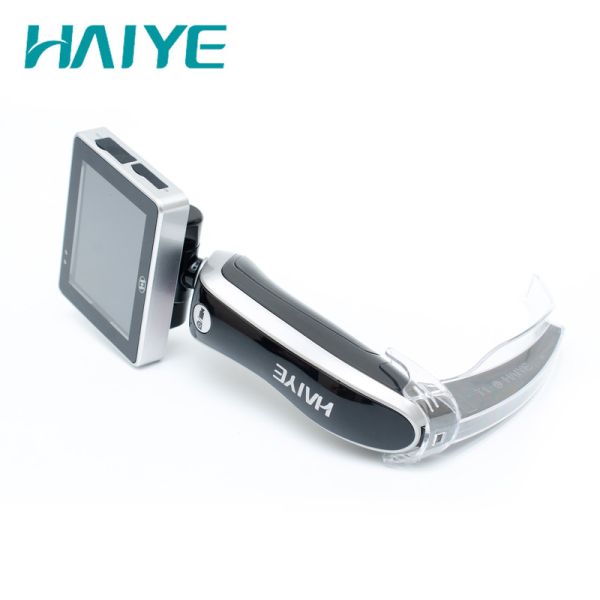

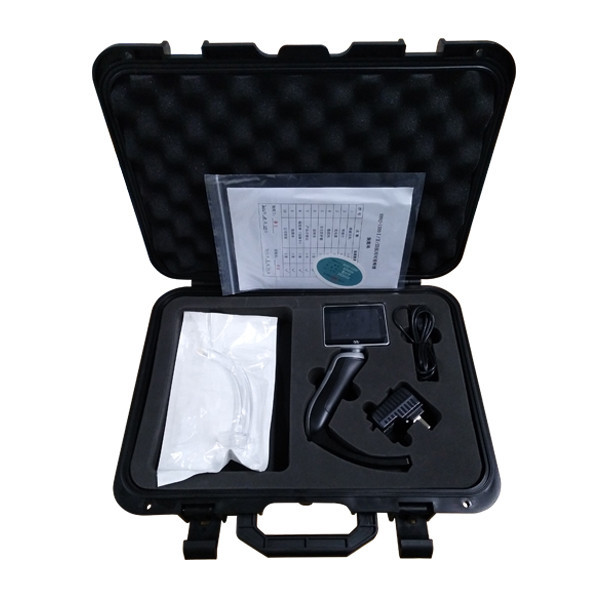

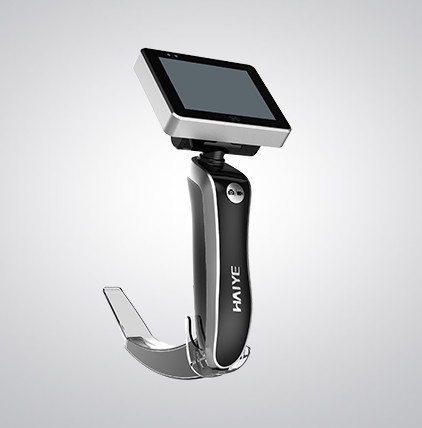

Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments
Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments
Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments
Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments
Specifications
Brand Name :
HAIYE
Model Number :
HYHJ-1330
Certification :
CE,FDA,ISO13485
Place of Origin :
CHINA
MOQ :
1set
Price :
500-1100USD/set
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
5-8work days
Packaging Details :
protective box + carton
Product name :
Disinfection Video Laryngoscope
Display Resolution :
960 x 480
Pixels :
2 million
Viewing angle :
70 ± 2 degree
Depth of field :
3~100mm
Rotate angle :
front to back: 135 º, left to right: 275 º
Battery working time :
continous use ≥ 350 mins
Cycle life of battery :
> 800 times
Warranty :
1 year
OEM service :
available
Description

video laryngoscope Surgical instruments bronchoscopy disposable blade

Characteristics of disposable video laryngoscope

Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments

video laryngoscope Under the newly designed shape, the tracheal intubation time becomes shorter, the success rate is higher, and the esophageal intubation rate is lower

Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments

With the newly designed shape, a safe distance can be maintained between the operator and the patient, reducing contact with respiratory secretions, blood and vomit, and reducing cross infection

Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments

Under the newly designed appearance shape, the viewpoint moves forward, without the need of the three-axis line, and the operation range of the head and neck is small, which is suitable for cervical spine injury cases

Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments

Technical Index

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Ratate angle front to back: 135 º, left to right: 275 º
laryngoscope blades 3 different types disposable blades,aseptic packaging for single use
Adapter Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C

With the newly designed shape, less manipulative force is required, the patient is less injured, and the hemodynamics become more stable


Disposable Blade Video Laryngoscope Bronchoscopy Surgical Instruments

Welcome to inquiry if you have any interests! Looking forward to your email

OEM order is acceptable.

Product tags

macintosh laryngoscope blade

,

blade laryngoscope

,

laryngoscope blade
