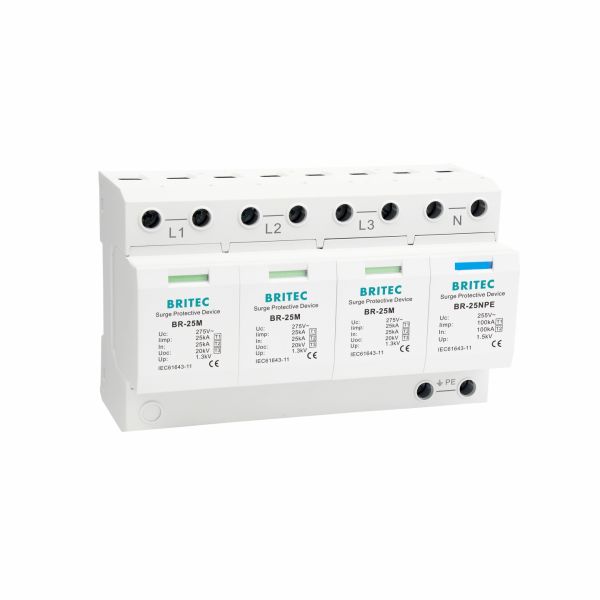

BR-25M 3+1 150V 275V 320V 440V Surge Protective Device Surge type 1 surge protection SPD Supplier three phase power surge protector Überspannungsableiter
BR-25M 3+1 150V 275V 320V 440V Surge Protective Device Surge type 1 surge protection SPD Supplier three phase power surge protector Überspannungsableiter
BR-25M 3+1 150V 275V 320V 440V Surge Protective Device Surge type 1 surge protection SPD Supplier three phase power surge protector Überspannungsableiter
BR-25M 3+1 150V 275V 320V 440V Surge Protective Device Surge type 1 surge protection SPD Supplier three phase power surge protector Überspannungsableiter
Specifications
Brand Name :
BRITEC
Model Number :
BR-25M 3+1
Place of Origin :
China
Certification :
TUV/CB/CE/ROHS/ISO9001
MOQ :
10PCS
Packaging Details :
carton
Delivery Time :
15 days after receipt of deposit
Payment Terms :
TT
Supply Ability :
1000000 per month
Product Structure :
Pluggable
Iimp :
25kA
Protection Level :
Type 1+2
Weight :
1kgs
Operating Temperature :
-40°C To 80°C
One pole Product Width :
36mm
Enclosure Material :
Thermolplastic UL94-V0
Rated Voltage :
150V/275V/320V/440V
Name :
three phase power surge protector
Description

BR-25M 3+1 150V 275V 320V 440V Surge Protective Device Surge type 1 surge protection SPD Supplier three phase power surge protector ÜberspannungsableiterBR-25M 3+1 150V 275V 320V 440V Surge Protective Device Surge type 1 surge protection SPD Supplier three phase power surge protector Überspannungsableiter

Product characteristics:

Specification BR-25M 150 3+1 BR-25M 275 3+1 BR-25M 320 3+1
SPD classification according to EN61643-11 Type 1 + 2 + 3 Type 1 + 2 + 3 Type 1 + 2 + 3
SPD classification according to IEC61643-11 Class I + II + III Class I + II + III Class I + II + III
Nominal operating voltage Un 120V/240V(50/60Hz) 230V/400V(50/60Hz) 250V/440V(50/60Hz)
Max. continuous operating a.c. voltage Uc (L-N/N-PE) 150V/255V(50/60Hz) 275V/255V(50/60Hz) 320V/255V(50/60Hz)
Lightning impulse current (10/350μs) Iimp (L-N/N-PE) 25kA/100kA 25kA/100kA 25kA/100kA
Total discharge current (10/350μs) Itotal 100kA 100kA 100kA
Nominal discharge current (8/20μs) In (L-N/N-PE) 25kA/100kA 25kA/100kA 25kA/100kA
Max. discharge current (8/20μs) Imax (L-N/N-PE) 120kA/200kA 120kA/200kA 120kA/200kA
Quantity of electric charge (L-N, N-PE) Q 12.5As, 50As 12.5As, 50As 12.5As, 50As
Specific energy (L-N, N-PE) W/R 156kJ/Ω, 2500kJ/Ω 156kJ/Ω, 2500kJ/Ω 156kJ/Ω, 2500kJ/Ω
Voltage protection level Up (L-N/N-PE) ≤0.8kV/≤1.5kV ≤1.3kV/≤1.5kV ≤1.3kV/≤1.5kV
Short-circuit current rating a.c. Isccr (L-N/N-PE) 25kA rms/100A rms 25kA rms/100A rms 25kA rms/100A rms
Max. backup fuse 200A gG 200A gG 200A gG
Temporary overvoltage TOV-withstand UT(L-N) 180V/5sec. 335V/5sec. 400V/5sec.
Temporary overvoltage TOV-safe failure UT(L-N) 230V/120min. 440V/120min. 520V/120min.
Temporary overvoltage TOV-withstand UT(N-PE) 1200V/200ms 1200V/200ms 1200V/200ms
Leakage current Ipe None None None
Response time tA ≤25ns/≤100ns ≤25ns/≤100ns ≤25ns/≤100ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state/fault indication green/red green/red green/red
Cross-section area (Min.) 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20
Order Code B17208 B18163 B17221
Order Code (With remote signaling) B17209 B18164 B17222

Features:

The surge arrestors BR-25M meet the Class I and Class II requirement class according to IEC 61643-11.

Labeled connections.

Electrical surge protector work by diverting the extra energy in the electrical surge away from the main circuit, usually to “earth”.

Surge protection devices (SPD) which is connected at the main distribution board is constantly monitoring the supply voltage.

Application:

These devices protect low-voltage consumer systems from overvoltage.

Technical Parameters:

Weight 1kgs
Usage Low Voltage
Application Commercial/Industrial
OEM/ODM YES
One pole Product Width 36mm
Product Structure Pluggable
Rated Voltage 150V/275V/320V/440V
Enclosure Material Thermolplastic UL94-V0
Operating Temperature -40°C To 80°C
Protection Level Type 1+2

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

DC (pv, solar) surge protection device.

Network surge protection device

LED Lighting Surge Protection

Britec Imp. & Exp. Wenzhou Co., Ltd. was established in 2003. Britec is a professional surge protective devices (SPD) manufacturer who design and manufacture surge protection devices for power protection, data protection, PV protection etc.

Britec owns in-house laboratory, the lab has 100kA 10/350µs lightning impulse generator, 25kA 10/350µs impulse generator and 120kA 8/20µs generator, 1.2/50µs 20kV combination generator, TOV test station and other test equipment.

The company carries ISO9001, ISO45001 , ISO14001 management system. Various products are TUV, CB CE, RoHS, certified.

Britec has long business relationship with European customers and well experience working with multi-national companies.
