7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
Specifications
Brand Name :
BRITEC
Model Number :
BR-7M 275 2P
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
30 days after payment
Packaging Details :
EXPORT PACKING
Certification :
TUV/CB/CE
Operating Temperature Range :
-40 to +80 Deg.
Standards :
IEC 61643:11 , IEC 62305
Maximum Operating Voltage :
275V
Poles Number :
2P
Classification :
Type B+C
In :
20kA (8/20us)
Max Discharge Current :
50kA
OEM&ODM :
Welcome
Color :
White
Un :
230/400 Vac/50(60)Hz
Description
7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Description:

• Class I+II / Type 1+2 surge protective devices.
• Low voltage protection level.
• For using in the lightning protection zones concept at boundary 1-2.
• DIN-rail mounting configuration.
• The core parts are metal oxide vristor components with high discharge capacity.


7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Characteristics:



 BR-7M 275 2P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage Uc 275V
Lightning impluse current (10/350us) Iimp 7kA
Nominal discharge current (8/20us) (L-N / N-PE) In 20kA
Max. discharge current (8/20us) (L-N / N-PE) Imax 50kA
Voltage protection level (L-N / N-PE) Up ≤1.3kV
Response time (L-N / N-PE) tA ≤25ns
Operating temperature range Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material Thermoplastic UL94-V0

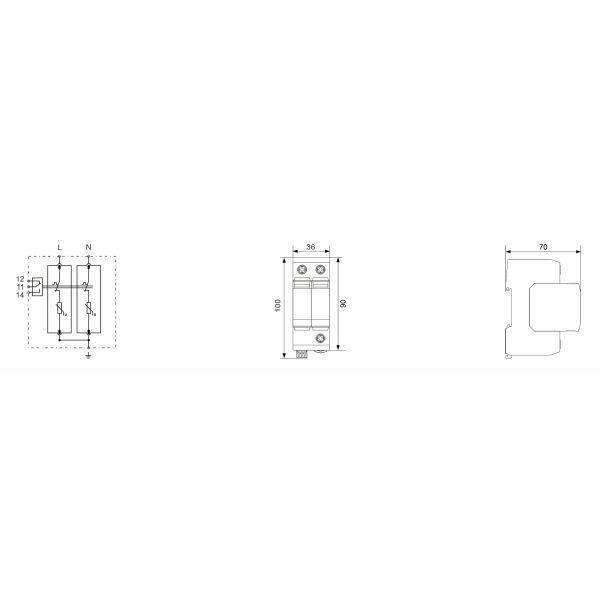

Dimension:
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Features:


+ High arresting capacity up to 7 kA (10/350μs)
+ Surge capacity (8/20μs): 50kA
+ Visual status display
+ Pluggable module for easy replacement
+ Available with optional remote signaling
+ Meet both standards of UL 1449-4th and IEC 61643-11:2011
+ Vibration-proof
+ Protecting low voltage equipment from surge damages.
+ Combination arrestors for buildings with lightning protection
+ (Class B+C) for TN-S power supply system.
+ Simple standard din rail mounting
+ Quick response
+ Labelled connections
+ Double thermal disconnector devices, providing reliable protection.
+ Usable in systems with lightning protection class 1+2

When to use lightning arresters?

Lightning arresters are designed to prevent lightning or high surges ruin your valued equipment. It can be used in protecting the likes of: Energy supplies, Building installation equipment, Telecommunications, Wind power, Machine-building, Datacenters.

Our certifications:

7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting

Logistics & payment:

7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting

FAQ:

Q1: Are you the manufacturer factory or trading company?
A: We are the manufacturer with professional produce experience on SPD more than 21 years.

Q2: Where is your factory located?
A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: How long is the delivery time? What's your fast delivery time?
A: According to quantity, it would be 15-30days after comfimation of payment.

Q4: How to agent yours products?
A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: How should I pay for my order ? what is the procession of this purchase?
A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
