25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Specifications
Model Numbers :
BR-25M 4P
Place of Origin :
Wenzhou
Brand Name :
BRITEC
Response time :
25ns
MOQ :
15PCS
EN type :
T1
Model Number :
BR-25M 4P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
15 Piece/Pieces
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
thunder surge protection device
Configuration :
AC 275V
Description

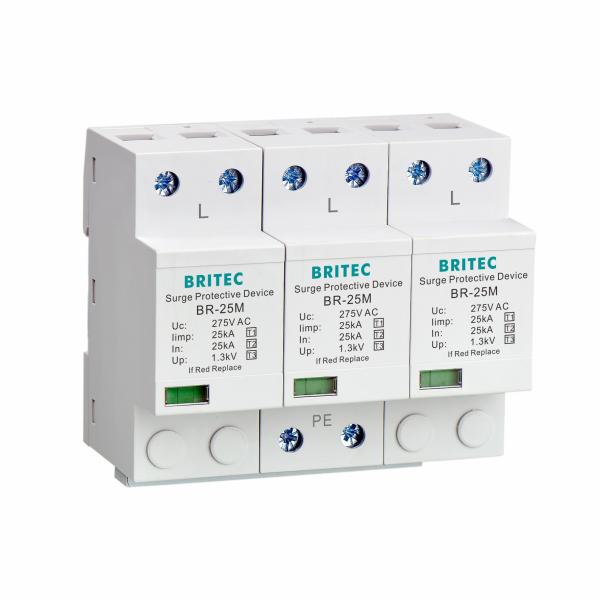

BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD Class 1 Pluggable
Product Overview

25kA surge arrester Type 1 thunder surge protection device power strip protector designed for industrial applications and lightning protection systems.

Key Features
  • Type 1 SPD capable of discharging lightning current with waveform 10/350μs
  • Designed for installation in primary distribution boards at the origin of electrical installations
  • Must be used in conjunction with coordinated Type 2 devices for complete protection
  • Essential for installations with lightning protection systems
Technical Specifications
Max. continuous operating a.c. voltage (Uc) 275V
Lightning impulse current (10/350μs) (Iimp) 25kA
Nominal discharge current (8/20μs) (In) 25kA
Maximum discharge current (8/20μs) (Imax) 100kA
Voltage protection level (Up) ≤1.3kV
Response time (tA) ≤25ns
Max. backup fuse 315A
Operating temperature range (Tu) -40℃ to +80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards IEC 61643-11, EN 61643-11
Product Dimensions
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Applications

Application-optimized and prewired combined lightning current arrester. Particularly useful in high lightning density areas where the risk of heavy surge current or direct strikes is high (e.g., buildings equipped with lightning rods).

Certifications

Our company maintains ISO9001, ISO45001, and ISO14001 management systems. Various products are TUV, CB CE, RoHS certified.

25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Company Information

Wenzhou Britec Electric Co., Ltd. was established in 2003 and is located in Yueqing, Zhejiang, China. We specialize in research and development of surge protection devices. Our product range includes Type 1, Type 2, and Type 3 surge protection devices, BR PV SPDs, and SPDs for data applications, offering the market high-quality surge arresters.

With 18 years of experience in research, development, and production of surge protection products, we provide a 5-year warranty on our devices.

25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Production Line
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications 25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Laboratory Equipment
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications 25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications 25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Shipping
25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer specialized in surge protection products and trade our products directly with clients.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. We can customize materials, colors, and styles. Minimum order quantities will be advised during discussion.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your specifications.
Q: What's your MOQ?
A: If we have products in stock, there is no minimum order quantity. For production orders, we can discuss MOQ based on your exact requirements.
Q: Which payment forms do you accept?
A: We accept T/T, Western Union, PayPal, and other convenient and swift payment methods.
