12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
Specifications
Model Number :
BRGI-2L-12
Relative humidity :
≤95％
Brand Name :
BRITEC
Certification :
CE
Place of Origin :
CN;JIA
MOQ :
20 Piece/Pieces
Payment Terms :
T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
Shipped in 15-30 days after payment
Packaging Details :
EXPORT PACKING
Low loss :
0.3 dB
Temperature Range :
-55℃~155℃
Function :
Lighting Protection
Item Name :
Data/Signal Line Protection
Packing unit :
1 pc
Description

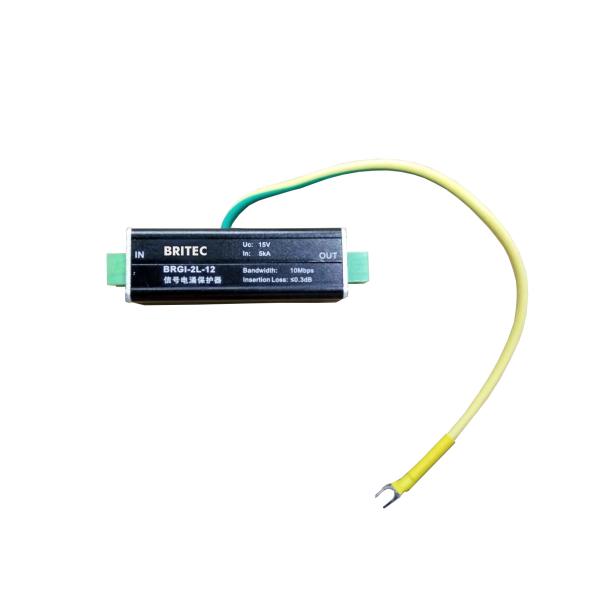

BRGI-2L-12 Network Surge Protective Device Signal Surge Protector
Product Overview

BRITEC is a professional AC & DC surge protection device (SPD) manufacturer offering OEM/ODM services. Our products are approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012 standards.

This network surge protective device includes 100M Ethernet network lightning arrester and Gigabit Ethernet network lightning arrester. It is suitable for lightning surge or electrostatic protection of network switches, network cameras, and other important equipment transmitted by wired network.

Shipping Information
  • Shipment port: SHANGHAI/NINGBO
  • By Air or by Sea for batch goods, Airport/Port receiving
  • Customers specifying freight forwarders or negotiable shipping methods
Product Features
  • Core components adopt famous brands with reliable quality
  • Residual low voltage
  • Simple installation and convenient maintenance
Technical Specifications
Test standards IEC 61643-21
Nominal voltage Un 12V
Max. continuous operating d.c. voltage Uc 15V
Max. continuous operating a.c. voltage Uc 11V
Nominal current IL 0.5A
C2 Nominal discharge current (8/20us) per line In 5kA
Voltage protection level [line-line] Up ≤40V
Voltage protection level [line-PG] Up ≤600V
Response time [line-line] tA ≤1ns
Response time [line-PG] tA ≤100ns
Operating temperature range Tu -40℃…+80℃
Connection input / output Terminal Block
Bandwidth 10 Mbps
Insertion Loss ≤0.3dB
Enclosure material Aluminium alloy
Degree of protection IP20
Product Images
12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
Applications
  • Protect expensive equipment against surges and transients entering a building on exposed transmission lines
  • Protect electrical devices from voltage spikes
  • Protect high-speed communication network from lightning over-voltage, transient over-voltage and static discharge
Advantages
  • Fast energy absorption when over-voltage occurs
  • Advanced manufacturing process
  • Excellent performance on discharge current
  • Fast response time
  • Professional manufacturer
Factory Overview
12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
Certifications
12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection
Frequently Asked Questions
Q1. Are you a trading company or manufacturer?
A: Manufacturer with factory!
Q2. What kinds of products do you produce?
A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning arrester, etc.
Q3. Is customized available?
A: Yes, please offer your required specs.
Q4. Do you accept OEM service?
A: YES!
Q5. What's your Delivery Time?
A: Normally 15-30 days
