BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Specifications
Type :
TUV/CE/ROHS approved standard
In :
50kA
Keyword :
lightning protection
Working conditions :
Temperature: -40 to 85℃
MOQ :
20 Piece/Pieces
Condition :
100% Original
Brand Name :
BRITEC
Model Number :
BR-50GR 385 4P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
surge voltage protector
Name :
T1 Power Surge Protective Device
Standard :
IEC Standard
Waveform :
10/350
Up :
1.8kV
Description

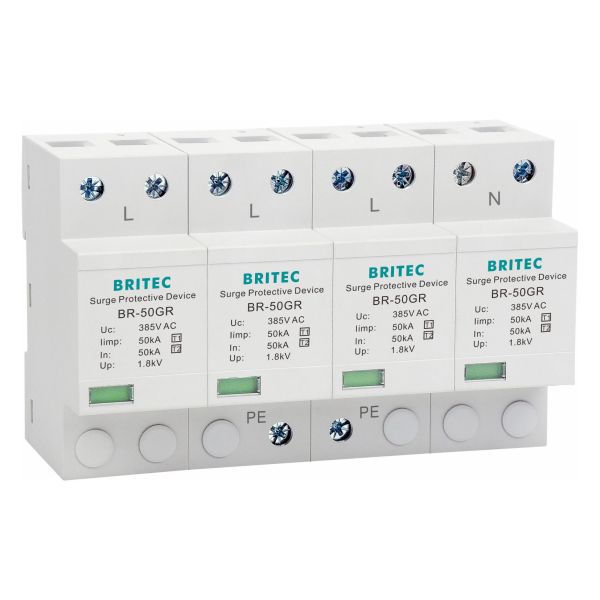

BRITEC 50GR AC Lightning Protection Device - Surge Protection Device SPD
Product Overview

50kA three phase Type 1 Surge Protection Device TUV certificated BR-50GR 3+1

BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also providing OEM/ODM service. Our products are approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012 standards.

Technical Specifications

Available configurations:

  • T1, Class B, Class I, Iimp(10/350μs): 25kA/50kA
  • T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 12.5kA/25kA
  • T2, Class C, Class II, Imax(8/20μs): 20/40/80/100/120/200kA
  • T3, Class D, Class III, Uoc(1.2/50μs): 10kV, In(8/20μs): 5kA, Imax(8/20μs): 10kA

AC SPD voltage ratings:

  • Nominal voltage (Un): 60Vac, 120Vac, 230Vac, 400Vac, 480VAc, 690Vac, 900Vac
  • Max continuous operating voltage (Uc): 75Vac, 150Vac, 275Vac, 320VAc, 385Vac, 440Vac, 600Vac, 750Vac, 1000Vac
Product Features
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Detailed Specifications
Specification BR-50GR 4P
Item name Surge Arrester
SPD classification according to EN61643-11 Type 1
SPD classification according to IEC61643-11 Class I
Max continuous operating a.c. voltage Uc 385V
Lightning impulse current (10/350μs) Iimp 50kA
Nominal discharge current (8/20μs) In 50kA
Voltage protection level Up 1.8kV
Follow current extinguishing capability a.c. Ifi 3kA rms
Max. backup fuse 500A gG
Response time tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃ to +80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0
Dimensions
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Applications
  • Suitable for TT and TN-S systems
  • Used in industrial systems and buildings with external lightning protection of Classes I to IV
  • For protection of low voltage distribution systems against direct lightning strike into overhead power supply lines or external lightning protection systems
  • Can be used in standard distributor housing
Product Advantages
  • Competitively priced against other brands
  • High current capacity
  • High speed action response time
  • Overheat protection
  • High reliability
  • Large flow capacity, low residual pressure
  • Rigorous structure, convenient installation, simple maintenance
Our Services
  • 25 years global leading professional manufacturer of electrical surge arresters
  • All products well packed before shipping
  • Standard packaging with custom packaging options available
  • Faster delivery times
  • Individually tested prior to shipment
  • 5 years limited warranty
Installation Guidelines

• Usually installed in the low-voltage main distribution cabinet of building incoming lines

• During normal use, especially in thunderstorm seasons, regularly check the grounding system to maintain optimal protection performance

Company Information

Wenzhou Britec Electric Co., Ltd. is located in Yueqing city and is dedicated to the development, manufacture, marketing, and service of low voltage surge arrester products. The company specializes in producing SPDs with 25 years of experience in the lighting and surge protection field.

BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Our Factory
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD

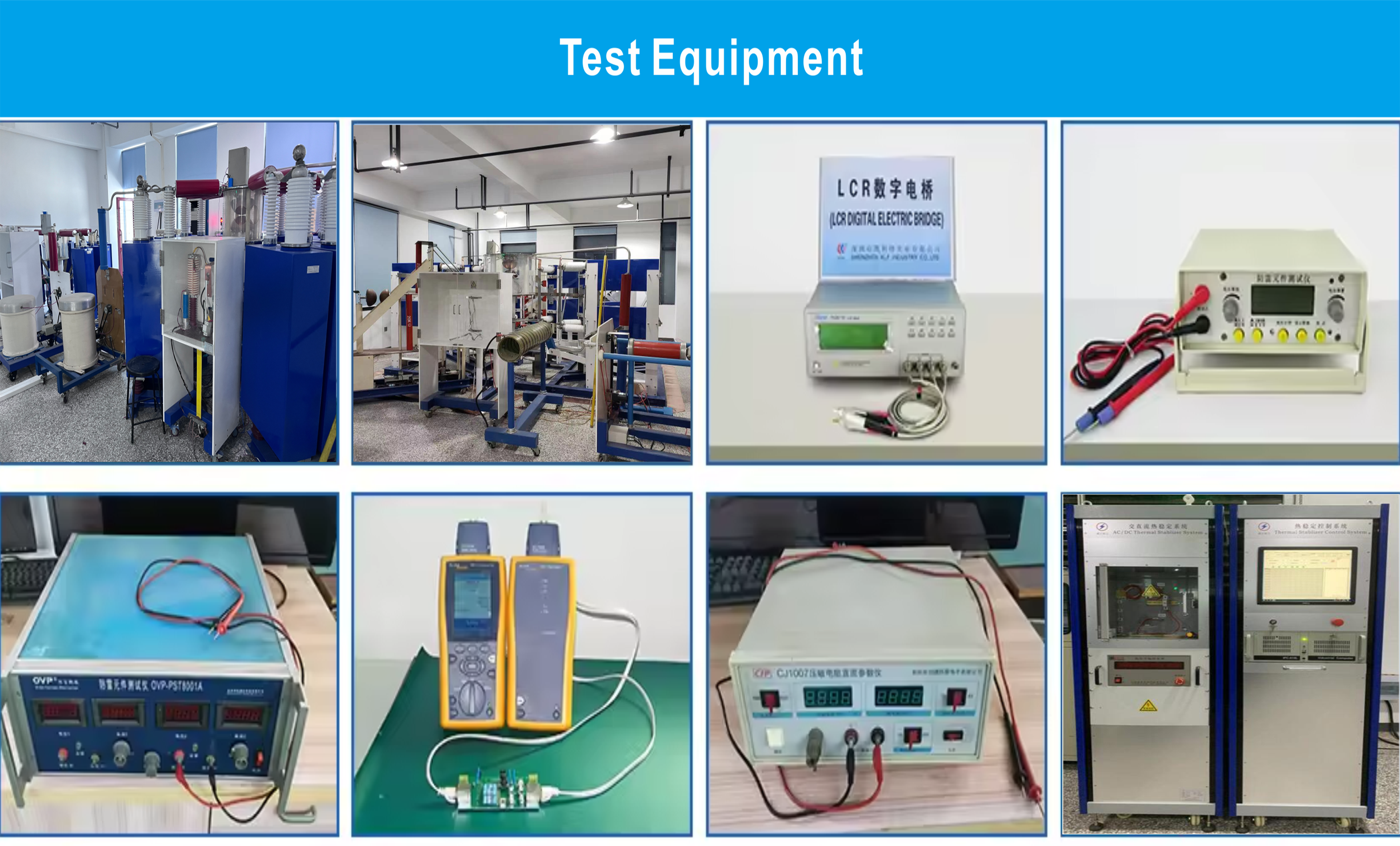

Production Process
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Certifications
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Transportation
BRITEC 50kA TUV/CE/ROHS Approved Surge Protection Device with 10/350 Waveform Lightning Arrestor SPD
Frequently Asked Questions
Q1. Does your products listed for safety?
A: Yes, we have TUV, CE, CB these certifications.
Q2. What is the lead time for sample and mass order?
A: Samples is 10 days, and 20 days for mass order.
Q3. Do you accept the OEM / ODM order?
A: Yes.
Q4. Do you have MOQ for order?
A: General our MOQ is 20 piece, but we can accept 1 piece as sample order.
Q5. Can we visit your factory before we cooperate with you?
A: Of course. Welcome to your visiting to our factory.
