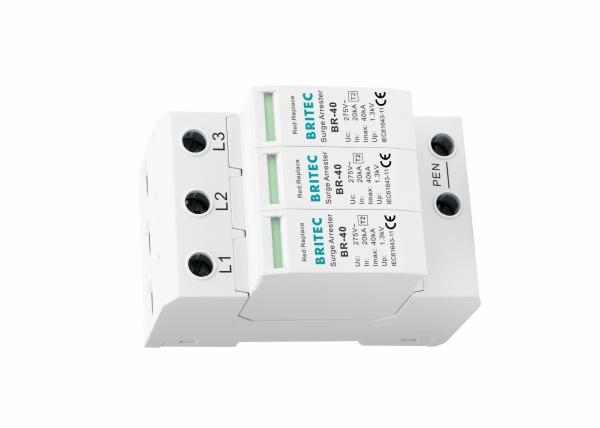

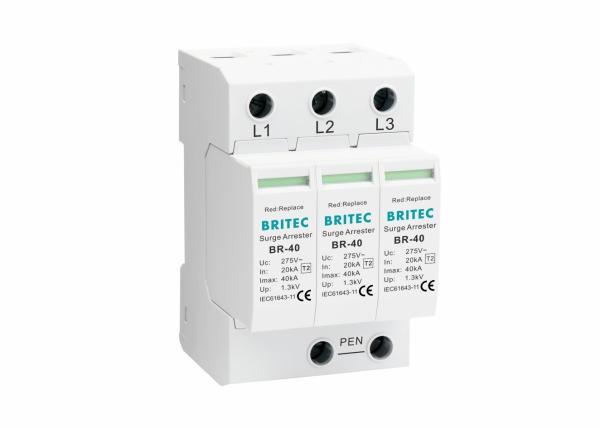

40KA Power Pluggable AC Type 2 Surge Protection Device
40KA Power Pluggable AC Type 2 Surge Protection Device
40KA Power Pluggable AC Type 2 Surge Protection Device
40KA Power Pluggable AC Type 2 Surge Protection Device
Specifications
Brand Name :
BRITEC
Model Number :
BR-40 3P
Certification :
TUV/CB/CE
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
500000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Test standards :
IEC 61643-11 / EN61643-11
Uc :
150V / 275V / 320V / 385V / 440V
In :
20kA
Imax :
40kA
Material :
Thermoplastic UL94-V0
tA :
≤25ns
Mounting on :
35mm Din rail
Tu :
-40℃...+80℃
Minimum order quantity :
100pieces
Packaging detail :
Carton packaging
Description

Type 2 Imax 40KA Power Surge Protector Features:

• Type 2 surge protection ac spd china surge arrester
• In : 20 kA
• Imax : 40 kA
• UL1449 ed.4
• Visual indication of Varistor status - Healthy/Replace.
• BR-40 Series SPDs are designed to protect electric and sensitive equipment against induced surge.
• Remote signalling contact of Varistor status.
• This surge protective device spots its capacity to withstand impulse current with 8/20µs wave form and low voltage protection level.
• Replaceable modules.
• This SPD is installed at the sub distribution board of this installation, like transformer room, distribution cabinet, and switch cabinet.
• Complies with EN 61643-11.
• 35 mm rail (EN 60715) mounting.

Type 2 Imax 40KA Power Surge Protector Product Details:

BR-40 150 3P BR-40 275 3P BR-40 320 3P BR-40 385 3P BR-40 440 3P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us) In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs) Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA Up ≤0.6kV ≤1kV ≤1.2kV ≤1.3kV ≤1.5kV
Max. backup fuse 100A gG 100A gG 100A gG 100A gG 100A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20

Technology characteristic:

40KA Power Pluggable AC Type 2 Surge Protection Device

Type 2 Imax 40KA Power Surge Protector Description:
• BR-40 3P AC lightning protection devices, for three-phase AC power of the second level (C level) lightning over-voltage protection.
• Visual & remote status indication
• This device is tested to meet Class II requirements.
• Replaceable module
• Application system: TN-C power supply system.

Installation:

  • • The line of surge arresters includes a full range of compact protectors for installation on DIN rail
    • The SPD need not to be adjusted after installed according to requirement.
    • It can automatically protect the power network after proper installation
    • In case of failure, please replace the invalid element on time
Standards:
- IEC61643-1:2005; EN61643-11:2007
- Housing FRNC-UL94 V-0
- GB18802.1-2002
- YD/T1235.2-2002

Our Services:

  • • 21 years global leading profession manufacture of electrical products surge arrester
    • All products will be well packed before shipping
    • Standard packaging, and you can also tell us your own requirements on packaging
    • Faster delivery
    • Individually Tested Prior to Shipment

Company information:

Wenzhou Britec Electric Co., Ltd is ISO and CE certificated manufacturer, we are suppliers of SPD. We are specialized in low voltage surge protection device. Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems. Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.

40KA Power Pluggable AC Type 2 Surge Protection Device

Certificate:

40KA Power Pluggable AC Type 2 Surge Protection Device

Shipping:

40KA Power Pluggable AC Type 2 Surge Protection Device
