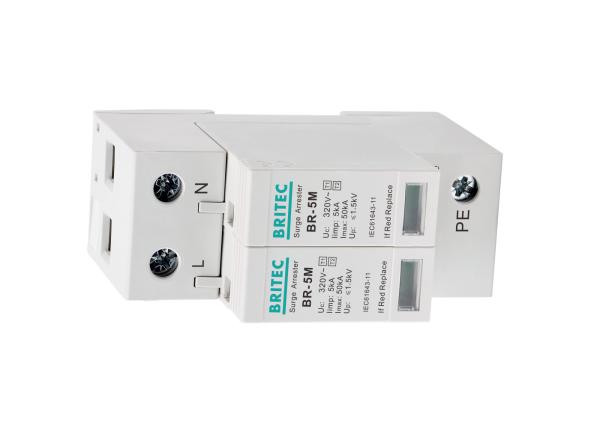

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount
BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount
BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount
BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount
Specifications
Brand Name :
BRITEC
Model Number :
BR-5M 320 2P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
T/T
Supply Ability :
100000 Piece/Pieces Month
Delivery Time :
Shipped in 30 days after payment
Packaging Details :
EXPORT PACKING
Number Of Poles :
2
Class :
B+C
Voltage :
320V
Max Discharge Current :
50kA
Response time :
25 ns
Method of assembly :
DIN rail 35 mm
Phase :
Single Phase
Material :
Thermoplastic UL94-V0
Classification :
Type B+C
Protection Level :
IP 20
Description
BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD Feature:

• 2 Pole
• The discharge current of each signal module can be up to 5kA (10/350μS).
• AC Surge Protective Device T1+T2
• It is with 35mm electrical lead rail, which make it easy for installation.

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD Product Details:


 BR-5M-320 2P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage Uc 320V
Lightning impluse current (10/350us) Iimp 5kA
Nominal discharge current (8/20us) In 20kA
Max. discharge current (8/20us) Imax 50kA
Voltage protection level Up ≤1.5kV
Response time tA ≤25ns
Operating temperature range Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material Thermoplastic UL94-V0
OEM Yes


Dimension:

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD Application:

• This product is especially suitable for application in the A grade Lightning Protection in high risk area of lightning strike.

• It could be installed in 320V AC power system.

Company information:

Wenzhou Britec Electric Co., Ltd. was founded in 2003. Britec is a SPD manufacturer in Yueqing, Zhejiang, China. Britec focuses on low voltage surge arrester development and design for 21 years. Britec products are widely used in electric power, communication, construction and other industries. It is favored by many foreign customers.

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount


Certification:

Our products are passed the inspection standards included CE & TUV with 100% quality.

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount

Our advantage:

• With over 21 years experience of producing products.

• Experienced technichal support team.

• 5 years warranty for all the goods from us.

• We could provide OEM/ODM service for all kinds of customers. Please contact us for details.

• Our proffesional support team will service onlin 24 hours for customers. If there's any question, please contact with our sales.


Payment & Shipping:

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail MountBR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount

FAQ:

Q1. Do you provide a cargo warranty?
A: Yes, we provide a warranty for all goods for 5 years.

Q2. Can you provide technical support?
A: We have been in this field for more than 21 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.

Q3. What is your MOQ?
A: We provide you with a small order quantity for each item, depending on your specific order!

Q4. How do you make a long-term relationship with our business?
A: We maintain good quality and competitive prices to ensure the interests of our customers.
