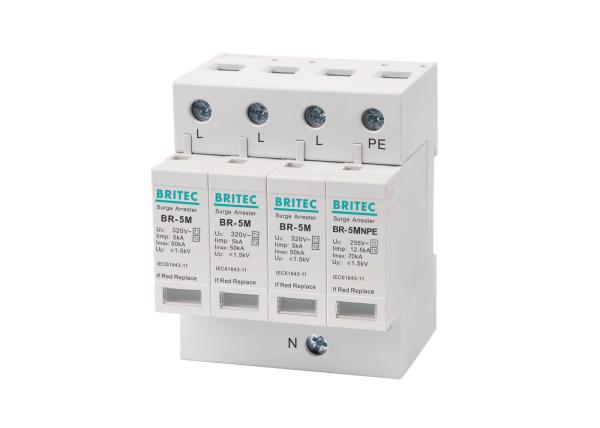

SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage
SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage
SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage
SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage
Specifications
Brand Name :
BRITEC
Model Number :
BR-5M-320 3+1
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
30 days after payment
Packaging Details :
EXPORT PACKING
Application :
AC System
Operation Voltage :
Low Voltage
Material :
Thermoplastic
Imax :
50kA
IEc/En Category :
Type 1 and Type 2, Class B+C
Transport Package :
by Sea/Air/Express
HS Code :
8536300000
Installation :
DIN Rail
Size :
Small
Shape :
Cuboid
Description

SPD Type 1 And Type 2 Surge Protection Product Description:


• Surge Protection Device was designed and manufactured, complying standard GB/T18802.1 IEC/EN 61643-11 , Rated voltage 275V~,320V~,Maximum discharge current 50kA,High Energy Varistor, high effective for lightning protection.
• Low voltage SPDs are modular to be easily installed inside LV switchboards.
• AC Surge Protection Device SPD Type 1 2, T1 T1, B C, I II, Iimp 5kA,lmax 50kA is designed to be the best possible solution for protecting service entrances at industrial sites, particularly those with existing lightning protection systems or mesh cage applications.
• Devices have indicators to advise end of life of the device.
• This sort of surge protection can protect all electrical installations from lightning strikes by discharging the current generated by a lightning surge and preventing its spread to the equipment.


SPD Type 1 And Type 2 Surge Protection Characteristics:



 BR-5M-320 3+1
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage Uc 320V
Lightning impluse current (10/350us) Iimp 5kA
Nominal discharge current (8/20us) (L-N / N-PE) In 20kA / 40kA
Max. discharge current (8/20us) (L-N / N-PE) Imax 50kA / 70kA
Voltage protection level (L-N / N-PE) Up ≤1.3kV / ≤1.5kV
Voltage protection level 5kA (L-N / N-PE) Up ≤1.0kV / ≤1.5kV
Response time (L-N / N-PE) tA ≤25ns / ≤100ns
Operating temperature range Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material Thermoplastic UL94-V0


Dimension:


SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage

Working principle:

At normal operating voltages, the SPDs are in a high-impedance state and do not affect the system. When a transient voltage occurs on the circuit, the SPD moves into a state of conduction (or low impedance) and diverts the surge current back to its source or ground. This limits or clamps the voltage to a safer level. After the transient is diverted, the SPD automatically resets back to its high-impedance state.

Why need SPD?

Every day, lightning strikes homes and properties somewhere in the world. Any structure in the path of an electrical storm is at risk. While only lasting for a few microseconds, lightning causes a dangerous voltage surge that can destroy your electronic devices. Installing surge protection devices, SPDs, can reduce or even prevent damage to your valuable possessions.

Packing & Delivery:

Inner Packing White box
Outer Packing Brown cartons
Shippping Port Ningbo / Shanghai
Shipping Way Sea shipment / Air shipment / Express


SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage

Payment:

SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage

Company profile:


Wenzhou Britec Electric Co., Ltd. was founded in 2003. Britec is a SPD manufacturer in Yueqing, Zhejiang, China. Britec focuses on low voltage surge arrester development and design for 21 years. Britec products are widely used in electric power, communication, construction and other industries. It is favored by many foreign customers.


SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage


Our certifications:


SPD Surge Protection Device Type 1 and Type 2 with 5kA and 320V Operating Voltage


FAQ:


Q1. Are you trading company or manufacturer?

A1. We are manufacturer.


Q2. Where is your factory located?

A2. Our own factory is located in Yueqing city, Zhejiang, China.


Q3. Do you have any certificates?

A3. Yes,we have TUV, CB, CE and other certifications.


Q4. Can you produce products according to customers' design?

A4. Sure, OEM is always welcome. And we can produce any kinds of SPDs according to your design.


Q5. How do we make a quick response to customer?

A5. Our professional team will reply you online or by email, whatsApp and so on.
