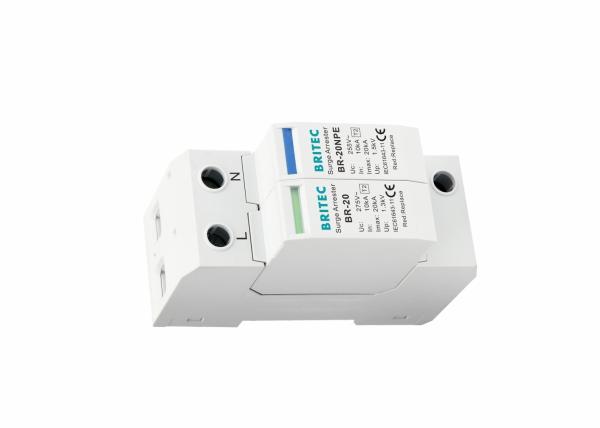

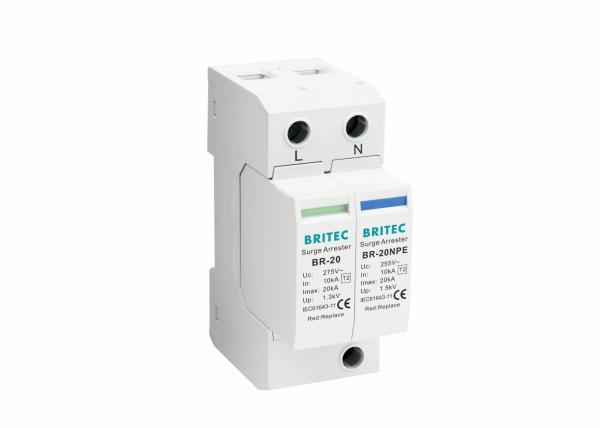

20kA Lightning Protector Surge Protection Devices For Buildings
20kA Lightning Protector Surge Protection Devices For Buildings
20kA Lightning Protector Surge Protection Devices For Buildings
20kA Lightning Protector Surge Protection Devices For Buildings
Specifications
Brand Name :
BRITEC
Model Number :
BR-20 1+1
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
500000 Piece/Pieces Month
Delivery Time :
Shipped in 25 days after payment
Packaging Details :
EXPORT PACKING
Certification :
TUV/CB/CE
Item Name :
Surge protection device
Type :
Ac Surge Protector
Material :
Plastic
Pole number :
1+1
UC :
275V/255V
Imax :
20kA
Brand name :
Britec
Certificate :
TUV/CE/ROHS/ISO9001
Tu :
-40℃-80℃
Description

20kA Lightning Protector Surge Protection Devices Features:

• Protects connected equipment against overvoltage from switching and the secondary effects of lightning strikes.
• Manufacturer & Supplier of Lightning Surge Protection Device for Buildings.
• DIN Rail Mounted Fitting.
• Safe to use.
• Type 2.
• Quality assured.

20kA Lightning Protector Surge Protection Devices Technology characteristic:

Specification BR-20 1+1
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous operating a.c. voltage Uc 275V/255V
Max. discharge current (8/20µs) Imax 20kA
Nominal discharge current (8/20µs) In 10kA
Voltage protection level Up ≤1.3kV/≤1.5kV
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enlcosure material Thermoplastic UL94-V0

SPD device wiring diagram:

20kA Lightning Protector Surge Protection Devices For Buildings

20kA Lightning Protector Surge Protection Devices Product installation notes:

• The SPD is installed at the power incoming end of the main distribution cabinet or distribution box of the building, and is equipped with a 35mm electrical rail. The power must be cut off before installation and no live operation is allowed.
• When installing, SPD should be installed with the fuse of the corresponding specification. Please connect according to the installation diagram, where L phase line, N is zero line, PE is ground line, do not connect wrongly. After the installation is complete, check if the working status is normal.
• During the use of the lightning protection module, the status of the fault display window should be checked and checked periodic.
We can provide products with the same parameter as bussman spd.
Contact us for spd datasheet.

Our Service:


• Factory direct sales, we always offer high quality supplies at very competitive pricing.

• We will always do everything we can to satisfy your needs.

• If you don't see a product that suits your needs, please let us know and we will customed to match your requirements.

Company information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, focuses on specializing in manufacturing SPDs all over the world. After years of perseverance and steady development, we have developed into a leading surge protector manufacturer which has all kinds of professional and technical personel.

20kA Lightning Protector Surge Protection Devices For Buildings

Our factory:

20kA Lightning Protector Surge Protection Devices For Buildings

Certification:

20kA Lightning Protector Surge Protection Devices For Buildings

FAQ:

Q1: Are you a factory or trading company?
A: We’re a manufacturer with export license.

Q2: Can I get an extra discount if I place a big order?
A: Yes. And the final prices are based on the order quantity.

Q3: How can I take the samples?
A: We can provide samples after we received the sample fee and shipping cost.

Q4: How to customize logo?
A: We will follow these steps to help customize your logo:
1, Provide us an CDR form of the logo,
2, Design sketches of your logo in the products,
3, Confirm the details,
4, Confirm the sample and produce it in bulk.

Q5: How do you guarantee the products?

A: We offer 5 years warranty for any of our products.
