Before Gluing Float Glass Washing Machine Compact Space Efficient Power Saving
Before Gluing Float Glass Washing Machine Compact Space Efficient Power Saving
Before Gluing Float Glass Washing Machine Compact Space Efficient Power Saving
Before Gluing Float Glass Washing Machine Compact Space Efficient Power Saving
Specifications
Brand Name :
Hongshun
Model Number :
HS-BL850
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$20,000 to $40,00
Payment Terms :
L/C,T/T
Supply Ability :
5 sets / month
Delivery Time :
50 days
Packaging Details :
film
convey height :
950mm±20 mm
Work width :
850mm (effective maximum 850 mm)
transporting velocity :
1-6m/min (variable frequency stepless adjustable) ,normal operating speed 4m/min
Product Usage :
Flat glass cleaning
Total power :
43.98KW
Product Warranty :
1 year
Description

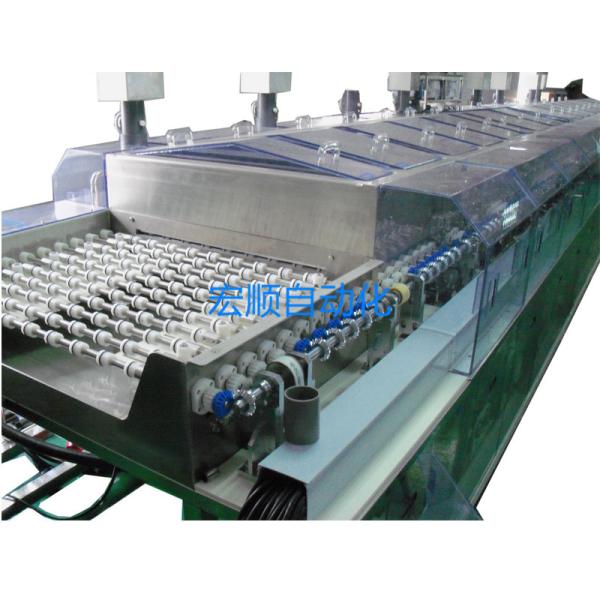

HS-BL850 Flat Glass Roller Brush Cleaning Machine For Glass Cleaning Process Before Gluing

Processing of Flat Glass Roller Brush Cleaning Machine : (attached with system drawings "HS-BL850 glass cleaning machine before gluing"; "pipeline drawing"; "electrical drawing")

Flat glass input → High-pressure spray washing → Air cutting 1 → Plate brushing and water washing for degreasing (2 sets) → Roller brushing and water washing for degreasing (2 sets) → Plate brushing and water washing for degreasing 2 (2 sets) → Roller brushing and water washing for degreasing 2 (2 sets) → Air cutting 2 → DI water spray washing → Pure water roller brushing and water washing (4 sets) → Medium-pressure spray washing → High-pressure spray washing → Pure water washing → Three sets of air knife drying → Material discharge + static elimination

Clean the workpiece

Substrate size: MIN: 200X300mm MAX:730X900mm

Substrate thickness: 0.4 ~3mm

Basic performance of the Flat Glass Roller Brush Cleaning Machine

convey height

950mm±20 mm

Work width

850mm (effective maximum 850 mm)

driving mode

Spiral gear transmission (external transmission)

transporting velocity

1-6m/min (variable frequency stepless adjustable) normal operating speed 4m/min

Direction of flow

Left in and right out (to be determined by the customer), no snake phenomenon is allowed during glass cleaning

Rinse to finish

No scratches, no water stains, no roller marks, no dirt (100 grade clean room / 3000lux), no breakage

Device size

Approximately 9490 (length) x2000 (width) x1350 (height) (mm) (excluding the electric control cabinet and air cabinet)

Resources consumed of the Flat Glass Roller Brush Cleaning Machine

Total power consumption

43.98KW

Total gas consumption

7200L/MIN, pressure 0.6Mpa

Pure water consumption

20~30L/Min (pure water of more than 15 megΩ provided by customer)

Total air extraction

5M3/min (the exhaust system is provided by the customer)

source

3φ 380V±10%　 50Hz

Supply water

Pure water, pressure 0.2MPa

Other designs of the Flat Glass Roller Brush Cleaning Machine

1. Water and electricity saving design

2. Filter system: water, liquid and gas filtration

3. Nozzle pressure adjustment: pressure gauge, ball valve adjustment

4. Frequency converter: main transmission

5. Frequency converter: brush

6. Overtemperature protection: the upper limit of water tank spray liquid temperature design is 50℃

7. Pump protection: high, medium and low liquid protection is designed for the tank

8. Electromagnetic valve: design automatic water replenishment in the middle and high level of the tank
