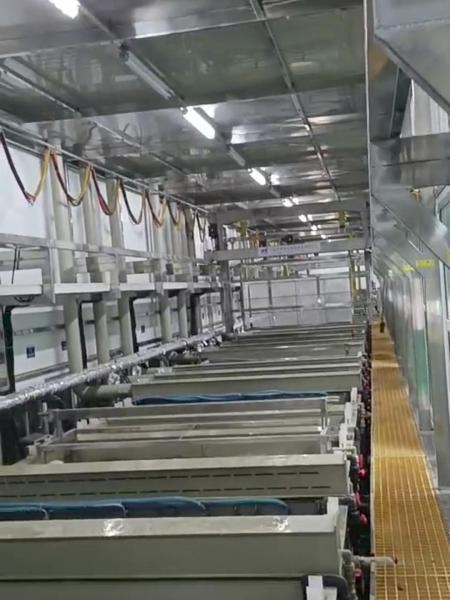

Industrial Automated Passivation System Aluminum Alloy Die Castings Passivation Line
Industrial Automated Passivation System Aluminum Alloy Die Castings Passivation Line
Specifications
Brand Name :
Hongshun
Model Number :
HS-2810STP
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$100,000 to $3000,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
75 days
Packaging Details :
film
Applications :
automotive parts
PLC :
Mitsubishi of Japan
Water pressure :
0.3Mpa
Main power supply :
380±10%/50HZ
Inner tank size :
L815×W820×H1550mm
ultrasonic frequency :
28KHZ
Description

Industrial Automated Passivation System Aluminum Alloy Die Castings Passivation Line

Automatic production line for passivation and film formation of aluminum alloy die-castings


Passivation Line Overview:

Designed for aluminum alloy die - castings, this automatic production line integrates precision cleaning, passivation, and film formation in a single automated system. It features multi - stage ultrasonic cleaning to remove casting residues and oils, followed by a chemical passivation module that forms a dense oxide layer to enhance corrosion resistance. The film formation stage uses advanced technology.


With PLC - controlled processes, the line ensures consistent quality, reducing human error. Its modular design allows easy integration with existing die - casting workflows, ideal for automotive parts, electronics casings, and architectural components. The line complies with international standards (e.g., ISO, ASTM), boosting production efficiency by 40% while minimizing chemical waste.


Keywords: aluminum alloy die - casting passivation line, automatic film formation system, ultrasonic cleaning equipment, anodizing production line.


Process Of Automated Passivation System:

manual feeding ⇒ ultrasonic degreasing No.1 ⇒ ultrasonic degreasing No.2 ⇒ ultrasonic washing No.3 ⇒ passivation No.4 ⇒ ultrasonic pure water washing No.5 ⇒ pure water washing No.6 ⇒ blow water manually ⇒ tunnel furnace drying ⇒ convey to the full inspection platform


Partial parameter description Of Passivation Line:

5. Main supporting system of the equipment

5-1. Single-arm manipulator

quantity

1 set

structure

form

Transmission mode: it adopts gantry robot, sling, polyamide walking wheel, guide rail and motor combination transmission.

Run mode: one basket is grabbed at a time, and one manipulator automatically completes the transfer of the whole cleaning basket frame through the program.

Material: the outer frame and lifting arm are made of SUS304 stainless steel.

Basket transfer time: less than 1 minute, with deceleration buffer function when moving horizontally and descending.

The lifting of the manipulator is driven by a sling and has an anti-reversal function.

The transverse movement adopts polyamide walking wheel + gear and rack guide transmission.

The manipulator is equipped with sound and light alarm device, anti-collision safety protection device and limit device to ensure operation

Safe.

Load: 30~50KG.

Transmission motor brand: Mitsubishi or Xinjie servo

parameter

The speed of rise and fall

5~7m/min (variable frequency speed regulation).

The speed of Transverse

6~12m/min (frequency conversion speed regulation).

function

Pulsating (manual) action, automatic operation, automatic reset system, pause and emergency stop.

For a complete technical solution Of Automated Passivation System, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

Industrial Automated Passivation System Aluminum Alloy Die Castings Passivation Line Industrial Automated Passivation System Aluminum Alloy Die Castings Passivation Line Industrial Automated Passivation System Aluminum Alloy Die Castings Passivation Line


About Us:

We provide solid services to every enterprise with a demand for surface treatment equipment. Our strong core software development team and overall design team for electronic circuits and mechanical appearance can ensure that our equipment remains in a leading competitive position in the industry and meets the usage requirements of a wide range of customers. Our experienced customer service team Professional technology and services can provide you with all-round 24-hour technical consultation and services before, during and after sales, so that you have no worries at all.
