Specifications
Brand Name :
JIEBAO
Model Number :
JB-2015
Place of Origin :
China
MOQ :
10 Sets
Price :
Negotiation
Payment Terms :
TT, LC
Supply Ability :
5000sets per months
Delivery Time :
10-15 work days after received deposit
Packaging Details :
Carton Package
Color :
White/Gray/Black
Load Capacity :
60kg/Levels
Columns Type :
Wall Side & Double Side & End Shelf
Columns :
80x30x2.0mm(LxWxThickness)
Back Panel :
0.5mm/0.6mm/0.7mm
Layer :
0.6mm
Description

Double Side Commercial Steel Racks Hypermarket, Slanted Arms Cold Rolled Steel

Products Catalogue PDF:

Jiabao Heavy Duty Shelves Catalogue 2018.pdf

Advantage:

Raw materials We have long-term stable purchase of steel pipes and steel plates from listed companies such as Anshan Iron and Steel and Baosteel. Good quality and stable supply
Production equipment In 2008, our company eliminated most of the semi-automatic machines and introduced a large number of fully automatic machines, which greatly improved production efficiency
Cleaning of semi-finished products fter 10 cleaning tanks, there are pickling tanks, phosphating tanks and clear water tanks. The 2-hour cleaning process leaves no rust on the surface of the semi-finished product and forms a protective layer of rust. This will make the final product more resistant to rust and less likely to fade
Spraying It adopts fine powder material and advanced automatic spraying line to spray, dry and cool the process for 2 hours. Make the product evenly distributed and smooth

Double Side Commercial Steel Racks Hypermarket, Slanted Arms Cold Rolled Steel

Product Details:

Material Cold Rolled Steel, Q235 or Q195
Load Capacity 65kg/levels
Color White/Gray/Black
Length Size 900mm,1200mm (3',4')
Width Size 450mm, 500mm (18'', 20'')
Height Size 1600mm,1800mm,2000mm,2200mm (5',6',7',7 1/2')
Name Supermarket Rack
Columns Type Wall Side, Double Side
Pegboard Type Middle Type, Buckle Type
Columns 80x30x2.0mm(LxWxThickness)
Pegboard 0.5mm, 0.6mm, 0.7mm
Brackets 2.2mm
Layer 0.6mm (Two bars or Three bars)
Models JB-2015
MOQ 10 sets

Difference:

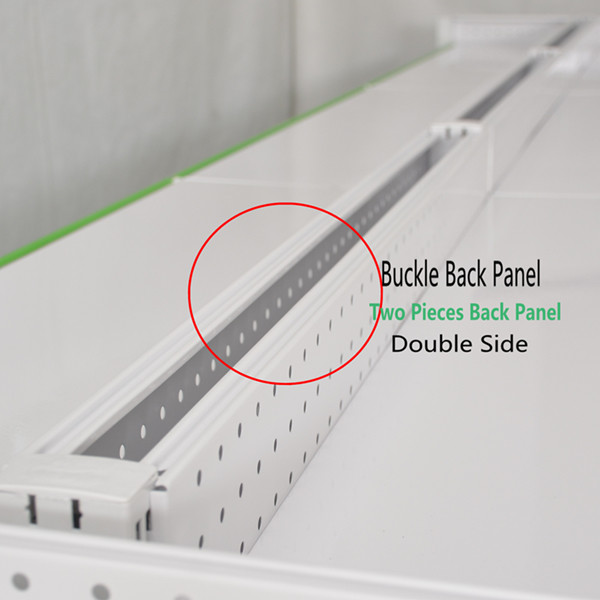

1. Middle Back Panel only one piece back panel for double sided shelves.
2. Buckle Back Panel have two pieces back panel for double sided shelves.
3. The top of Middle Back Panel have uptail to fixture.
4. Buckle Back Panel are used hooks to connect columns.
5. Middel Back Panel are used slot to fixture it.

Characteristics:

1. Layer Part: 450mm-500mm can add to 3 bars; Standard size are 2 bars; Load capacity 65kg/layer

2. Brackets Part: 5 hooks design, better to Scattered load weight. Brackets can slope 15°-30°Each layer will be match 26mm PVC Price Tags.

Plz tell us the following information for price.


1.Length*width*height of each shelf
2.Quantity of shelf
3.Quantity of main shelf and side shelf respectively
4.Loading capacity of each layer
5. Layout drawing of supermarket shelf equipment for reference.
