Specifications
Brand Name :
GHC
Model Number :
C273000R
Certification :
RoHS/CE/ISO9000
Place of Origin :
Dongguan City, Guangdong Province, China
MOQ :
24 Pcs
Price :
24 ＜ Order ＜ 300 Pcs: 4 USD; 300 ＜ Order ＜ 3000 Pcs: 3.2 USD; 3000Pcs ＜ Order: 2.7 USD;
Payment Terms :
L/C, T/T
Supply Ability :
14000/Month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Name :
Super Capacitor Battery
Specification :
2.7V 3000F
Energy Storage :
3Wh
Size :
18*65mm
Energy density :
75Wh/kg
Terminal :
Radial
Weight :
39g
MOQ :
24Pcs
Warranty :
3 Years
Description

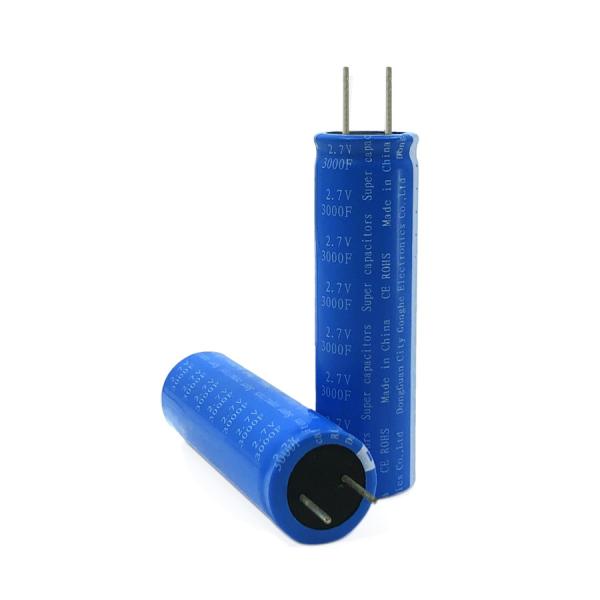

Graphene 2.7V 3000F Supercapacitors 18650 Battery for High Rate Solar Energy Collecting

Brief Introduction

Our products are a combination of supercapacitors and lithium batteries. It includes both their advantages.

(1) Compared to traditional supercapacitors, graphene supercapacitors batteries are more energy density, smaller size and lower discharging rate.

(2) Compared to lithium batteries: graphene supercapacitors batteries are faster charging speed, wider working temperature and longer cycle life, more safer as well, non-flammable and non-explosive

The electrolyte forms an ionic conductive connection between the two electrodes which distinguishes them from conventional electrolytic capacitors where a dielectric layer always exists, and the so-called electrolyte, e.g., MnO2 or conducting polymer, is in fact part of the second electrode (the cathode, or more correctly the positive electrode). Supercapacitors are polarized by design with asymmetric electrodes, or, for symmetric electrodes, by a potential applied during manufacturing.

Production Specification

Model Terminal Sepc Size ESR Leakage Current Normal Current Storage Energy Max Continuous Current Max Peak Current
C273000R Radial 2.7V 3000F Φ18*65 mm 17mΩ 10mA 1A 3Wh 5A 10A

High Energy Super Capacitor Battery Cells Catalog

Model Terminal Spec Capacitance Size Normal Current Storage Energy Max Continuous Current Max Peak Current
C27100R
Radial
2.7V
100F
10*20mm
0.05A
0.15WH
0.12A
0.25A
C27200R
Radial
2.7V
200F
10*30mm
0.1A
0.3WH
0.24A
0.5A
C27500R
Radial
2.7V
500F
14*36mm
0.25A
0.6WH
0.5A
1.2A
C271000R
Radial
2.7V
1000F
14*51mm
0.5A
1.2WH
1.2A
3A
C271000P
Paper
2.7V
1000F
30*40*5mm
0.5A
1.2WH
1.5A
3.3A
C273000R
Radial
2.7V
3000F
18*65mm
1A
3WH
5A
10A
C275000R
Radial
2.7V
5000F
24*69mm
1.5A
6WH
8A
15A
C2710000SI
Snap-in
2.7V
10000F
35*62mm
20A
12WH
40A
250A
C2730000SI
Screw
2.7V
30000F
60*74mm
10A
25WH
100A
200A
C27100000SR
Screw
2.7V
100000F
60*138mm
28A
60WH
150A
300A
C362000R
Radial
3.6V
2000F
18*50mm
1A
3.27WH
2A
6A
C42400R
Radial
4.2V
4000F
24*69mm
3A
15WH
6A
30A
C4221000P
Paper
4.2V
21000F
220*128*7.5mm
20A
75WH
40A
60A

Application:(Super Capacitor Battery)

Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

How Application Case

1.Electric vehicle

— Golf cart battery/Low-speed electric car battery/ Tricycle Battery /Motorcycle battery/Ebike Battery

2.Energy Storage
–Solar-Wind Power System / City Grid (On/Off) / Telcom Base / Computer Server Center

Advantage:(Super Capacitor Battery)

1) No less than 20,000 cycle life. Use it for ten years, it still works.
2) Great safety and reliability: Unlikely to catch fire or explode. Much safer than chemistry-based batteries.
3) Energy density is 75-220wh/kg. Lots of power in small unit.
4) Quick charge: 80% charge in 5-15 minutes.

5) -40℃ to 70℃ range of operating temperature. Suitable for harsh condition.
6) Cost-efficient: Not necessary to replace for years. One-time investment

If have any questions, pls feel free to contact me anytime.

Email: eric@gongheenergy.com Whatsapp/Phone:+8613129397035
