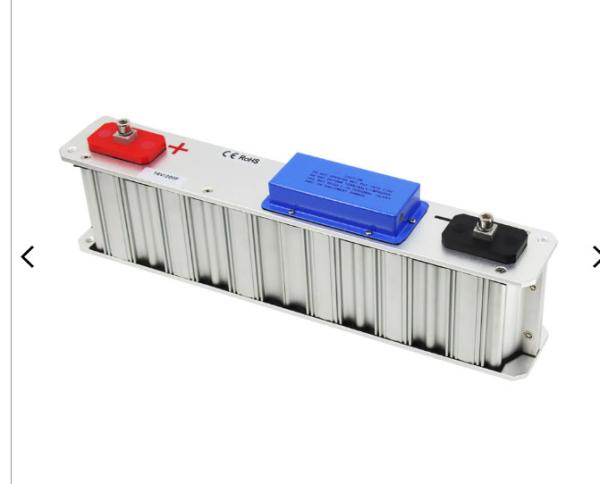

Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
Specifications
Brand Name :
GH
Model Number :
GHT 16V200F
Certification :
RoHS/CE/ISO9001
Place of Origin :
China
MOQ :
2 Pcs
Payment Terms :
T/T
Supply Ability :
1200 PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Carton or wooden box
Capacitance :
200F
ESR (Equivalent Series Resistance) :
3.7 mΩ
Certificate :
RoHS/CE/ISO9001
Type :
Super Capacitor Bank
Operating temperature :
-40°C ~ 70°C
Cycle life :
more than 20000times
Warranty :
3 Years
Package :
Cartons,Wooden box packing
Application :
General Purpose,Power,Automotive,AC / Motor
Size / dimension :
417*68*122mm
Shipment method :
by Sea and by Air
Capacitance tolerance :
20%or+20%
Description

Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank

Model number: GHT16V200FL
Place of origin: Guangdong,Cn
Product name: Super capacitor module/super capacitor pack
weight: 3.5 kg
Working temperature: -40~65℃.
ESR: 3.7 mΩ
Leakage current Less than 3.5mA
Charging and discharging time More then 20000 times
Application Energy storage/transportation car power/motor start /car start etc
Storage energy: 7.2 wh
Maximum continuous current 100A
Leakage current: 3.5 mA
MOQ: 2 Cet
Specification 16v 200f
SIZE: 417*68*122(Two sizes with different length, width and height)

Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank

There is no conversion between Farad to an Amp-hour rating. Energy stored in a capacitance is calculated as 0.5CV^2 (result in joules, equivalent to watt-seconds) and in electrochemical cells estimated as the amp-hour rating multiplied by nominal cell voltage (result in watt-hours).

In terms of their function, the biggest difference between the capabilities of a battery cell and supercapacitor is that batteries have a higher energy density (meaning they can store more energy per unit mass), but supercapacitors have a higher power density (they can store and release more short-term power).

Supercapacitors are already used to rapidly charge the power supplies in hybrid buses as they go from stop to stop. Currently, such chargers aren’t commercially viable to deliver on a mass scale, but as more people buy electric cars the charging infrastructure is likely to develop to a point that widespread supercapacitor chargers become a reality.

But electric car systems, batteries, charging and tech are improving all the time, so the scope for supercapacitors to amp up future EVs is electrifying.

Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank

Car Emergency Tool 12v 200f Super Capacitor Module For Car Jump Starter Power Bank
