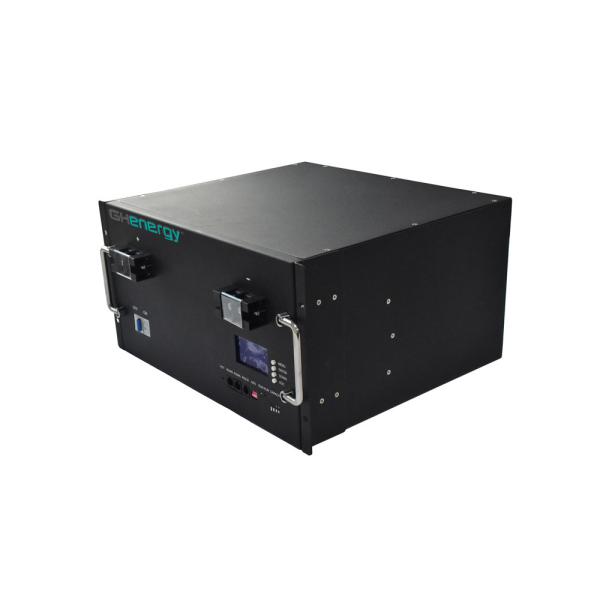

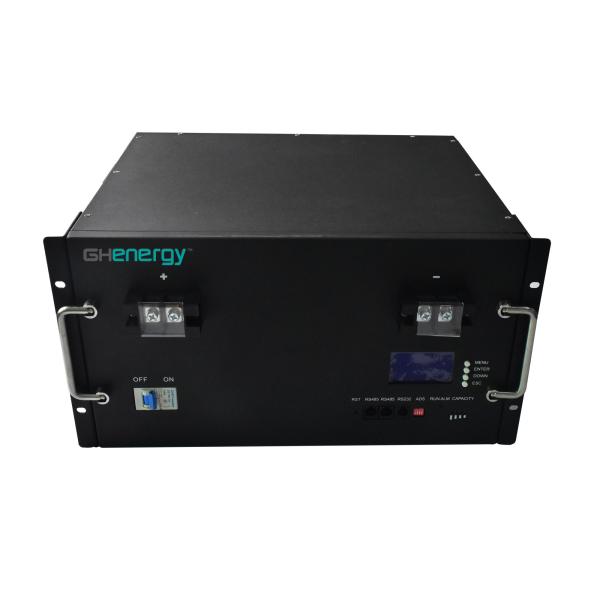

5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
5.12Kwh BMS LiFePO4 Lithium Battery Portable For Solar Storage
Specifications
Brand Name :
Gonghe
Model Number :
PWGH-1, LFP48V100Ah/LFP24V200Ah
Certification :
UL,IEC, UN38.3, ROHS,CE
Place of Origin :
China
MOQ :
1 piece
Price :
1200 USD
Payment Terms :
L/C, T/T
Supply Ability :
1200 PCS per month
Delivery Time :
25-30 days
Packaging Details :
Carton or wooden box
Type :
Li-Ion,LiFePo4,lifepo4/lithium battery/li-ion battery
Size :
customized,482*400*177mm
Cycle life :
>6000Cycles
Application :
Solar system/RV/yacht/golf carts storage and car/UPS
Nominal capacity :
5.12Kwh
Nominal voltage :
24V/48V
Warranty :
5 Years
Color :
Black(customize)
Weight :
46KG
Battery type :
LiFePo4
Oem/odm :
Accepatable,Yes
Shape :
square-shaped
Capacity :
100ah/200ah
Compact desiged :
with Built-in BMS
Features :
ultraportable
Battery capacity :
with LED indicator
Trasportation :
By Sea/By Air/By express
Description

Solar Energy Storage Systems Lithium Batteries Pack 24v200ah 48v100ah Lifepo4 Lithium Ion Battery For Home Use

Product Details

Lithium Ion solar battery 48v 50ah100ah 200ah 4 lifepo4 battery pack

Model

GH2400

GH5000

GH9600

GH12000

Voltage

48 V

48 V

48 V

48 V

Capacity

50Ah

100Ah

200Ah

250Ah

Energy

2.4Kwh

5.12Kwh

10.24Kwh

12.80Kwh

Operation voltage

35.25-54.75 Vdc

37.6-58.4Vdc

Max.charging voltage

54.75Vdc

58.4 Vdc

Max.charging and discharging current

50A

100A

Max Power

2400W

5120W

7680W

12800W

Life time(25°C)

10 years

Life cycles(80% DOD, 25°C)

6000 Cycles

Enclosure protection rating

IP65

Dimensions(L×W×H)mm

482*410*89

482*400*177

482*430*222

482*500*280

Weight

24KG

46KG

80KG

100KG

Lithium Battery Standard

UL,IEC, UN38.3, ROHS,CE

Monitor Digital Display

PERC PV Moduels
PID Free PV module
0-5W positive power tolerance
100% full EL inspection
Superior quality control
Optional Mono/Poly Blue/Black Panels
High Efficiency with PERC panels available
25 years warranty with 80% power output
PID Resistant,High salt and ammonia resistance

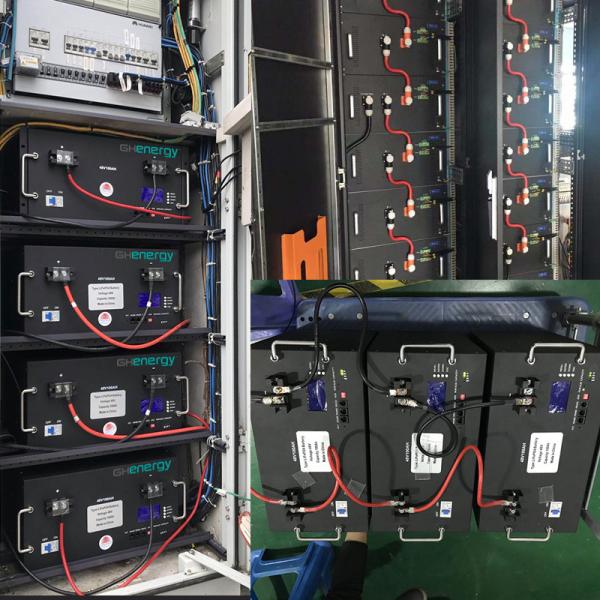

Support max. 4 parallels

If without master control, it support max. 4 parallels for highest 20.48Kwh battery system;

If with standard master controls, it can be paralleled and serialed with more batteries.

Power Storage LiFePO4 Battery

Match all 48V hybrid inverter.

10 years warrantys .

High integrated with less installation spaces.

Long life cycle,≥6000 times at 80% DOD.

Maintenance free, no memory effect.

Internal BMS with full protection
