Automatic AOI Machine SMT Inspection System K100 for 736*736mm stencil testing
Automatic AOI Machine SMT Inspection System K100 for 736*736mm stencil testing
Specifications
Dimension :
L1130*W1215*H1500mm
Application :
New stencil incoming inspection or inspection after cleaning
Stencil Size :
736mmx736mm
Brand Name :
Sunvishe
Model Number :
SVII-K100
Certification :
CE, ROSH
Place of Origin :
China
MOQ :
1
Delivery Time :
4 weeks
Packaging Details :
Plywood case+vacuum package
Effective Inspection Area :
600*630mm
Inspection item :
Aperture area, size, postion, offset, burr, multi hole, miss hole, tension meter, thickness etc.
Warranty :
12 months
Color :
White
Description

1. Purpose of use


Improve production efficiency and yield
Standardization of stencil management


2. Main features


High precision, fast speed, simple operation


3. Main functions


Area, position, size, offset, foreign body, hole clogging, missing hole, multi holde, burr,tension


4. Extended functions


Cooperate with customers' factory production information management system (MES)

Product Advantage


1,Solve the problem of incoming and cleaning stencils

2,Establish stencil control standards and improve the production management system

3,Automatic inspection instead of manual inspection, improve product quality and enhance product competitiveness

4,Solve excess solder, insufficient solder, welding without stopping and other printing problems from the source

5,The 01005 component and even more smaller component are widely used in the production now, high precision inspect is in line with future development trends

Automatic stencil inspection machine is designed for the SMT market, the measurement is accurate and repeatable.

Inspection Item: the stencil, position, offset, size, Foreign body, burr, blocked hole, multi hole, missing hole, tension, thickness.
·The first -Contact type thickness measurement, the world's highest
precision thickness measurement;
Camera Configuration: 5M / 18M Pixels Camera
Opening Inspection Accuracy: 6.9 um/3.6 um
Stencil Size: (736mmX736mm)
Effective Inspection Area(600mmX630mm) Linear motor + Gantry dual drive；
· SPC data analysis；
· Intelligent to search Mark points；
· Area Gage R&R＜5%；
· Positioning accuracy ±3μm/ repetition accuracy ±2μm；
· Won China SMT Innovation Achievement Award in 2016.

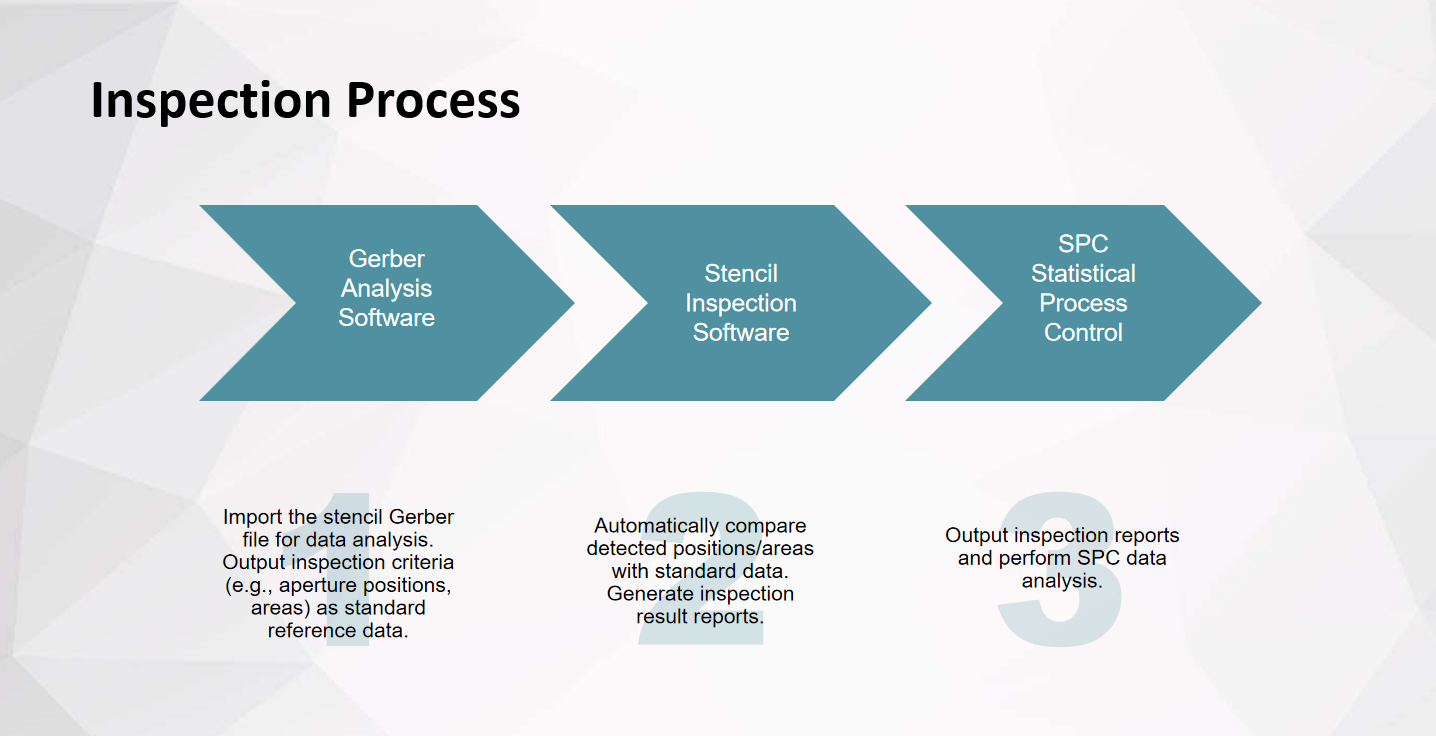

Automatic AOI Machine SMT Inspection System K100 for 736*736mm stencil testingAutomatic AOI Machine SMT Inspection System K100 for 736*736mm stencil testing
