High Frequency & RF PCB Assembly for 5G Communication with quality guaranteed

For 5G, RF and antenna applications, signal integrity depends on both material and manufacturing precision. We provide high frequency and RF PCB assembly using Rogers, PTFE and low loss laminates with tight impedance control, immersion finish and fine pitch placement to preserve RF performance from prototype to production.

Key Features

• Rogers, PTFE and low loss material support up to 77GHz
• Tight impedance control within +/- 5% for RF integrity
• Fine pitch SMT and BGA placement with X-Ray inspection
• Immersion silver or ENIG finish for low loss surfaces
• Suitable for 5G, RF, antenna and communication modules

Suntek Group services:

1. PCB/FPC bare board

2. Surface Mount Technology(SMT)& Through Hole Technology(THT)

3. Ball Grid Array(BGA)/0201 footprint assembly

4. Cable assembly and wire harness

5. Mix-Technology assembly and box-building

6. Lead-free and RoHS compliance,halogen-free

7. High-mix/low and mid-volume support

8. Full/part procurement,alliance with global suppliers

9. Test in-house(ICT/FT High-pot/ E-test etc)

10. NPI:Fast prototyping

11. Design for manufacturing/test(DFM/DFT)

12. Good communication in English language

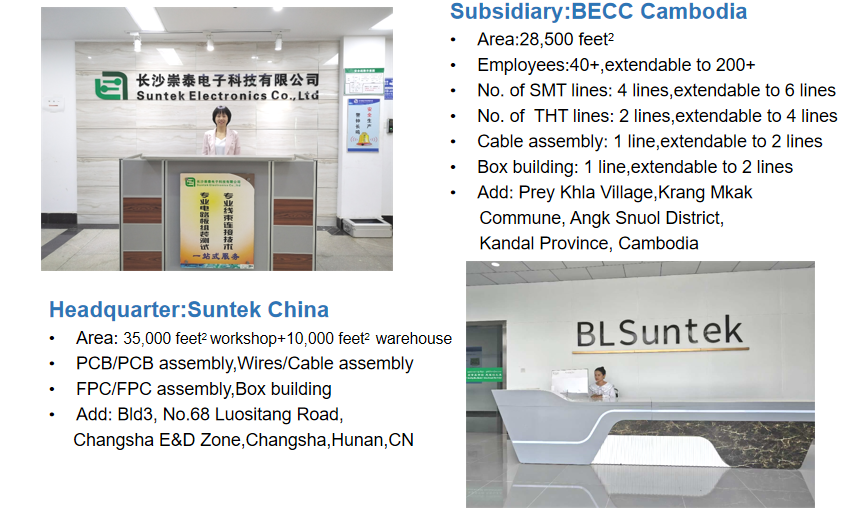

Our plants in China and in Cambodia:

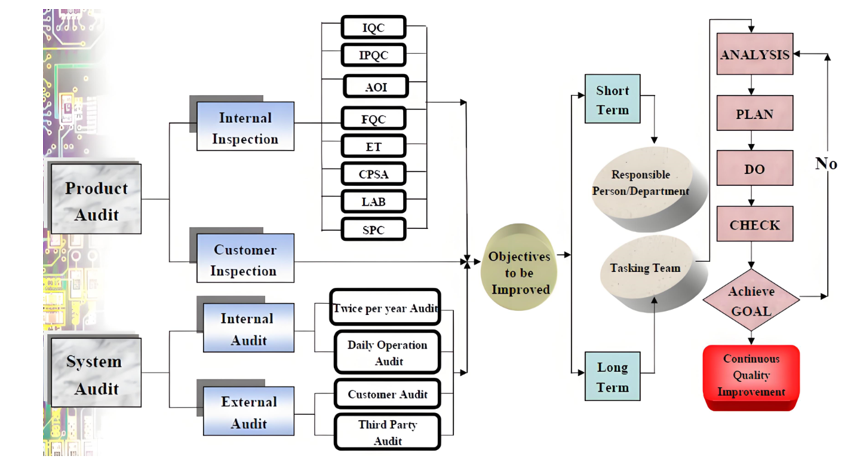

Our quality control system:

Rogers materials characters:

PCBs made from Rogers material are well-known for their excellent performance in high-frequency applications. Featuring low dielectric loss and stable electrical properties, Rogers PCBs are widely used in telecommunications, aerospace, and radar systems. They guarantee reliable signal integrity and durability, making them ideal for advanced electronic designs.

Features:

1. Low Dielectric Loss

Rogers materials have a low dielectric loss, which minimizes energy loss and heat generation, making them suitable for high-power applications.

2. High Thermal Conductivity

They have good thermal conductivity properties, helping to dissipate heat efficiently and maintain electronic component reliability.

3. Dimensional Stability

Rogers materials maintain their dimensional stability under varying temperatures and environmental conditions, ensuring the PCB's mechanical integrity over its lifespan.
