Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
Specifications
Brand Name :
Suntech
Model Number :
N04400
Certification :
U Stamp, PED, ISO, SGS, NB
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, etc
Supply Ability :
300 Pieces/Year
Delivery Time :
90 working days after received payment
Packaging Details :
Seaworthy packing
Material :
SA516 Gr. 70+UNS N04400
Volume :
1600L
Structure :
Round pipe
Length :
5830mm
Diameter :
632mm
Pressure :
0.1MPa-1.6MPa
Weight :
1Tons
Other Available Materials :
Copper-Nickel Alloy, Tantalum
Packing :
Seaworthy packing
Description

Specifications:

SA516GR.70+UNS N04400 CLAD PIPE
Pipe diameter: 632mm
Pipe wall thickness:11mm
Pipe Length:5830mm
Pipe Material:SA516GR.70+UNS N04400
Technique: GTAW Welded.
Grade: SB 127 UNS N04400


This product is applicable to:

1. Petroleum, chemical, power, gas, boiler etc.
2. Water, air, heating steam, gas and other low-pressure fluid delivery.
3. A variety of structural parts, spare parts and transmission fluid pipes and other structural purposes.

Application:

Chemical process equipment, crude oil stills, gasoline and fresh water tanks, marine engineering equipment, valves, pumps and fasteners.


The characteristics of Monel 400/ UNS N0400

Monel 400 has excellent resistance to corrosion by many reducing media such as sulfuric and hydrochloric acids. It is generally more resistant to corrosion by oxidizing media than higher copper alloys. Monel 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion is induced. Monel 400 is probably the most resistant to hydrofluoric acid in all concentrations up to the boiling point, of all engineering alloys. Monel 400 is notable for its toughness, it does not show embrittlement tendency at cryogenic temperatures. It is work hardenable.




The product display:

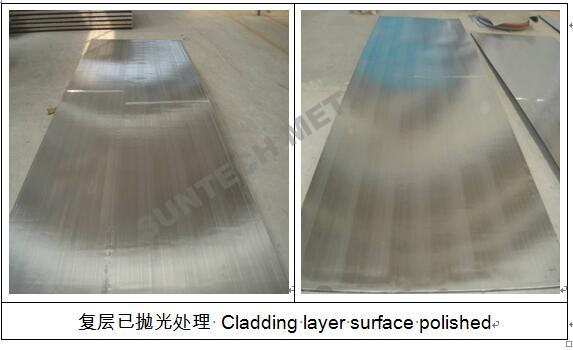

Explosion bonding clad plates

Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment

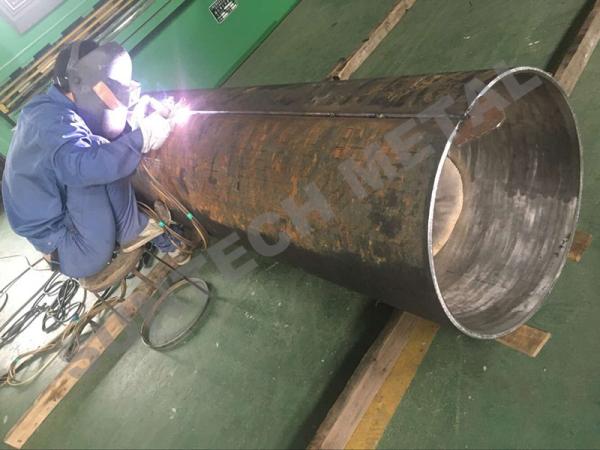

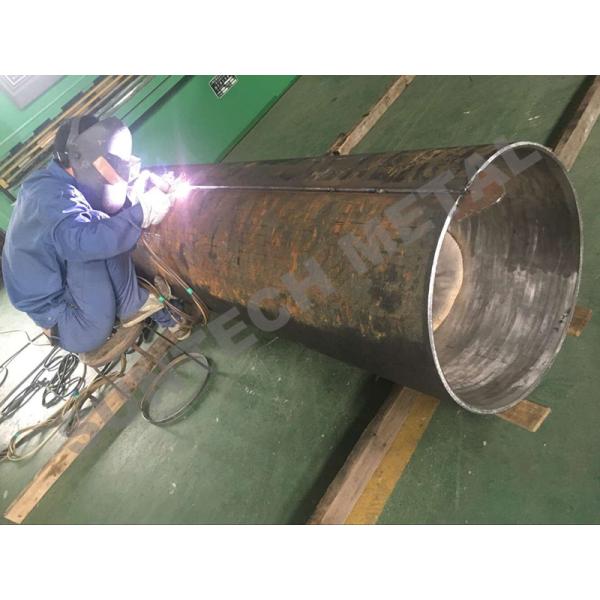

Welding

Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment

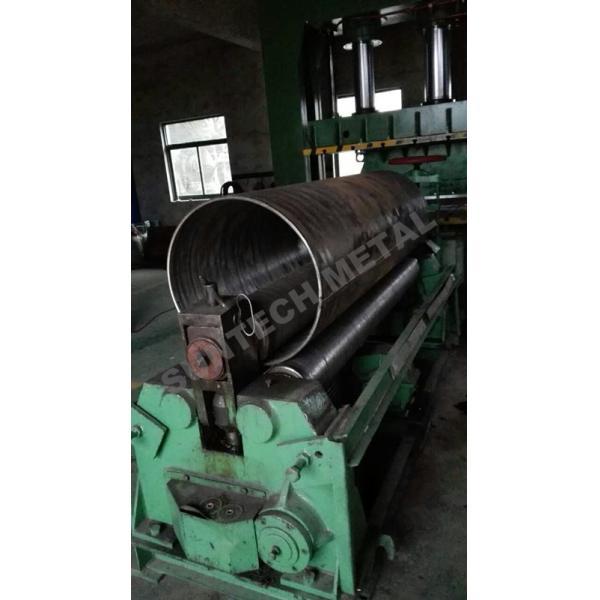

Rolling up and Leveling Roundness

Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment

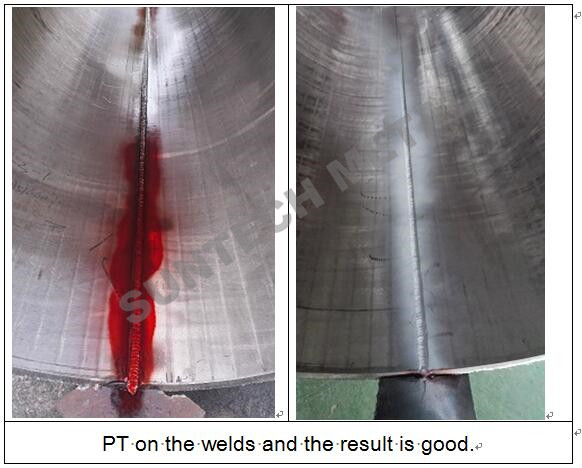

Penetrant Testing

Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment

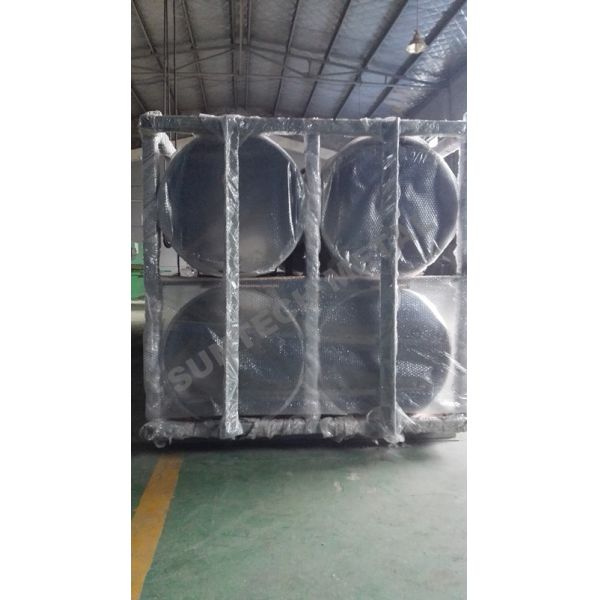

Packing

Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment

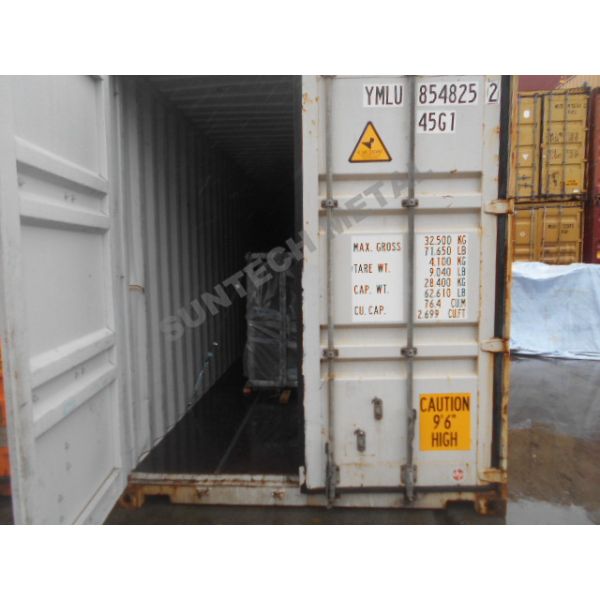

Delivery Explosive Welding Nickle Alloy Bimetallic Clad Pipe For Chemical Process Equipment
