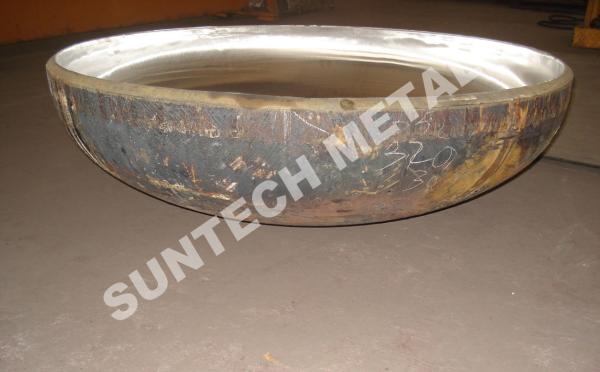

316L Austenitic Stainless Steel Clad head for Pressure Vessels
316L Austenitic Stainless Steel Clad head for Pressure Vessels
Specifications
Brand Name :
Suntech
Model Number :
E007
Certification :
U Stamp, PED, ISO, SGS, NB
Place of Origin :
P.R.China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, T/T, D/P,etc
Supply Ability :
35000tons/Year
Delivery Time :
60 working days after received your payment
Packaging Details :
Seaworthy packing
Shape :
2:1 Elliptical Head
Size :
(3+13)*ID940*SF50.8mm
Cladding Material :
316L
Base Material :
A516 Gr.70
Size Available :
Φ 400~Φ 10000mm
Production Code :
UG-81
Storage Medium :
Corrosive
Inner Surface Treatment :
Auto Polished
Description

316L Austenitic Stainless Steel Clad head for Pressure Vessels

Explosion Bonded / Bimetallic / SS Cladded Head

Flying Layer: 316L

Base Layer: A516 Gr.70

Size: (3+13)*ID940*SF50.8mm

Edge Treatment: Bevelling as per drawing

Packing: Seaworthy packing

Table for available type of clad heads and cladded metals:

Product Names:

Explosion Bonded Clad Head for Pressure Vessels

Production Codes:

ASME UG-81, etc.

Type

Abbreviation

Available Clad Metals

Production Method

Elliptical clad head

EHA, EHB

Titanium & Steel Clad

Ferritic Stainless Steel & Steel Clad

Austenitic (Duplex) Stainless Steel & Steel Clad

Nickel Alloy & Steel Clad

Zirconium & Steel Clad

Tantalum & Steel Clad

Copper & Steel Clad

Cold Pressing, Hot Pressing, Hot Spinning

Standard Flange&Dished

DHA, DHB

Dish only

PSH,SHD

Flange reverse dished

WD

Joggled head

DHD

Conical

CHA,CHB,CHC,CHD

Flange only

FH

Hemispherical

HH

Shallow Flange& Dished

MD,XD

Approximate Elliptical

AH

Dished and Flared

DF

Description:

Clad heads provide an economical solution for chemical processing. Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.

Inspection:

316L Austenitic Stainless Steel Clad head for Pressure Vessels
