Specifications
Brand Name :
Yangtze
Model Number :
YS200M-BI
Certification :
CE/TUV/ISO/ROHS/INMETRO
Place of Origin :
China
MOQ :
30 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
20000 pieces/Week
Delivery Time :
7-20 days
Packaging Details :
Pallet+Carton Box
Frame :
Anodized Aluminium Alloy/Frameless
Junction Box :
IP68 Rated
Solar cell :
Half Cell 10BB
Glass :
High Transmission Low Iron Tempered Glass
Backing Color :
White or Black or Transparent
OEM Order :
Acceptable
Class :
Grade A
Rated Power :
200W
Description

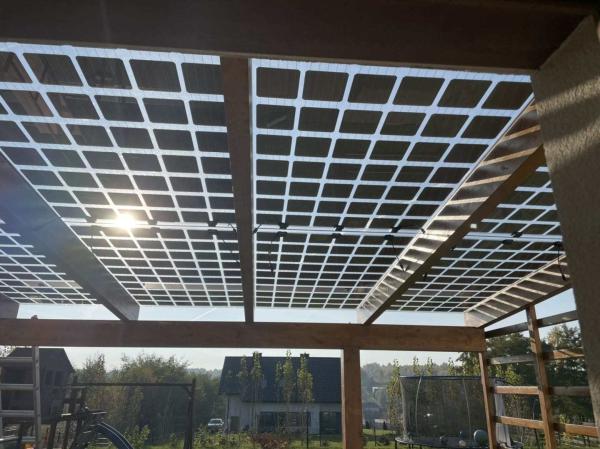

200W BIPV Building Integrated Photovoltaics Transparency 40%-60% For Agriculture

Product Description:

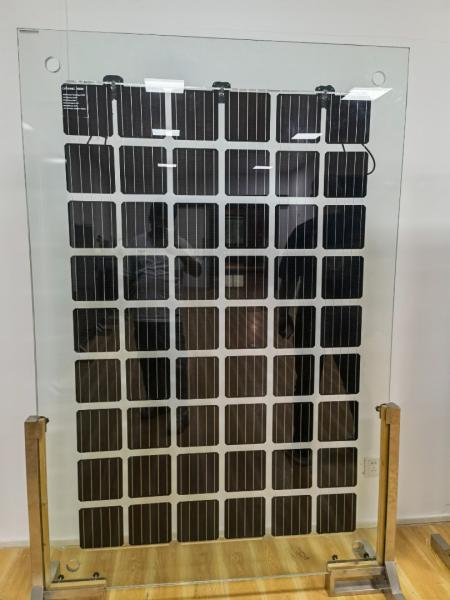

BIPV Solar Panels

BIPV Solar Panels are an innovative solution that combines photovoltaic solar energy production with building architecture and construction. They are made of high-quality aluminum alloy materials and feature mono-crystalline cell type. These solar panels are designed to operate within a wide temperature range of -40°C to 85°C and a current range of 6A-10A. The BIPV Solar Panels provide an efficient and reliable energy production, and are backed by a 25-year warranty for your peace of mind.

Features:

  • Product Name: BIPV Solar Panels
  • Lifespan: 25-30 Years
  • Type: BIPV Solar Panels
  • Operating Current: 6A-10A
  • Efficiency: 18%-22%
  • Power Output: 200W-700W

Applications:

Yangtze BIPV Solar Panels are the perfect energy solution for your home or business. Our solar panels are made with the highest quality materials and are designed to meet the most rigorous standards. Our China-made panels feature Mono-crystalline cells and are built with an Aluminum Alloy frame for optimal durability. With an efficiency rating of 18%-22%, our solar panels are sure to provide you with reliable energy for years to come. The operating voltage of 36V-48V makes it easy to connect to your existing system or to connect multiple panels with the MC4 connector type. Our BIPV Solar Panels are the perfect solution for anyone looking to harness the sun’s energy in an efficient and cost-effective manner.

Customization:

BIPV Solar Panels: Yangtze is China's leading brand of BIPV Solar Panels. Our solar panels are made of Mono-crystalline cell type, and comes with a 25-year warranty. Our BIPV Solar Panels are designed to work in a temperature range of -40°C to 85°C, with an operating current of 6A-10A and power output of 200W-700W. No matter where you are in the world, you can count on Yangtze BIPV Solar Panels for reliable performance.

Support and Services:

BIPV Solar Panels Technical Support and Service

We provide comprehensive technical support and service for BIPV Solar Panels. Our team of experts is available to answer any questions you may have regarding installation, maintenance, or any other technical concerns.

We can provide on-site assistance with installation, and we have an online support portal with resources and troubleshooting tips. We also offer remote technical support via phone or video chat.

For any maintenance needs, we have a team of certified technicians who can assess and repair any issues with your BIPV Solar Panels. If the issue cannot be resolved onsite, we can replace the faulty parts and return them to you as soon as possible.

Our goal is to ensure that you are getting the most out of your BIPV Solar Panels and to provide you with the best possible customer service.

Packing and Shipping:

Packaging and Shipping for BIPV Solar Panels

BIPV solar panels require careful handling and packaging to ensure safe delivery to the customer. Here is an overview of the packaging and shipping process.

Packaging

BIPV solar panels are packaged in sturdy cardboard boxes with heavy-duty foam padding. The boxes are labeled with the product name, weight, and dimensions. Each panel is individually wrapped in plastic to protect against dust and moisture.

Shipping

BIPV solar panels are shipped via ground or air freight. Ground freight is the most common method of shipping due to its relative affordability and reliability. Air freight is more expensive but can be faster, especially for international shipments.

For international shipments, the product must be cleared by customs before it can be delivered to the customer. This process can take some time, depending on the country and local regulations.

OEM Integrated Photovoltaic BIPV Solar Panels 200W

Model Type
YS200M-BI
YS300M-BI
YS400M-BI
Rated Maximum Power at STC
200W
300W
400W
Maximum Power Voltage (Vmp)
28.5V
33.2V
34.82V
Maximum Power Current (Imp)
7.02A
9.03A
11.49A
Open Circuit Voltage ( Voc)
35.63V
41.5V
43.53V
Short Circuit Current (Isc)
7.51A
9.69A
12.64A
Module Efficiency
14.90%
18.44%
21.98%
Working Conditions&Working Conditions
Glass Thickness
2mm 4mm 6mm 8mm 10mm 12mm
Transmittance
10% 20% 30% 40% 50% 60% 70% 80%
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
