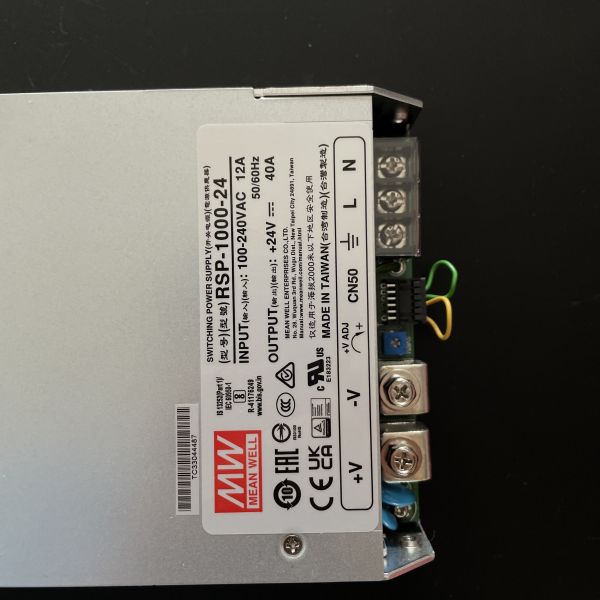

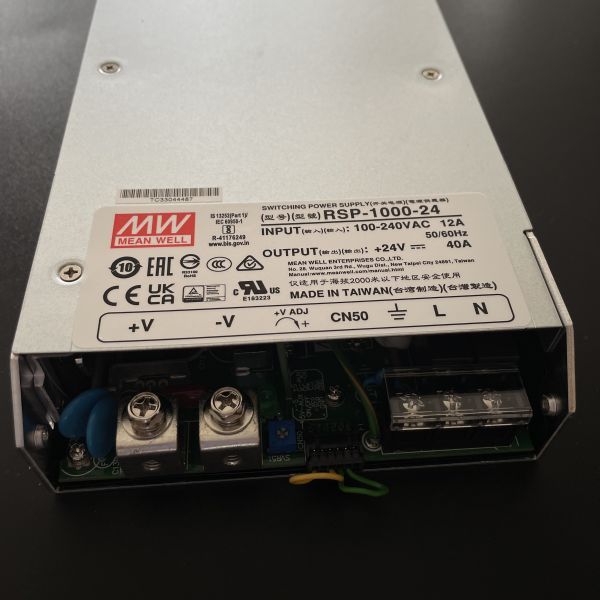

MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
Specifications
Output Current :
0-40A
Input Voltage :
90-264V AC 127 ~ 370V DC
LED Driver Size :
295x127x41mm (LxWxH)
Output Voltage :
24V
Brand Name :
MEAN WELL
Model Number :
RSP-1000-24
Certification :
CE,TUV ETC,SGS,RoHS
Place of Origin :
China
MOQ :
10
Price :
negotive
Payment Terms :
T/T,Western Union,MoneyGram,paypal
Supply Ability :
10000PCS/Month
Delivery Time :
according to the quantity
Packaging Details :
cartons
Description
MEAN WELL RSP-1000-24 Power Supply 24V 960W 40A Enclosed SMPS 1U Low Profile 88% High Efficiency
Product Overview

MEAN WELL RSP-1000-24 is a genuine 960W single output enclosed AC/DC power supply delivering 24VDC at 40A with built-in active PFC, programmable output voltage, and active current sharing that allows up to four units in parallel for 4000W total power.

Specifications
Brand Name MEAN WELL
Model No. RSP-1000-24
Power 960W
Output Type Single
Input Voltage 90-264V AC 127 ~ 370V DC
Output Voltage 24V
Output Frequency 47-63Hz
Output Current 0-40A
Type AC-DC
Key Features
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%

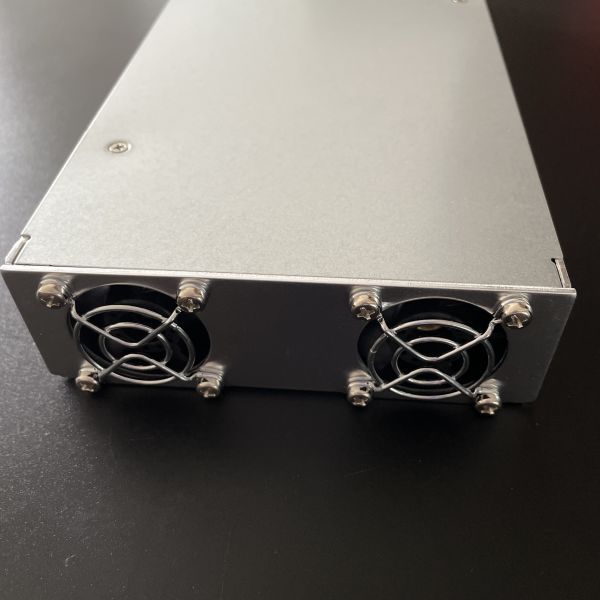

  • Forced air cooling by built-in DC fan
  • Output voltage programmable
  • Active current sharing up to 4000W (3+1)
  • Built-in remote ON-OFF control / remote sense auxiliary power / DC OK signal
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional conformal coating
  • 5 years warranty
Applications
  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in and aging facilities
  • RF communication and amplifier equipment
Shipping Informations
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CNF
Sample Availability YES
Standard Delivery Time 3-4 working days

FAQ

Q:What protections does the RSP-1000-24 offer?

A:The RSP-1000-24 includes short circuit, overload, over voltage and over temperature protections. Overload protection activates at 105-125% of rated power with constant current limiting and automatic recovery, over voltage protection triggers at 27.6-32.4V with shut-down and re-power-on recovery, and over temperature protection recovers automatically once the temperature drops.

Q:What are the operating temperature limits of the RSP-1000-24?

A:The RSP-1000-24 operates over an ambient temperature range of -20°C to +60°C with output derating at higher temperatures (refer to the official derating curve), and it can be stored at -40°C to +85°C.

Q:What certifications does the RSP-1000-24 hold?

A:The RSP-1000-24 holds UL62368-1, CSA C22.2, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS 62368.1, IS13252 (Part 1)/IEC60950-1 and EAC TP TC 004 safety approvals, and complies with BS EN/EN55032 (CISPR32) Class B EMC emission and industrial immunity standards.
