10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-J5050-4H1-RGBW
Certification :
CE,SGS,RoHS
Place of Origin :
Shenzhen,China
MOQ :
100
Price :
negotiate
Payment Terms :
T/T,Western Union,Paypal,Money Gram
Supply Ability :
10000pcs/month
Delivery Time :
7-10 working days
Packaging Details :
cartons
Power :
10W
Color :
RGBW
Luminous Efficiency :
134lm/W
Color Rendering Index :
80
Operating Temperature :
-30℃-85℃
Luminous Flux :
100-1000lm
Description

10W Ceramic-LED RGBW White LED Chip Diode Stage Lighting 120 Degree Aluminum Substrate PCB Solder

Product Specifications


Model No.SUN-J5050-4H1-RGBW
Power10W
ColorRGBW
Luminous Efficiency134LM/W
Color Rendering Index80
Operating Temperature-30ºC-85ºC
Luminous flux100-1000LM
Storage Temperature20ºC-25ºC


Details


Parameter/unit
(参数/单位)		Symbol
(符号)		Conditions
(测试条件)		Min.
(最小值)		Typ.
(典型值)		Max.
(最大值)		Tolerance
(公差)
Luminous Flux/lm
(光通量/流明)		Φ-RIF=700mA---10512210%
Φ-GIF=700mA---18023010%
Φ-BIF=700mA---4556.810%
Φ-CIF=700mA---18523010%
Forward Voltage/V
(正向压降/伏)		Vf-RIF=700mA1.8---2.80.1V
Vf-GIF=700mA2.8---3.80.1V
Vf-BIF=700mA2.8---3.80.1V
Vf-CIF=700mA2.8---3.80.1V
Dominant Wavelength/nm Color Temperature/K
(主波长/纳米 色温/开)		Wd-RIF=700mA6156256351nm
Wd-GIF=700mA5155255351nm
Wd-BIF=700mA4504654701nm
Tc-CIF=700mA500065001000010%

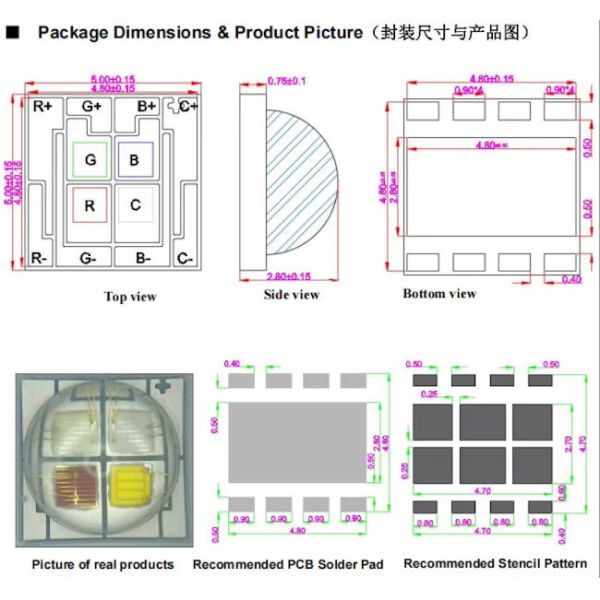

Photos about 10W RGBW LED PCB Board

10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder

10W Ceramic-LED RGBW LED Chip Diode 120 Degree Aluminum Substrate PCB Solder

Features

10W High Power LED Chip: Delivers intense illumination for stage lighting.

RGBW Color: Offers full spectrum color options for versatile applications.

120 Viewing Angle: Ensures wide coverage for optimal lighting distribution.

Long Lifespan: Rated for 50,000 hours, providing durable performance.

Aluminum Substrate: Built for heat dissipation and longevity.

Applications

Stage Lighting

Shipping&Delivery Informations

Shipping MethodDelivery Time
DHL/UPS/TNT/FEDEX4-5 working days
EMS10-15 working days
HK Post Air Mail Register15-18 working days
Trade TermsFOB | EXW | CNF
Sample AvailabilityYES
Standard Delivery Time3-4 working days
