12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
Specifications
Brand Name :
MEAN WELL
Model Number :
HDR-30-12
Certification :
SGS,RoHS,CE
Place of Origin :
Shenzhen,China
MOQ :
10
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
10000pcs/months
Delivery Time :
7-10 working days
Packaging Details :
cartons
Price :
Negotiate
Power :
24w
Input Voltage :
100-240VAC
Output Voltage :
12V
Current :
2A
Efficiency :
88%
Warranty :
3 years
Description
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
The HDR-30-12 is an economical ultra-slim 30W DIN rail power supply designed for installation on TS-35/7.5 or TS-35/15 mounting rails. With a compact 35mm (2SU) width design, it saves valuable space inside electrical cabinets. The plastic housing provides effective protection against electrical hazards while achieving up to 88% working efficiency. This power supply operates reliably in ambient temperatures from -30℃ to 70℃ with air convection cooling. Complete protection functions and relevant certifications (IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16) make the HDR-30 series a competitive power solution for household and industrial applications.
Specifications
Product Name 12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
Model No. HDR-30-12
Power 24W
Input Voltage 85-264VAC
Output Voltage 12V
Rated Current 2A
Frequency Range 47-63Hz
Efficiency 88%
Warranty 3 years

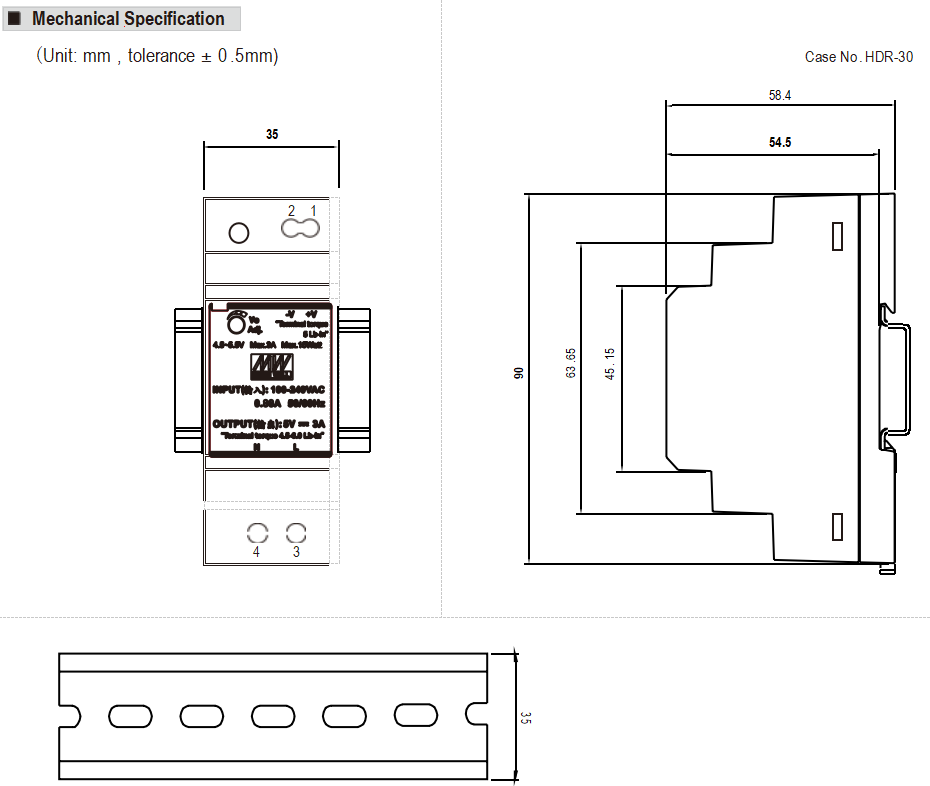

Dimension 90x54.5x35mm
Packing 0.13kg/pc, 96pcs/14.2Kg/1.04CUFT
MODEL HDR-30-5 HDR-30-12 HDR-30-15 HDR-30-24 HDR-30-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
RATED CURRENT 4A 2A 1.6A 1A 0.63A
RATED POWER 20W 24W 24W 24W 30W
RIPPLE & NOISE (max.) Note.3 80mVp-p 120mVp-p 120mVp-p 150mVp-p 200mVp-p
VOLTAGE TOLERANCE Note.4 ±2% ±1% ±1% ±1% ±1%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1% ±1% ±1% ±1% ±1%
SETUP, RISE TIME Note.6 500ms/230VAC, 1200ms/115VAC
HOLD UP TIME (Typ.) 10ms/230VAC, 10ms/115VAC
INPUT VOLTAGE RANGE 85~264VAC
FREQUENCY RANGE 47~63Hz
EFFICIENCY (Typ.) 84% 86% 87% 88% 89%
AC CURRENT (Typ.) 0.5A/115VAC, 0.25A/230VAC
INRUSH CURRENT (Typ.) COLD START 25A/115VAC 45A/230VAC
12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting 12V 24W Aluminum Case LED Power Supply Constant Voltage LED Driver for Outdoor Lighting
Key Features
  • Ultra slim design with 35mm (2SU) width
  • Universal input 85-264VAC (277VAC operational)
  • No load power consumption <0.3W
  • Isolation class Ⅱ
  • Pass LPS (Limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit / overload / over voltage
  • Cooling by free air convection (working temperature: -30℃ to +70℃)
  • DIN rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
Shipping&Delivery Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CNF
Sample Availability YES
Standard Delivery Time 3-4 working days
Applications
  • Street lighting systems
  • Highway LED lamps
  • Tunnel lighting
  • Square and area lighting
  • Road and parking spot lamps
  • Track lighting fixtures
  • Landscape and scenery area lighting
  • Retail and commercial lighting
  • High luminous flux applications
