Specifications
Brand Name :
MEAN WELL
Model Number :
HDR-150-12
Certification :
SGS,RoHS,CE
Place of Origin :
Shenzhen,China
MOQ :
10
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
10000pcs/months
Delivery Time :
7-10 working days
Packaging Details :
Cartons
Price :
Negotiate
Power :
120-135W
Output Voltage :
12V
Output Current :
10.2A/11.3A
Input Voltage :
85-264VAC/120-370VAC
Input Efficiency :
89%
Warranty :
3 years
Description
120-135W LED Power Supply with Adjustable DC Output Voltage and DIN Rail Mountable
Key Features
  • Ultra slim design with 105mm (6SU) width
  • Universal input 85-264VAC (277VAC operational)
  • No load power consumption <0.3W
  • Isolation class II
  • DC output voltage adjustable
  • Protections: Short circuit / overload / over voltage
  • Cooling by free air convection
  • DIN rail TS-35/7.5 or 15 mountable
  • Over voltage category III
  • LED indicator for power on
Product Description

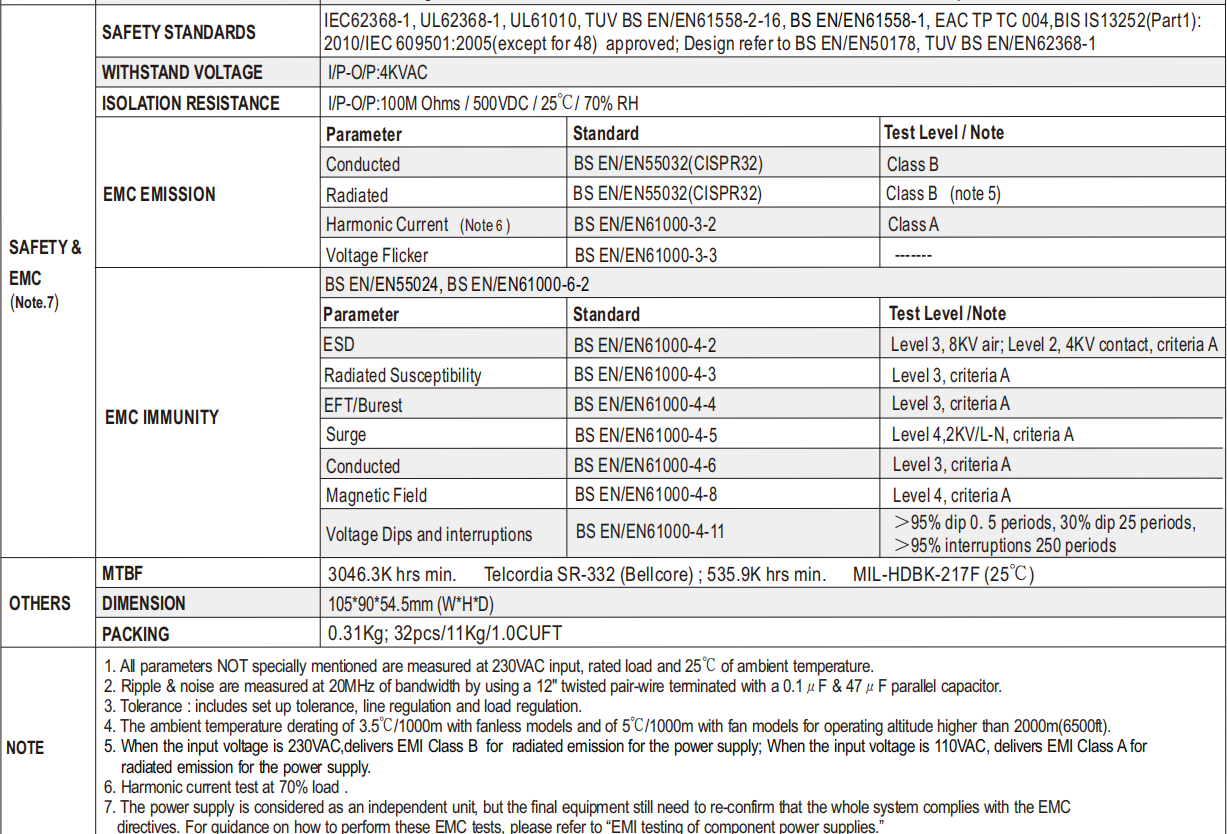

The HDR-150-12 is an economical ultra slim 150W DIN rail power supply, designed for installation on TS-35/7.5 or TS-35/15 mounting rails. Featuring a plastic housing that effectively prevents electrical hazards, this power supply achieves up to 89% working efficiency and operates in ambient temperatures from -30℃ to 70℃ with air convection. Complete protection functions and relevant certifications (IEC62368-1, UL62368-1, UL61010, BS EN/EN61558-2-16) make the HDR-150 a competitive power solution for household and industrial applications.
Technical Specifications
Model No.HDR-150-12
Power120-135W
Input Voltage85-264VAC/120-370VAC
Input Efficiency89%
Output Voltage12V
Output Current10.2A/11.3A
Warranty3 years

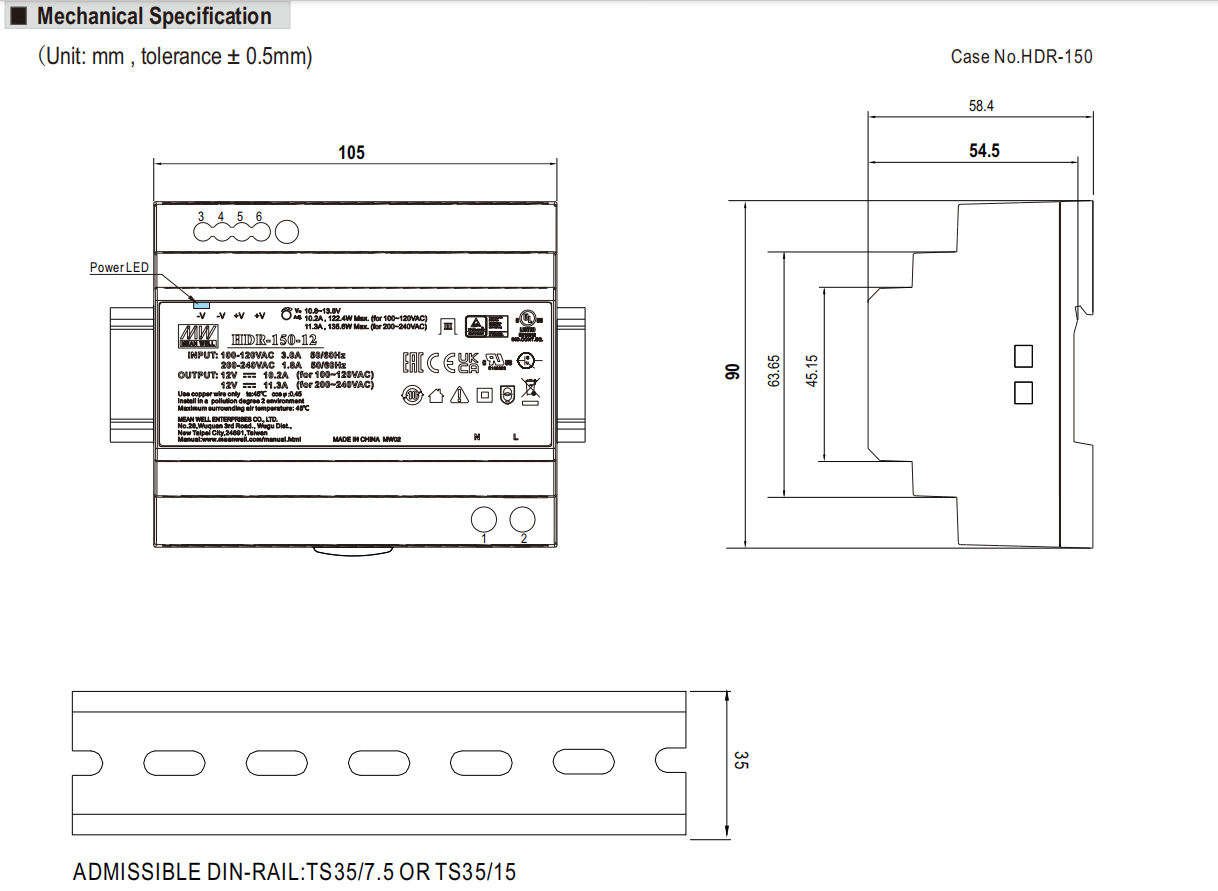

Dimensions105x90x54.5mm
Packing0.31kg, 32pcs/11kg/1.0CUFT
MODELHDR-150-12HDR-150-15HDR-150-24HDR-150-48
OUTPUTDC VOLTAGE12V15V24V48V
RATED CURRENT115VAC: 10.2A
230VAC: 11.3A		115VAC: 8.55A
230VAC: 9.5A		115VAC: 5.31A
230VAC: 6.25A		115VAC: 2.72A
230VAC: 3.2A
RATED POWER115VAC: 122.4W
230VAC: 135.6W		115VAC: 128.3W
230VAC: 142.5W		115VAC: 127.4W
230VAC: 150W		115VAC: 130.6W
230VAC: 153.6W
RIPPLE & NOISE (max.)100mVp-p120mVp-p150mVp-p200mVp-p
VOLTAGE ADJ. RANGE10.8 ~ 13.8V13.5 ~ 18V21.6 ~ 29V43.2 ~ 55.2V
VOLTAGE TOLERANCE±2.0%±1.0%±1.0%±1.0%
LINE REGULATION±1.0%±1.0%±1.0%±1.0%
LOAD REGULATION±1.0%±1.0%±1.0%±1.0%
SETUP, RISE TIME500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.)30ms/230VAC 12ms/115VAC at full load
INPUTVOLTAGE RANGE85 ~ 264VAC (277VAC operational) 120 ~ 370VDC (390VDC operational)
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)89%89.50%90.50%90.50%
AC CURRENT (Typ.)3A/115VAC 1.6A/230VAC
INRUSH CURRENTCOLD START 35A/115VAC 70A/230VAC
Product Details
120-135W LED Power Supply with Adjustable DC Output Voltage and DIN Rail Mountable 120-135W LED Power Supply with Adjustable DC Output Voltage and DIN Rail Mountable
Shipping & Delivery Informations
DHL/UPS/TNT/FEDEX4-5 working days
EMS10-15 working days
HK Post Air Mail Register15-18 working days
Trade TermsFOB|EXW|CIF|CNF
Sample AvailabilityYES
Standard Delivery Time3-4 working days
Applications
  • Street lighting systems
  • Highway LED lamps
  • Tunnel lighting
  • Square and area lighting
  • Road and parking spot lamps
  • Track lighting fixtures
  • Landscape and scenery area lighting
  • Retail and commercial lighting
  • High luminous flux applications
