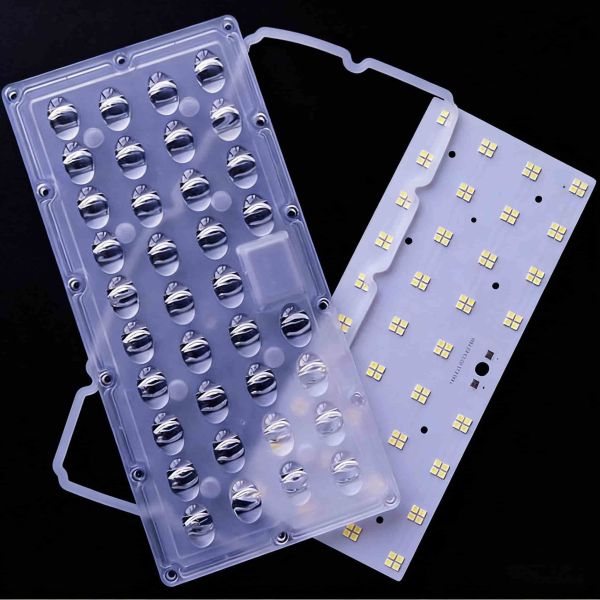

Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-LD253x120-36-151x81
Certification :
SGS,RoHS,CE
Place of Origin :
Shenzhen,China
MOQ :
100
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Cartons
Price :
Negotiate
Model No. :
SUN-LD253x120-36-151x81
Power :
100W
PCB Size :
223x93x1.5mm
Lens Dimension :
253x120x10.6mm
Lens Angle :
151x81 degree
PCB Circuit :
8 series 18 parallel
Accessory :
Array lens , silicon gasket,PCB board
Other Angles :

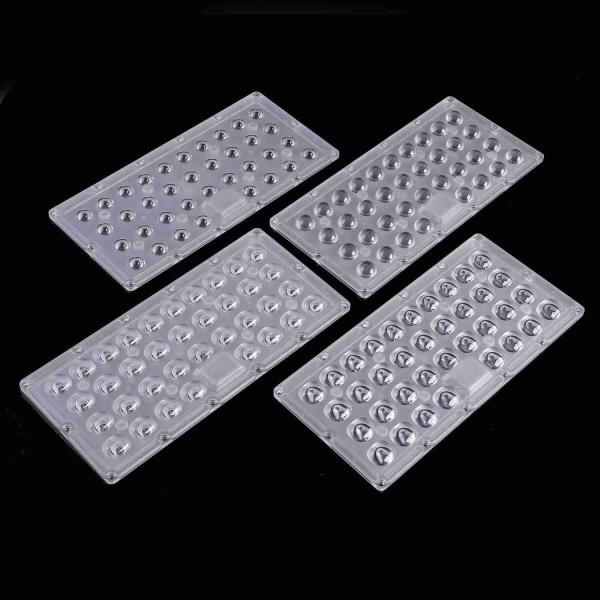

60/90/150/140x100/117x52 degree
LED Chip :
3030 SMD LED,140-150lm/w 150mA,6v
Transmittance :
91%
Lens Material :
PC
Warranty :
3 years
Description
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
This high-performance 100W SMD 3030 LED street light module features advanced optics lens technology designed for superior street lighting applications.Engineered with precision and durability in mind.
Product Overview
Built using SMD 3030 LED technology, the 100W LED module provides high luminous efficacy, ensuring that the lighting is both bright and energy-efficient. With the 151x81-degree beam angle lens, this module ensures wide-area illumination, making it ideal for large spaces such as warehouses, stadiums, highways, and parking lots.The lens is specially designed to provide optimal light distribution by spreading the light across a wide area, which minimizes dark spots and uneven lighting. This LED module is a versatile solution that can be customized to meet specific lighting needs and is available for wholesale, making it an excellent choice for lighting manufacturers, contractors, and distributors seeking high-quality and cost-effective lighting solutions.
Key Features
  • Compact design compatible with various lamp housings
  • High-quality 3030 LEDs ensuring extended lifespan
  • Customizable lens and board designs available
  • Optimized 36 LED array configuration for 100W applications
Technical Specifications

Product Name

Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions

Model No.

SUN-LD253x120-36-151x81

Main Parts

Array lens , silicon gasket,PCB board

Lens Size

253x120x10.6mm

PCB Size

223x93x1.5mm

Lens Angle

151x81 degree

PCB Circuit

8 series 18 parallel

Lens Material

PC

Transmittance

91%

LED Chip

3030 SMD LED,140-150lm/w,150mA,6v

Other Angles

60/90/150/140x100/117x52/151x81 degree

Working hours

50000+

Warranty

3 years

Quality Guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

Main Market

Europe, South America,North America, Asia
Product Models Comparison
Model No. Power (W) Angle (Degree) Lens Size (mm) PCB Size (mm) Circuit
SUN-LD3x12-3030-90x90 30 90x90 250x74 228x53x1.5 6S6P
SUN-LD3x12-3030-60x140 30 60x140 120x110 89x89x1.5 6S6P
SUN-LD4X12-3030-60X60 40 60x60 250x74 228x53x1.5 6S8P
SUN-SL56W-3030-30/60/90 50 30/60/90 256.6x78.6 233x55x1.5 7S8P
SUN-SL64W-3030-30/60/90 50 30/60/90 236x70 219.1x53.54x1.5 8S8P
SUN-SL72-3030-60/90 50 60/90 250x74 226x57.9x1.5 8S9P
Lens Dimensions Drawing
Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions








Shipping&Delivery Informations

DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB | EXW | CIF | CNF

Sample Availability

YES

Standard Delivery Time

3-4 working days
Applications
Ideal for various lighting applications requiring high luminous flux:
Street lighting systems
Highway LED lamps
Tunnel lighting
Square and area lighting
Road and parking spot lamps
City lighting infrastructure
Track lighting fixtures
Scenic area illumination
Retail and commercial lighting

Custom 100W SMD 3030 LED PCB Board with 151x81 Degree Angle Lens for Lighting Solutions
