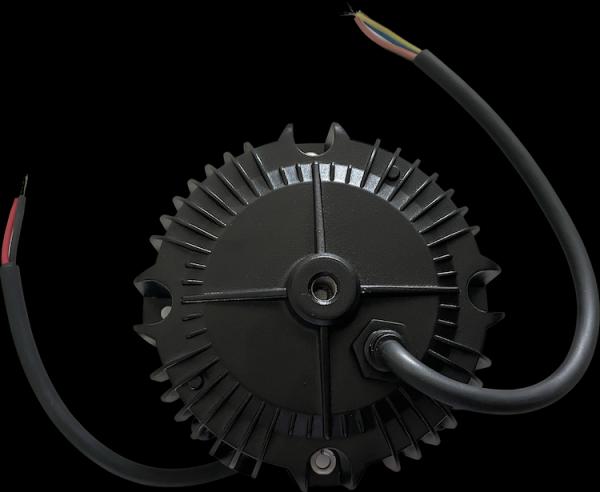

159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
Specifications
Place of Origin :
ShenZhen,China
Working Temp :
-40℃- 90℃
warranty :
5 years
Waterproof :
IP67
Delivery Time :
7-10 working days
Output Current :
3300mA
Brand Name :
MEAN WELL
Model Number :
XBG-160-A
Output Power :
159.9W
Efficiency :
93%
Certification :
CE,SGS,RoHS
MOQ :
10
Price :
negotiate
Payment Terms :
T/T,Western Union,Paypal,Money Gram
Supply Ability :
10000pcs/month
Packaging Details :
carton
Output Voltage :
60V
Material :
Aluminum Housing
Description
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
Product Specifications
Output Power 159.9W
Output Current 3300mA
Output Voltage 60V
Input Voltage 90-305VAC
Efficiency 93%
LED Driver Size 151.5x60mm (DxH)
Packing 1.25Kg; 8pcs/11.5Kg/0.93CUFT
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
Key Features
  • Full power output at 70~100% constant power mode operation
  • Wide input range 90 ~ 305VAC with active PFC function
  • Metal housing design with IP67 protection
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off and isolation design)
  • Typical lifetime >50,000 hours and 5 years warranty
  • AC input cable with connector for flexible application

GET A FREE QUOTE NOW.

XBG-160 series is a 160W AC/DC LED driver featuring the constant power mode. XBG-160 operates from 90~305VAC and offers different rated current ranging between 2850mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XBG-160 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
MODEL XBG-160-□-□
OUTPUT DEFAULT CURRENT 3300mA
RATED POWER 159.9W
CONSTANT CURRENT REGION 34 ~ 56V
FULL POWER CURRENT RANGE 2850~4100mA
OPEN CIRCUIT VOLTAGE (max.) 60V
CURRENT ADJ. RANGE 1425~4100mA
CURRENT RIPPLE 5.0% max. @rated current
CURRENT TOLERANCE ±5%
SET UP TIME Note4 500ms/230VAC, 2000ms/115VAC
INPUT VOLTAGE RANGE Note.2 90 ~ 305VAC, 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF ≥ 0.97 / 115VAC, PF ≥ 0.95 / 230VAC, PF ≥ 0.92 / 277VAC at full load
TOTAL HARMONIC DISTORTION THD < 10%
EFFICIENCY (Typ.) 93%
AC CURRENT (Typ.) 2.0A/115VAC 0.8A/230VAC 0.7A/277VAC
INRUSH CURRENT (Typ.) COLD START 50A (twidth=820μs measured at 50% peak) at 230VAC; Per NEMA 410
MAX. NO. OF PSUs on 16A CIRCUIT BREAKER 4 units(circuit breaker of type B) / 7 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA/277VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption<0.5W for A-Type Standby power consumption<0.5W for AB-Type
Applications
  • LED bay lighting
  • LED stage lighting
  • LED spot lighting
  • Explosion-proof lighting and so on
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
Shipping & Packing Informations
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CNF
Sample Availability YES
Standard Delivery Time 3-4 working days
159.9W IP67 Waterproof LED Driver 93% High Efficiency Constant Voltage Power Supply 34-56V Optional For LED Strip, Sign Lighting & Outdoor Fixtures
Looking for a reliable lighting factory?
Our high-power luminaires with CE SGS RoHS certification are shipped to 50+ countries .
Get a free quote now.
