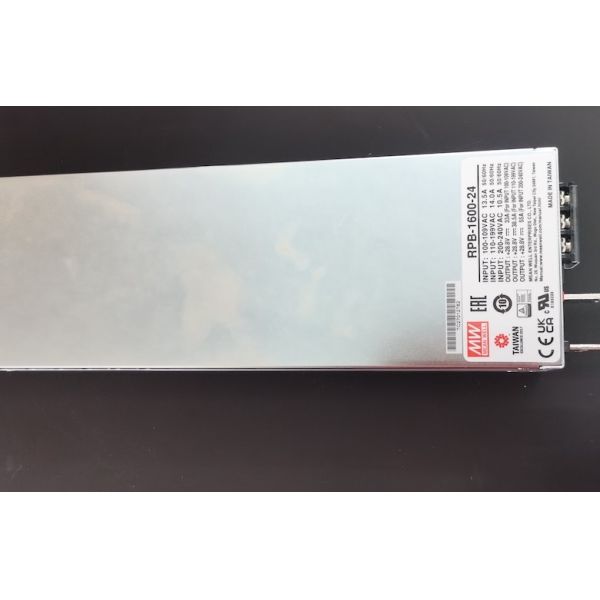

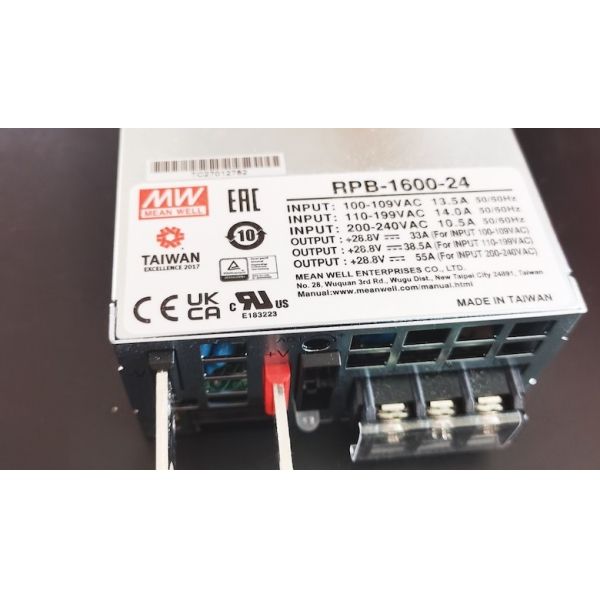

Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Specifications
Input voltage :
90 ~ 264VAC 250 ~ 370VDC
Warranty :
5 years
Output voltage :
28.8V
Output current :
55A
Efficiency :
92.5%
Delivery Time :
3-4 working days
Power :
1600W
Model Number :
RPB-1600-24
Place of Origin :
China
MOQ :
10
Price :
negotiate
Payment Terms :
T/T,Western Union,Paypal,Money Gram
Supply Ability :
10000pcs/month
Brand Name :
MEAN WELL
Certification :
CE,SGS,RoHS
Packaging Details :
carton
Description
Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver
Product Overview
MEAN WELL RPB-1600-24 is a genuine 1600W intelligent single output battery charger delivering 24V charging voltage at up to 55A, with built-in 3-stage charging curves for lead-acid (Gel, flooded, AGM) and lithium (LiFePO4, Li-ion) batteries, active PFC, PMBus communication, and a 1U low profile design (300 x 85 x 41mm) for UPS, marine, EV and industrial backup systems.
Specifications
Model No. RPB-1600-24
Input Voltage 90 ~ 264VAC 250 ~ 370VDC
Output Voltage 28.8V
Rated Power 1600W
Output Current 55A
Efficiency 92.5%
Frequency 47 ~ 63Hz
Key Features
  • Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
  • Built-in default 3 stage charging curves and programmable curve
  • Built-in I2C interface, PMBus protocol (optional CANBus protocol)
  • Universal AC input / Full range (withstand 300VAC surge input for 5 seconds)
  • Built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Output voltage and current programmable
  • Built-in OR-ing FET
  • Active current sharing up to 4800W (2+1)
  • Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
  • Optional conformal coating
  • 5 years warranty
Related Products
MODEL No. RPB-1600-12 RPB-1600-24 RPB-1600-48
BOOST CHARGE VOLTAGE(Vboost)(default) 14.4V 28.8V 57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default) 13.8V 27.6V 55.2V
CONSTANT CURRENT(CC)(default) 100A 55A 27.5A
OUTPUT VOLTAGE ADJ. RANGE
Note 5		 By built-in potentiometer, SVR
11.5 ~ 15V		 By built-in potentiometer, SVR
23.5 ~ 30V		 By built-in potentiometer, SVR
47.5 ~ 58.8V
RECOMMENDED BATTERY CAPACITY (AMP HOURS)
Note 3		 330 ~ 1000Ah 180 ~ 550Ah 90 ~ 270Ah
LEAKAGE CURRENT FROM BATTERY (Typ.)
Note 8		 <45mA
VOLTAGE RANGE
Note 4		 90 ~ 264VAC
127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.97/230VAC at full load
EFFICIENCY (Typ.) 91% 92.5% 93.5%
AC CURRENT (Typ.)
Note 4		 14A/115VAC
8A/230VAC		 15A/115VAC
8.5A/230VAC		 -
INRUSH CURRENT (Typ.) COLD START 35A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
Shipping Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CNF
Sample Availability YES
Standard Delivery Time 3-4 working days


FAQ

Q:What protections does the RPB-1600-24 offer?

A:The RPB-1600-24 includes battery under-voltage protection, battery no-connection detection, short circuit, over voltage (31.5-37.5V with shut-down and re-power recovery) and over temperature protections, plus a battery leakage current of less than 45mA for safe standby operation.

Q:What is the efficiency of the RPB-1600-24?

A:The typical efficiency of the RPB-1600-24 is 92.5% at full load, and the power factor is 0.97 typical at 230VAC under full load thanks to the built-in active PFC function, which reduces energy loss and heat in continuous charging applications.

Q:What are the operating temperature limits of the RPB-1600-24?

A:The RPB-1600-24 operates over an ambient temperature range of -30°C to +70°C with output derating at higher temperatures, and it can be stored at -40°C to +85°C. It also features temperature compensation of -3mV per degree Celsius per cell.
