Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Specifications
Brand Name :
Sunshineopto
Model Number :
HH-11MM-3535
Certification :
RoHS,SGS,CE
Place of Origin :
Shenzhen,China
MOQ :
1000
Price :
Need to negotiate
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
10000pcs/week
Delivery Time :
7-10 working days
Packaging Details :
cartons
Product Name :
Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance
Model No. :
HH-11MM-3535
Beam Angle :
30/45/60/90 degree
Material :
Optical PMMA
Lens Dimensions :
10.7x6.8mm
Matching for LED :
XPE/XTE/3535 LED
Surface :
Bead surface
Lens Transmittance :
93%
Working Temperature :
-35°C~ +90°C
Description
Smallest 30/45/60/90 Degree Bead Surface 3535 LED 1W 3W Optical Lens
High-performance optical lens designed for 3535 LED chips with multiple beam angle options and superior light transmission.
Product Overview
The Smallest Bead Surface 3535 LED Optical Lens with 30°, 45°, 60°, 90° and so on beam angles is an advanced LED lens module designed for high-efficiency lighting solutions. Manufactured from optical-grade materials, this lens is engineered to provide superior light transmission and precise beam control for a wide range of commercial, industrial, and outdoor applications.The lens features an impressive 93% light transmittance, ensuring that maximum light output is achieved with minimal loss, making it ideal for projects requiring high luminous efficiency and reliable performance. The different beam angle options (30°, 45°, 60°,90°and so on) offer flexibility for various lighting setups, whether focused or diffuse, and provide tailored light distributions for applications such as street lighting, security lights, floodlights, and high-bay lighting.Whether you're a lighting manufacturer, a wholesaler, or a contractor, the Smallest Bead Surface 3535 LED Optical Lens offers a cost-effective, energy-efficient, and durable solution for your lighting systems.
Product Specifications
Product Name Smallest 30/45/60/90 Degree Bead Surface 3535 LED 1W 3W Optical Lens
Model No. HH-11MM-3535
Power 1W | 3W
Holder Size 11mm Diameter
Lens Size 10.7x6.8mm
LED Chips XTE/XPE /3535 LED
Material Optical PMMA
Temperature Range -35 to +90°C
Transmittance 93%
Holder Color Black holder
Applications Spotlight, Wall-washer light, Ceiling light and so on
Beam Angle 15/30/45/60/90 degree
Quality Guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main Market Global Distribution
Product Advantages
  • Multiple Beam Angles for Versatile Applications,Versatile and customizable for precise lighting control across various commercial and industrial settings, helping clients optimize their lighting performance.
  • high light transmission rate maximizes the luminous output, providing brighter, more efficient lighting in indoor environments
  • With its bead surface design, this lens ensures uniform light distribution without hotspots or glare, creating a smooth, consistent beam. The precision optical design enhances lighting performance, ensuring that light is directed exactly where it’s needed
  • At just 22mm in diameter, this lens offers a compact design that allows for easy integration into existing LED modules, especially in space-constrained lighting systems
  • Optical-Grade PMMA for Durability,PMMA is also UV-resistant, ensuring that the lens will not degrade or yellow over time when exposed to sunlight
  • Strict manufacturing processes and comprehensive quality control
  • Premium raw materials used in production
  • Strong design and production capabilities

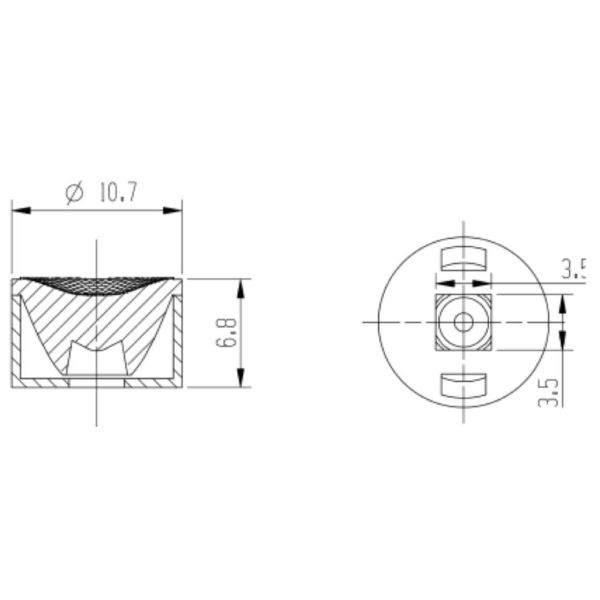

Lens Technical Drawings

Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance

Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance

Applications


Ideal for various LED lighting applications including wall washer lights, ceiling lights, spot lights, torch lights, High bay lights,LED down lights, and similar illumination systems.

More Products


Smallest Bead Surface 3535 LED Optical Lens with 30/45/60/90 Degree Beam Angle and 93% Transmittance

Shipping & Delivery Informations

DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CFR
Sample Availability Yes
Standard Delivery Time 3-4 working days
