56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-SL56W-90
Certification :
RoHS,SGS,CE
Place of Origin :
Shenzhen,China
MOQ :
10
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
10000pcs/months
Delivery Time :
3-4 working days
Packaging Details :
cartons
Price :
negotiate
Accessory :
AL PCB+ Silicone gasket + led lens
Lens Size :
256.6x78.6x7.1mm
PCB Size :
233x55x1.5mm
PCB Circuit :
7 series 8 parallel
LEDs :
SMD 3030 LEDs
Beam Angle :
30 , 60 , 90 , 30x70 , 60x90 , 145x70 , 155x80 degree
Material :
PC
Transmittance :
90%
Description
56W LED Lens Array with Silicone Gasket and Multiple Beam Angles
Product Overview

Our 56W LED lens array is designed for street lighting, outdoor LED fixtures, and urban lighting projects. Featuring high-transparency optical-grade PC lenses and high-temperature silicone gaskets, it ensures high luminous efficiency and long-term waterproof and dustproof performance. Multiple beam angles provide flexible lighting solutions for various project requirements.

Key Features

  • Lowest total cost solution for retrofitting existing Metal Halide or HPS bulbs
  • Reuses old housings, significantly reducing total cost
  • Industry-leading thermal management technology
  • Operating temperature range: -35°C to +70°C
  • Directional light means no light pollution, dark sky compliance
  • Uses high-quality Edison, P4 components
  • Higher lumen output compared to similar models
  • Reduces energy costs up to 90% compared to traditional lamps
  • Reduces maintenance costs up to 90%, almost maintenance-free
  • Top quality with 2-year warranty
Specifications
Product Name Optical LED Street Light Lens, 56W LED Lens Array For LED Industrial Light
Model No SUN-SL56W-90

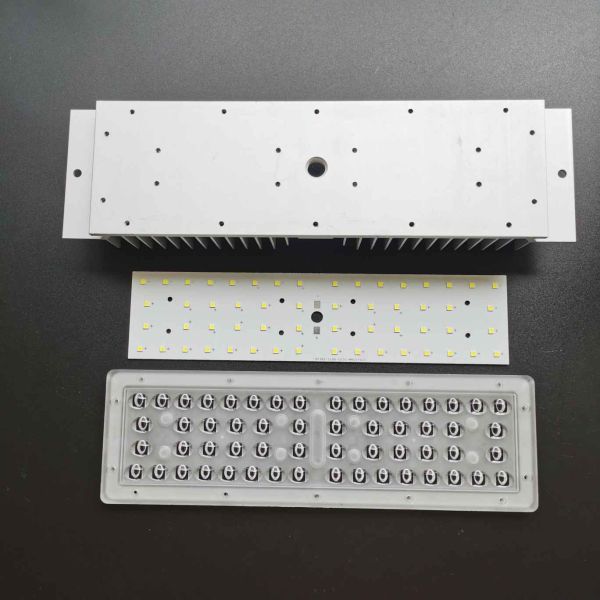

Main Parts 56W Array lens, silicon gasket, aluminium PCB with LEDs
Lens Size 256.6×78.6×7.1mm
PCB Size 233×55×1.5mm
PCB Circuit 7 series 8 parallel
Lens Material PC
PCB Material Aluminium
Transmittance 90%
LEDs SMD 3030 LEDs
Angle 30°, 60°, 90°, 30×70°, 60×90°, 145×70°, 155×80°
Quality Guarantee Defective items replaced or refunded upon providing picture evidence
Main Market Europe, South America, North America, Asia
56W LED Street Light Components Series
Model No. Lens Angle Lens Size (L×W×H) PCB Size (L×W×H)
SUN-L56W30 30° 256.6×78.6×7.1mm 233×55×1.5mm
SUN-L56W60 60° 256.6×78.6×7.1mm 233×55×1.5mm
SUN-L56W90 90° 256.6×78.6×7.1mm 233×55×1.5mm
SUN-L56W30×70 30×70° 256.6×78.6×7.1mm 233×55×1.5mm
SUN-L56W60×90 60×90° 256.6×78.6×7.1mm 233×55×1.5mm
SUN-L56W145×70 145×70° 256.6×78.6×7.1mm 233×55×1.5mm
SUN-L56W155×80 155×80°, Asymmetric 35° 256.6×78.6×7.1mm 233×55×1.5mm
Applications
Street lights, highway LED lamps, tunnel lamps, square lamps, road lamps, city lighting, parking spot lamps, track lighting fixtures, scenery areas, retail lighting, and other applications requiring high luminous flux.
Shipping & Delivery Informations
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CFR
Sample Availability YES
Standard Delivery Time 3-4 working days
FAQ

Q1: Is the 56W LED lens array waterproof?
A1: Yes, it features an IP65-rated silicone gasket, making it both waterproof and dustproof—ideal for prolonged outdoor use.
Q2: Can the beam angle be customized?
A2: Yes, we offer a variety of beam angles—including 60°, 90°, and 120°—and can also provide custom angles based on customer requirements.
Q3: Can it be used for retrofitting existing streetlights?
A3: Absolutely. Its modular design allows for the direct replacement of existing LED streetlight lenses.
