Specifications
Brand Name :
Rexroth pressure sensor
Model Number :
R165121320
Place of Origin :
china
MOQ :
1
Price :
$158
Payment Terms :
T/T
Supply Ability :
>100
Packaging Details :
each
Height of runner block :
29.9
Permissible ambient temperature :
-10 °C ... +80 °C
Size E2 (profiled rail systems) :
45
Pitch T guide rail :
60
Description

Product Description :

The Bosch Rexroth B.RUNNER BLOCK CS KWD - 025 - FNS - C1 - H - 1 (R165121320) is a top - tier ball runner block, perfect for linear motion applications that demand rigidity, precision, and smooth movement.

Key Features & Design:

  • Optimal Dimensions: With a 25 - size flange width, normal length, and standard height, and a body made of unalloyed steel CS.
  • Precision - Oriented Classes: Low preload class C and high accuracy class H minimize friction and maximize travel accuracy.
  • Mounting Flexibility: Allows attachments from above or below, with metal - threaded lube fittings on all sides and end - face fastening threads.
  • Enhanced Sealing: Integrated all - around sealing protects against contaminants while keeping system rigidity intact.

Technical Advantages:

  • Dynamic Performance: Reduces frictional oscillations under external load, and its patented entry zone boosts travel accuracy by up to six times.
  • Load - Bearing Capacity: Supports high load ratings in all four main directions, with two extra mounting screw holes for enhanced rigidity under lift - off and side loading.
  • Long - Term Lubrication: Offers years of maintenance - free long - term lubrication.

Applications:

  • Ideal for machine tools, automation systems, and other setups where high rigidity and precise movement are crucial.

Why Choose B.RUNNER BLOCK CS KWD - 025 - FNS - C1 - H - 1?

  • Interchangeability: Can be used with all SN/SNO ball guide rails and is interchangeable with guide rails of various accuracy levels.
  • Optional Innovation: An integrated inductive measuring system provides long - lasting wear - free operation.

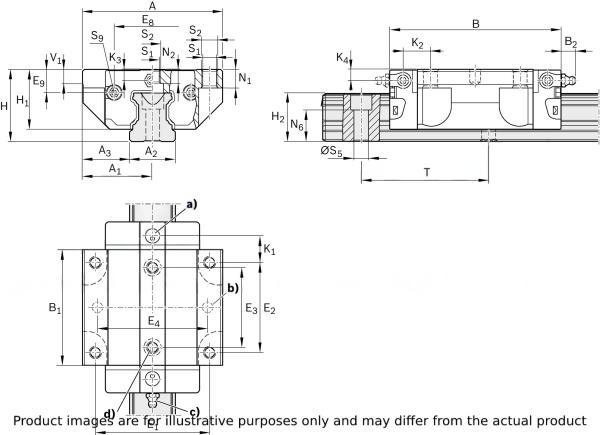

Attributes:

Height of runner block 29.9
Size E3 (profiled rail systems) 40
Footnote permissible ambient temperature (min ... max) 100 °C admissible for short time. For operation at negative temperatures, please consult us.
Footnote dynamic load capacity C Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Size E2 (profiled rail systems) 45
Footnote friction coefficient μ Without friction of seal
Permissible ambient temperature -10 °C ... +80 °C
Format FNS - flanged, normal, standard height
Self-aligning for compensation of misalignments Without self-alignment
Ball chain Without ball chain (standard)
Friction coefficient μ 0,002 ... 0,003
Size B tolerance (profiled rail systems) +0.5
Pitch T guide rail 60
Height of runner block with guide rail 36
Static load rating C0 35900
Dynamic torsional moment load capacity Mt 410
Size H2 with cover strip (profiled rail systems) 24.25
Preload class C1 - Low preload
Size B1 (profiled rail systems) 57.8
Size H (profiled rail system) 36
Friction coefficient μ min. 0.002
Accuracy class H - Highly accurate
Size K4 (profiled rail systems) 5.5
Size B with tolerance (profiled rail systems) 86,2 mm +0,5
Size K3 (profiled rail systems) 5.5
Size A1 (profiled rail systems) 35
Static torsional moment load capacity Mt0 510
Runner block or guide rail Runner block
Width of runner block 70
Size E8 (profiled rail systems) 38.3
Length of runner block 86.2
Linear guide type Ball rail system
Dynamic load capacity C 28600
Static longitudinal moment load capacity ML0 360
Size E9 (profiled rail systems) 11.5
Size N1 (profiled rail systems) 9.3
Size E1 (profiled rail systems) 57
Material (profiled rail systems) Carbon steel
Size N6 with tolerance (profiled rail systems) 15,2 mm ±0,5
Size S5 (profiled rail system) 7
Max. acceleration amax 500
Size A (profiled rail systems) 70
Size N6 tolerance (profiled rail systems) ±0.5
Size A3 (profiled rail systems) 23.5
Preload force 460
Size A2 (profiled rail systems) 23
Maximum permissible linear speed vmax 5
Lubrication With initial lubrication and preservation
Size S1 (profiled rail systems) 6.7
Size N2 (profiled rail systems) 7
Size N6 (profiled rail systems) 15.2
Friction coefficient μ max. 0.003
Size B (profiled rail systems) 86.2
Size H2 with cover strip (profiled rail systems) 24.45
Seal SS – Standard seal
Size K2 (profiled rail systems) 13.6
Size V1 7.5
Productgroup ID 17
Size K1 (profiled rail systems) 12.45
Dynamic longitudinal moment load capacity ML footnote Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Permissible ambient temperature (max) +80
Size S9 thread diameter x lead with tolerance (profiled rail systems) M3x5
Dynamic longitudinal moment load capacity ML 290
Size S2 (profiled rail systems) M8
Permissible ambient temperature (min) -10
Note: Max. acceleration amax If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2
Size T1 min (profiled rail systems) 13
Dynamic torsional moment load capacity Mt footnote Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Size S9 thread diameter x lead with (profiled rail systems) M3x5
Internal product information For LS – low-friction seal with external longitudinal seal
Weight 0.650
Nominal size 25
Size H1 (profiled rail systems) 29.9

is a fixed displacement motor with axial piston rotary group in swashplate design for hydrostatic drives in open and closed circuits. For axial piston units with swashplate design, the pistons are arranged axially with respect to the drive shaft. The pistons place a load on the swashplate and transfer the pressure-dependent torque via the cylinder to the drive shaft.

  • Low operating noise
  • Approved for high speeds
  • Long service life
  • Well-tried A10 rotary group technology
  • High power density
