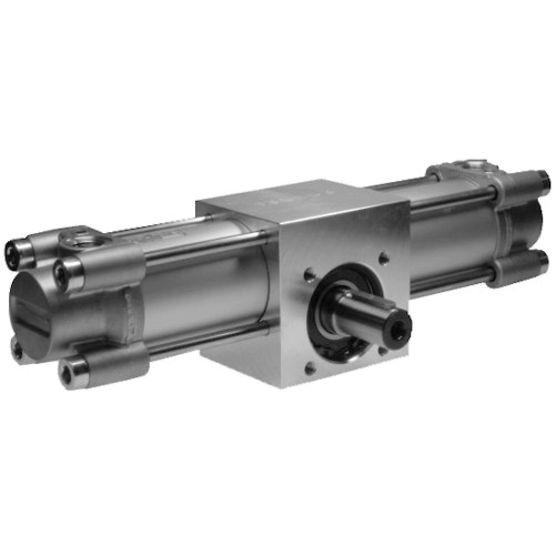

Industrial AVENTICS Series TRR Rotary Cylinder With Adjustable Angle TRR – 0822931206
Industrial AVENTICS Series TRR Rotary Cylinder With Adjustable Angle TRR – 0822931206
Specifications
Brand Name :
AVENTICS
Model Number :
AVENTICS Distributor, Series AES – R402001810
Place of Origin :
china
MOQ :
1
Price :
$128
Payment Terms :
T/T
Supply Ability :
>100
Description

AVENTICS Series TRR Is A Rotary Cylinder Based On Two ISO Cylinders And A Rack And Pinion Gearbox To Generate High Torques With Adjustable Angle. Series TRR – 0822931206

Product Description:

The AVENTICS Series TRR rotary cylinders are a game - changer in industrial applications. Built on two ISO cylinders and a rack - and - pinion gearbox, they're engineered to generate high torques with adjustable angles, making them incredibly versatile. These cylinders come in various models like 0822931206. They feature pneumatic cushioning for smooth operation and can have magnetic pistons for enhanced functionality. With piston diameters ranging from 32 mm to 80 mm, they cover a wide spectrum of applications. The adjustable rotation angles can reach up to 360°, allowing for flexible setups. The Series TRR cylinders are suitable for multiple industries, from general automation to manufacturing. They offer high torque - to - size ratios, ensuring reliable and robust performance. Their design also enables virtually maintenance - free operation. Choose AVENTICS Series TRR for high - performance, adaptable rotary cylinder solutions.

Product Features:

  • Torque 5 ... 111 Nm
  • Angle of rotation 90 ... 360°
  • double piston with rack
  • Adjustable pneumatic cushioning
  • Optionally with adjustable angle of rotation
DESCRIPTION:
Adjustable angle of rotation max. 360 °
Adjustable angle of rotation min. 0 °
Frame size TRR-40
Version double piston with rack
Cushioning pneumatically
adjustable
Magnetic piston with magnetic piston
Piston diameter 40 mm
Housing Aluminum
Sealing material Polyurethane
Compressed air connection G 1/4
Working pressure min./max. 2 … 10 bar
Ambient temperature min./max. -20 … 80 °C
Medium temperature min./max. -20 … 80 °C
Medium Compressed air
Max. particle size 5 µm
Oil content of compressed air 0 … 1 mg/m³
Cushioning pneumatically adjustable
Theoretical torque at 6.3 bar
Weight See table
The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre).
Material
Housing Aluminum
Cap Die-cast aluminum
Seal Polyurethane
Axis Steel
