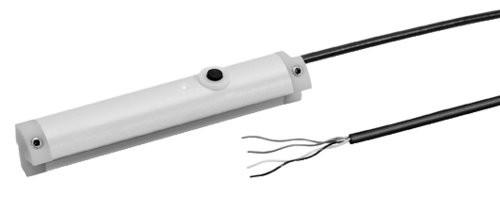

AVENTICS Series Measuring Sensor with cable SM6 R412010141 6mm Groove
AVENTICS Series Measuring Sensor with cable SM6 R412010141 6mm Groove
Specifications
Brand Name :
AVENTICS
Model Number :
Series SM6 – R412010141
Place of Origin :
china
MOQ :
1
Price :
$79
Payment Terms :
T/T
Supply Ability :
>100
key :
Certifications
value :
CE, FCC, RoHS
Description

Product Description:

The AVENTICS™ Series SM6 - R412010141 is a top - notch analog distance - measuring sensor. It continuously monitors piston movements within a 32 - mm range. With a 6 - mm groove, it's easy to install, either in a cylinder slot or on a profile. Boasting an IP67 protection class, it resists dust and water, ensuring reliable operation in tough environments. The sensor allows zero - point and measurement - range setting via a teach - in button. It offers high accuracy, linearity, and excellent repeatability with proven hall sensors. Ideal for industrial automation, it enhances system precision and efficiency.

Product Features:

  • - 6 mm groove
  • - with cable
  • - without wire end ferrule, tin-plated, 4-pin
  • - with distance measuring sensor, measurement range 32 ... 256 mm
  • - Analog - Direct mounting for series PRA, PRE, CCI, KPZ, SSI, GPC, CVI
  • - Indirect mounting for series TRB, ITS, 167, MNI, ICM, TRR
DESCRIPTION:
Type of contact Analog
Cable length 2 m
Housing Polyamide fiber-glass reinforced
Cable with cable
cULus
Protection class IP67
Number of wires 4-pin
Type without wire end ferrule, tin-plated
Slot width 6 mm groove
For series PRA,PRE,CCI,KPZ,SSI,GPC,CVI
Type with distance measuring sensor, measurement range 32 … 256 mm
Certificates cULus
Ambient temperature min./max. -20 … 70 °C
Protection class IP67
Output signal 0 – 10 V DC, 4 – 20 mA
Quiescent current (without load) < 25 mA
Maximum load (analog current output) 500 ?
Residual ripple ? 10 %
sampling interval 1 ms
Resolution max. measuring range 0,05 mm
Repetitive precision max. measuring range 0.1 mm
Linearity deviation 0,3 mm
Sampling speed 3 m/s
Display LED
LED status display Yellow
Vibration resistance 10 – 55 Hz, 1 mm
Shock resistance 30 g / 11 ms
Cable length L 2 m
Material
Housing Polyamide fiber-glass reinforced
Cable sheath Polyurethane

Product Details:

AVENTICS Series Measuring Sensor with cable SM6 R412010141 6mm GrooveAVENTICS Series Measuring Sensor with cable SM6 R412010141 6mm Groove
