Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace
Specifications
Brand Name :
Yan Yang Tian
Model Number :
Non-standard customized equipment
Place of Origin :
Jiangsu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5 Set/Sets per Month
Delivery Time :
Negotiable
Packaging Details :
Export package or according the customer's requirement
Chamber size :
35500mm(L)×910mm(W)×350mm(H)
Power :
500KW/380V
Operating temperature :
1250℃
Temperature uniformity :
± 5 ℃ (constant temperature zone)
Heating temperature zone :
22 groups, 44 points, temperature control up and down
Heating element :
Equal diameter silicon carbon rod
Description

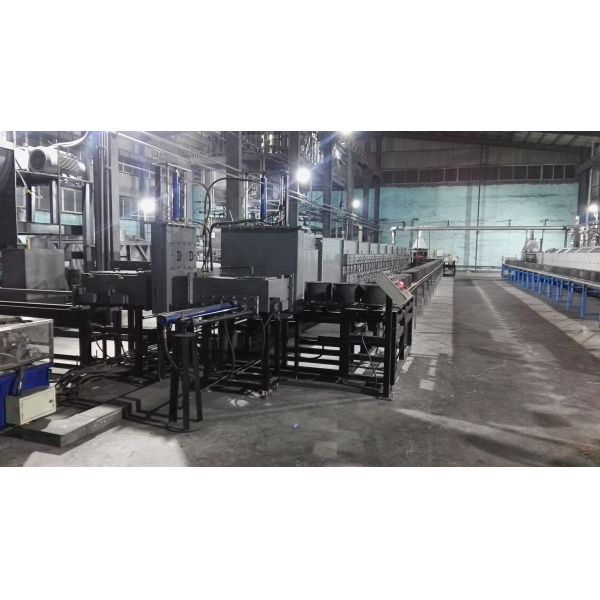

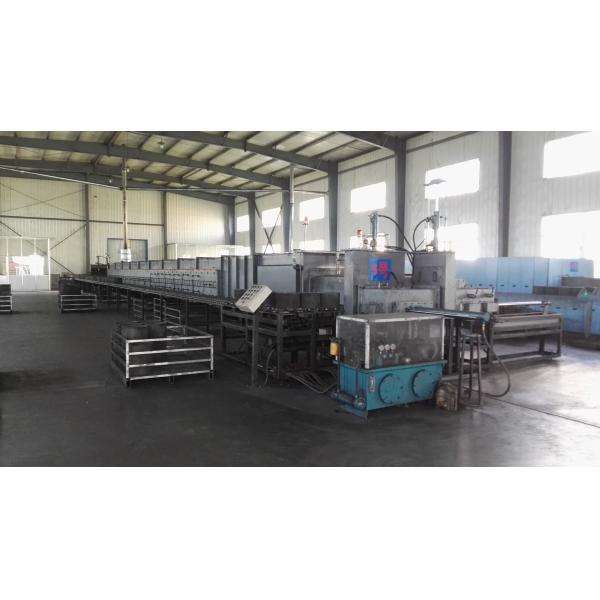

Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace

1, Furnace purpose
It is mainly used for carbonization of graphite negative electrode materials for lithium batteries in a nitrogen protective atmosphere.
►Control method : SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring.
►Sealing method : Front and rear double gates + replacement chamber seal
2, Parameters
The main technical parameters
Chamber size 35500mm(L)×910mm(W)×350mm(H)
Power 500Kw/380V
Operating temperature 1250℃
Temperature uniformity ± 5 ℃ (constant temperature zone)
Heating temperature zone 22 groups, 44 points, temperature control up and down
Heating element Equal diameter silicon carbon rod
Product into kiln mode Fully automatic hydraulic propulsion circulation system
Chamber atmosphere Nitrogen (99.999%)
Annual output 660 tons

Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace

Atmosphere Protection Lithium Battery Graphite Negative Electrode Material Push Plate Furnace

3, Package

Delivery period: 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement

If you have any special sintering process, please contact us, we will customize it for you!
