Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift
Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift
Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift
Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift
Specifications
Brand Name :
SUNNY
Model Number :
Freight elevator
Certification :
3C,CE
Place of Origin :
China
MOQ :
1 set
Price :
$7000~12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/ Year
Delivery Time :
15~30 days
Packaging Details :
container
Name :
Freight Elevator Lift
Load :
1000-2000kg
Speed :
0.5~1.0m/s
Drive :
VVVF
Warranty :
12 months after shipping
Application :
Office Building
Floor :
PVC
Materials :
Stainless steel
Model :
Freight Elevator Lift
Product :
Freight Elevator Lift
Description

1000kg AC Drive VVVF Stainless Steel Goods Freight Lift Factory

Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift

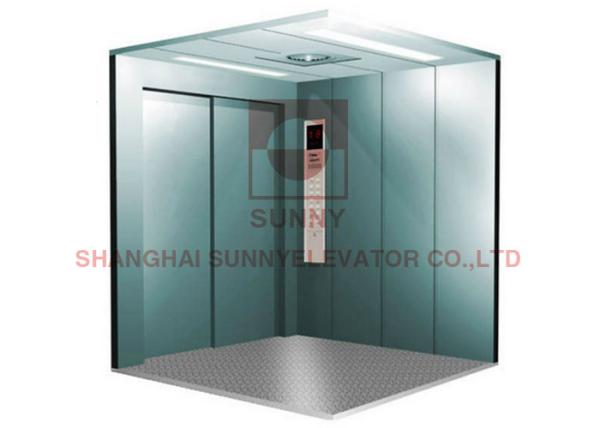

FREIGHT ELEVATOR

Our freight elevator is specifically designed for the transportation of cargoes,with many wide door opening modes and spacious yet sturdy car,suitable for the transportation of large cargoes and ensuring the safety when passengers and cargoes both present in the car.Technically,advanced CPU control is applied realizing contact free control to elevate the performance of the elevator,making it the best choice for cargo transportation in factories,warehouses and mails,etc.

Elevator parameters

Load (kg) Speed (m/s) Car dimension (mm) Door opening size(mm) Hoist-way size (mm) Machine room size(mm) Overhead height (mm) Pit depth (mm)
Inner size A x B Net Door-opening Width x Depth Width x Depth
Passenger elevator
1000 0.5 1400x1600 1000*2100 2200x2100 2200x3600 4200 1400
1.0
0.5 1200*2100
1.0
1600 0.5 1500x2300 1300*2100 2400x2800 2400x4000 4300 1400
1.0
0.5
1.0
2000 0.5 1900x2200 1600*2200 2950x2700 2950x4000 4500 1500
2800x2700 2850x4000

Construction Sketch

Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift

STANDARD CONFIGURATION

Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift
Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift

Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift

Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift

Vertical Cargoes 1.0m AC 1000kg Industrial Freight Elevator Lift

FAQ
1. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.


2. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.


3. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.


4. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
