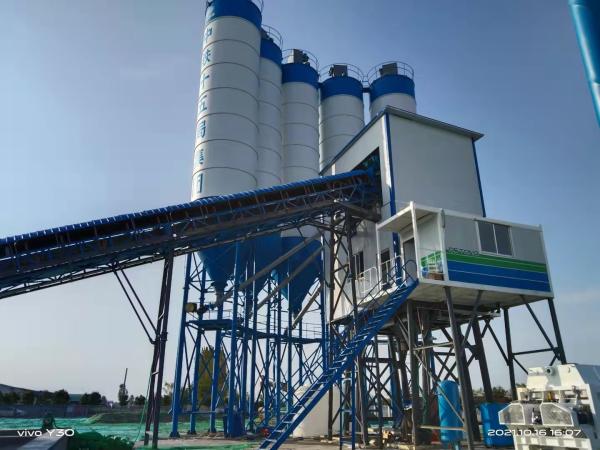

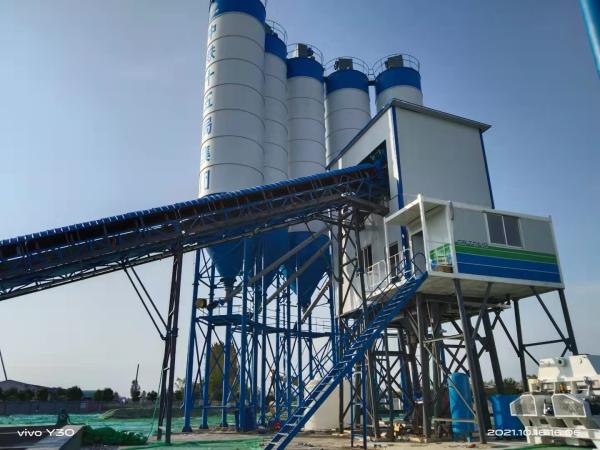

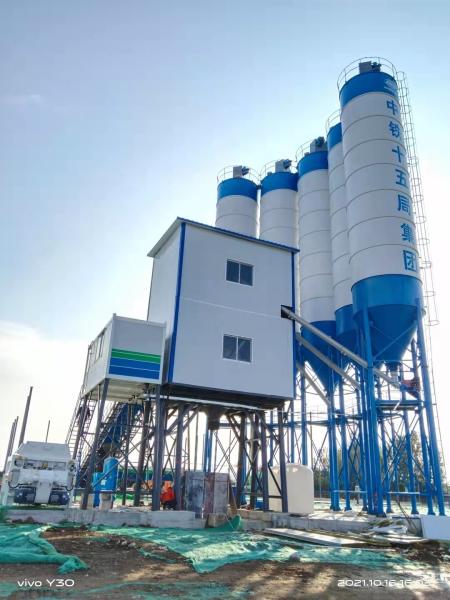

Advanced Control System Cement Mixing Station Hzs180
Advanced Control System Cement Mixing Station Hzs180
Advanced Control System Cement Mixing Station Hzs180
Advanced Control System Cement Mixing Station Hzs180
Advanced Control System Cement Mixing Station Hzs180
Advanced Control System Cement Mixing Station Hzs180
Specifications
Brand Name :
SUNNY
Model Number :
HSZ180
Place of Origin :
Hunan
MOQ :
1 set
Price :
USD 110000-150000/ SET
Payment Terms :
L/C,T/T,D/P,Western Union,MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
25-30 days
Packaging Details :
container
Maaterial :
cement, crushed stone, sands and so on
Application :
Building Works,Construction Projects,bridges,docks,airport
Control system :
automatic PLC control,totally automatic
Productivity :
≤180m3/h
Mixer :
JS3000 Twin-shaft Concrete Mixer
Warranty :
12 Months
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Description

HZS180 Central beton factory full automatic concrete plant 50-120 m3/h wet mix beton framework concrete batching plant p

HZS180 Manufacturer Concrete Batch Plant concrete batching plant


Belt Conveyor Type Concrete Batching Plant mainly consists of 5 major systems such as mixer, material weighing system, material conveying system, material storage system and control system and other ancillary facilities. It is equipped with the storage, batching, conveying, stirring, control and other devices of various raw materials required for precast concrete, and various aggregates, powders, admixtures, water, etc. A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.

pecification


Core Components and Structure

1. JS3000 Twin-Shaft Mixer

  • Central to the HZS180 plant is the JS3000 twin-shaft concrete mixer, known for its strong mixing performance and durable construction.
  • The dual horizontal shafts ensure thorough mixing of dry, semi-dry, plastic, and flowing concrete types within seconds.

2. PLD4800 Aggregate Batching Machine

  • Four-bin aggregate batcher with high-precision sensors and belt weighing system.
  • Capable of batching multiple types of aggregates with a high degree of accuracy.

3. Cement, Water & Additive Weighing Systems

  • Independent weighing modules with digital control ensure accurate material batching for every cycle.
  • Reduces waste and ensures the concrete mix meets required specifications every time.

4. Screw Conveyor & Cement Silo

  • Fast and efficient cement transfer from silos (typically 2×100 tons or more) to the mixer.
  • Optional silo dust collectors for environmentally friendly operation.

5. Fully Automatic Control System

  • PLC + industrial computer control with real-time data display, production reports, and fault diagnostics.
  • Manual, semi-auto, and auto modes allow flexibility in operation.
  • Remote monitoring and software upgrades available.

6. Aggregate Conveyor System

  • High-strength belt conveyor with anti-slip rollers and protective guards.
  • Smooth and efficient material transfer from storage to batching hopper



Name of parameter
HZS60
HZS90
HZS120
HZS180
HZS240
Theoretical productivity
60 M3/h
90 M3/h
120 M3/h
180 M3/h
240m³/h
Model of mixer
JS1000
JS1500
JS2000
JS3000
JS4000
Mixing motor power
2x18.5Kw
2x30Kw
2x37Kw
2x55Kw
2*75Kw
Cycle period
60s
60s
60s
60s
60s
Volume of mixer
1000L
1500L
2000L
3000L
4000L
Unloading height
4.0m
4.0m
4.0m
4.0m
4.0m
Measuring range and precision of aggregate
(600-2000)≤±2%
(700-2400)≤±2%
(1000-3600)≤±2%
(1600-4800)≤±2%
(1600-4800)≤±2%
Measuring range and precision of cement
(300-1200)≤±1%
(300-1200)≤±1%
600-1800)≤±1%
(800-2400)≤±1%
(800-2400)≤±1%
Measuring range and precision of coal ash
(200-600)≤±1%
(200-600)≤±1%
(300-900)≤±1%
(400-1200)≤±1%
(400-1200)≤±2%
Measuring range and precision of water
200-600)≤±1%
(200-600)≤±1%
(200-700)≤±1%
(360-1200)≤±1%
(360-1200)≤±1%
Measuring range and precision of admixture
20-60)≤±1%
(20-60)≤±1%
(30-100)≤±1%
(36-120)≤±1%
(36-120)≤±1%


Advanced Control System Cement Mixing Station Hzs180

Features of concrete batching plant:

  1. High Production Capacity: The HZS180 concrete mixing plant has a theoretical production capacity of 180 cubic meters per hour. This high capacity allows for efficient and continuous production of large volumes of concrete, ensuring timely completion of demanding construction projects.

  2. Advanced Mixing System: The plant is equipped with a twin-shaft concrete mixer, which ensures thorough and efficient mixing of aggregates, cement, water, and additives. The twin-shaft mixer operates at a high speed, delivering a homogeneous mixture with excellent consistency and quality.

  3. Precise Weighing and Dosing: The HZS180 batching plant utilizes advanced weighing systems for accurate measurement and dosing of materials. It includes precision sensors and load cells that ensure precise weighing of aggregates, cement, water, and additives. This precise control of material ratios results in consistent and high-quality concrete mixes.

  4. Modular Design and Easy Installation: The HZS180 batching plant features a modular design, which simplifies its installation, transportation, and relocation. The plant consists of multiple modular units that can be easily assembled and disassembled, reducing setup time and allowing for efficient deployment to different job sites.


Q: What’s your after-sale service?
A:12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well. Q:What’s your delivery time?
A:The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q. How long do you warranty your concrete batching plant?
A:We shall guarantee that the commodity for 1 year, excluding the wearing parts, and we will offer our customers the wearing parts all the time with favorable price.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will
feedback you immediately. Also on-site technician service available as request.
Q.How can we install the plant?
A:Our engineer will make installation drawing before we send the machine, and our engineer will go oversea to guide and train the installation after everything is already set in customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
