7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
Specifications
Brand Name :
Sunchonglic
Model Number :
FPV-7.5KVA
Place of Origin :
China
MOQ :
5pcs
Price :
US $274.62-1273.85
Payment Terms :
,T/T
Supply Ability :
100000pcs/mon
Delivery Time :
20-60 work days
Packaging Details :
Paper Box
Product name :
7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input
LCD :
2 lines of character display
AC input range(Vac) :
150VAC-300VAC
Peak output power(W) :
6000
Rated output current(A) :
22.7A
PV max input current (Idc) :
18
Description

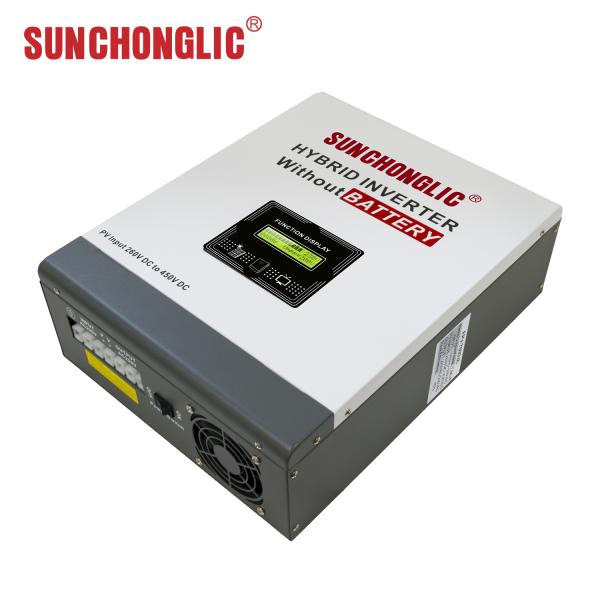

7500w Hybrid Solar Inverter Without Battery off Grid MPPT 450V PV 220V Input


>>>Product Description


What is feature of hybrid solar inverter without battery 7500w 7.5kw off grid MPPT 450V PV ?

1. PV array voltage input range is from 260V DC to 450V DC, allowing for a wide range of solar panel configurations .

2. No extra external battery is needed, making this solar system more economical and affordable for home use .

3. The system provides a grid output of 220V AC, suitable for direct connection to the electrical grid .

4. It also includes a built-in 12V DC output interface (optional), which can be used for additional devices or systems .

5. Various safe protections are included, such as anti-islanding defense, to ensure the system operates safely under different conditions .

6. The system is equipped with a built-in uninterrupted power supply, ensuring continuous power during grid outages or other disruptions .


7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input


>>>Product Specifications


Model FPV-7.5KVA
PV DC input paramerters Maximum input power(W) 5000W
PV input voltage range(Vdc) 260VDC-450CVDC
PV max input current(Idc) 18
AC input parameters AC input range(Vac) 150VAC-300VAC
AC rated voltage(Vac) 220VAC
AC output parameters Peak output power (W) 6000
Rated output power(W) 5000
Output waveform Pure sine wave
Output voltage range(Vac) 160VAC-240VAC
Maximum output current(A) 25A
Rated output voltage(Vac) 220V/230
Rated output current(A) 22.7A
Output frequency range(Hz) 40Hz-50Hz
Current harmonics(at rated power) ＜5%
Maximum efficiency 95%
Environmental parameters Operating temperature range(℃) -25~+60
Relative humidity 0-95% No condensation
Altitude(m) ≤2000
Cooling method Fan cooling
Nighttime energy consumption(W) ＜0.2
Noise decibel(dB) ＜50
Communication LCD 2 lines of charcter of display
Mechanical properties Dimensions(Width x depth x heigh)mm 375*330*125
Weight(KG) 5.6


>>>Our Factory

We are a seasoned manufacturer with extensive years of experience in the production of Solar Energy Photovoltaic
Products, specializing in the design and manufacturing of high-quality solar energy solutions. Our factory specializes
in manufacturing a diverse range of products, including Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers,
and Solar Charge Controllers, among others, to meet the varying needs of both residential and commercial customers.
For additional details, please reach out to us at any time!

>>>Production Process


7500w hybrid solar inverter without battery off grid mppt 450v pv 220v input

>>>FAQ


Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T and Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
