SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
Specifications
Brand Name :
Sunchonglic
Model Number :
SUNer-D 3600-24
Place of Origin :
China
MOQ :
100pcs
Price :
US $9.09-67.82
Payment Terms :
T/T
Supply Ability :
100000pcs/mon
Delivery Time :
20-60 work days
Packaging Details :
Paper Box
Product name :
Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology , Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
Rated Output Power :
3600VA/3600W
Max. PV to AC Efficiency :
96.50%
Battery Type :
lead-acid /Li-ion
Nominal Output Frequency :
50/60Hz
Description
3600W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS
Integrating high-performance power conversion with robust UPS functionality, this 24V DC to 220V AC hybrid inverter charger delivers a reliable energy solution.
Key Features

• Built in dustproof components
• Capable to operate without Battery
• Wider PV input voltage range:40V~500Vdc
• Excellent solar MPPT performance, efficiency up to 99.5%
• PV generated energy Total and Daily information
• Battery wake-up function
• Battery equalization function to optimize battery performance and extend lifecycle

SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function

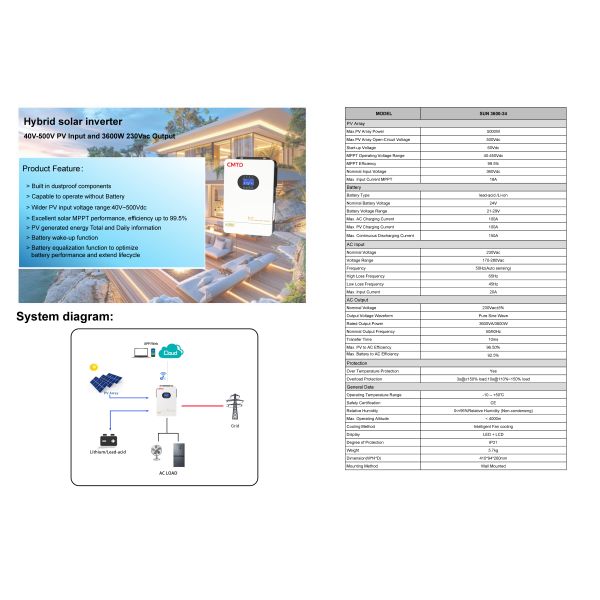

Technical Specifications
Model SUN-D 3600-24
PV Array
Max.PV Array Power 5000W
Max.PV Array Open-Circuit Voltage 500Vdc
Start-up Voltage 60Vdc
MPPT Operating Voltage Range 40-450Vdc
MPPT Efficiency 99.5%
Nominal Input Voltage 360Vdc
Max. Input Current MPPT 18A
Battery
Battery Type lead-acid /Li-ion
Nominal Battery Voltage 24V
Battery Voltage Range 21-29V
Max. AC Charging Current 100A
Max. PV Charging Current 100A
Max. Continuous Discharging Current 150A
AC Input
Nominal Voltage 230Vac
Voltage Range 170-280Vac
Frequency 50Hz(Auto sensing)
High Loss Frequency 65Hz
Low Loss Frequency 45Hz
Max. Input Current 20A
AC Output
Nominal Voltage 230Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 3600VA/3600W
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Max. PV to AC Efficiency 96.5%
Max. Battery to AC Efficiency 92.5%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150% load; 10s@110%~150% load
General Data
Operating Temperature Range -10°C~ +50°C
Safety Certification CE
Relative Humidity 0~95%Relative Humidity (Non-condensing)
Max. Operating Altitude < 4000m
Cooling Method Intelligent Fan cooling
Display LED + LCD
Degree of Protection IP21
Weight 5.7kg
Dimension(WHD) 410*94*260mm
Mounting Method Wall Mounted

Manufacturing Excellence
With over 20 years of expertise in solar photovoltaic technology, we operate a state-of-the-art manufacturing facility specializing in mission-critical components. Our product line includes efficient solar power inverters, dependable AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Sunchonglic products are synonymous with unwavering quality, designed and built to provide consistent, high-performance operation.
Production Process
SUN-D Hybrid Solar Inverter Charger : 3600W 24V featuring MPPT Technology, Pure Sine Wave Output , and Uninterruptible Power Supply ( UPS ) Function
Frequently Asked Questions
Are you the factory manufacturer?
We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.
How to select a suitable product?
Simply tell us your specific requirements, and we will recommend the most suitable solution for your needs.
What are your payment methods?
We accept T/T, Trade Assurance, and other secure payment options.
What price terms can you offer?
We can accommodate various price terms including EXW, FOB, CIF, and others based on your preferences.
Where is your main market?
Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.
Our products are widely recognized and trusted by clients worldwide and can meet continuously changing economic and social needs. We sincerely welcome new and existing customers from around the world to contact us for future business relationships and mutual success!
