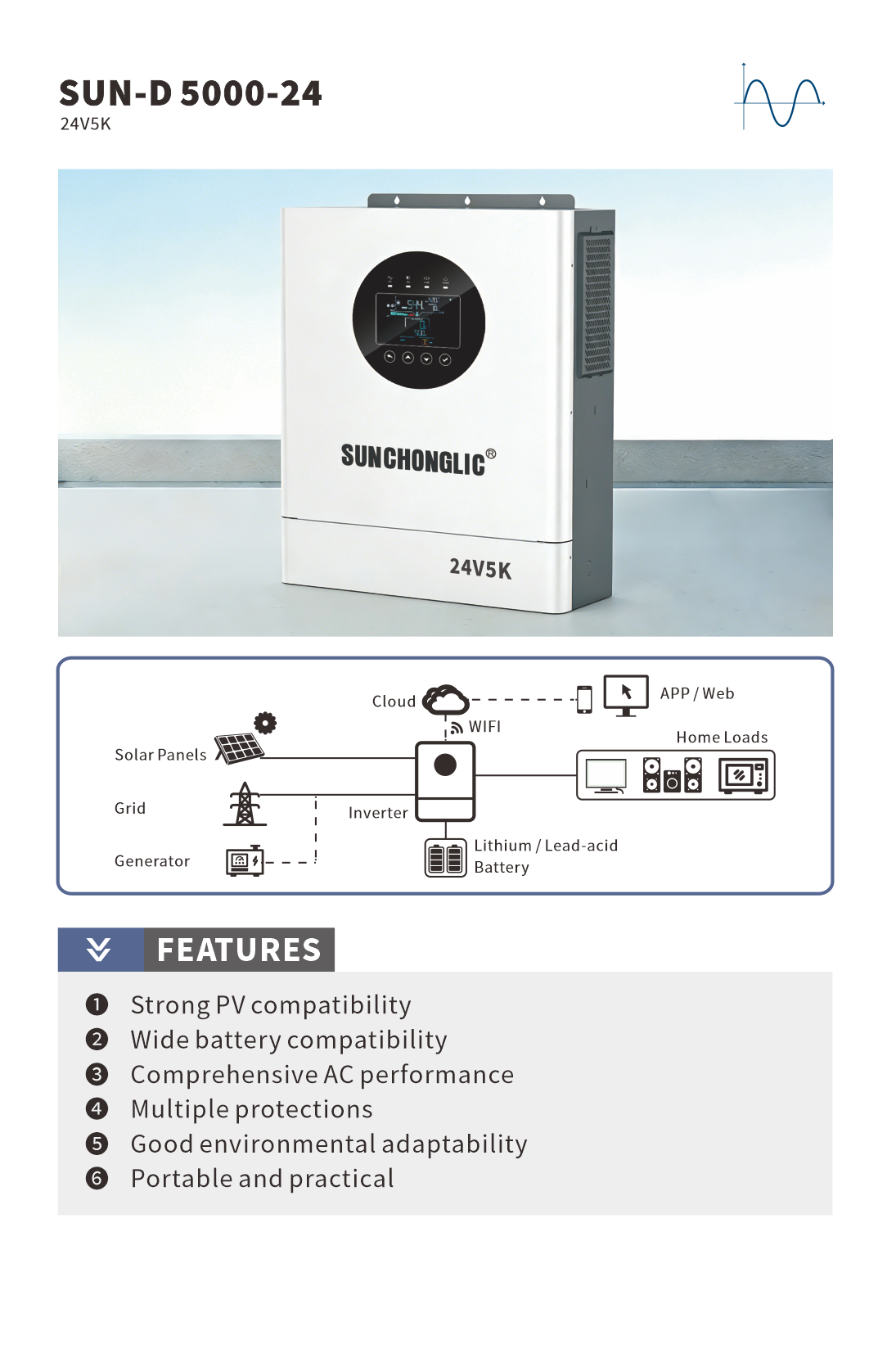

5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
Specifications
Brand Name :
Sunchonglic
Model Number :
SUNer-D 5000-24
Place of Origin :
China
MOQ :
100pcs
Price :
US $9.09-67.82
Payment Terms :
T/T
Supply Ability :
100000pcs/mon
Delivery Time :
20-60 work days
Packaging Details :
Paper Box
Product name :
5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter
Solar Charger Type :
MPPT
Max. PV Charging Current :
160A
AC Input Voltage Range :
170-280Vac
Max. PV to AC Efficiency :
96.50%
Cooling Method :
Intelligent Fan cooling
Description

5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter


>>>Product Description


What is feature of 5000w 24v pure sine wave inverter mppt hybrid inverter charger with ups DC - AC Inverter?

  1. Equipped with an LCD display

  2. Boasts a wide MPPT range of 18-125V

  3. Features a power factor of 1.0

  4. Includes a built-in 60A solar charger

  5. Provides pure sine wave output

  6. Offers comprehensive all-around protection

5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function


>>>Product Specifications


MODEL SUN-D 5000-24
PV Array
Max. PV Array Power 9000W
Max. PV Array Open-Circuit Voltage 500Vdc
Start-up Voltage 80Vdc
MPPT Operating Voltage Range 60-450Vdc
MPPT Efficiency 99.50%
Nominal Input Voltage 360Vdc
Max. Input Current MPPT 27A
Battery
Battery Type lead-acid / Li-ion
Nominal Battery Voltage 24V
Battery Voltage Range 21-29V
Max. AC Charging Current 160A
Max. PV Charging Current 160A
Max. Continuous Discharging Current 160A
AC Input
Nominal Voltage 230Vac
Voltage Range 170-280Vac
Frequency 50Hz(Auto sensing)
High Loss Frequency 65Hz
Low Loss Frequency 45Hz
Max. Input Current 40A
AC Output
Nominal Voltage 230Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 5000VA/5000W
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Max. PV to AC Efficiency 96.50%
Max. Battery to AC Efficiency 93.50%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150% load;10s@110%~150% load
General Data
Operating Temperature Range -10 - - +50℃
Safety Certification CE
Relative Humidity 0~95% Relative Humidity(Non-condensing)
Max. Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Degree of Protection IP21
Weight 8.5kg
Dimension(W*H*D) 394*109*330mm
Mounting Method Wall Mounted



>>>Our Factory

Leveraging our extensive expertise as a long-standing manufacturer in the solar photovoltaic sector, we operate

a state-of-the-art facility dedicated to producing mission-critical components: efficient solar power inverters, dependable

AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Synonymous

with unwavering quality, Sunchonglic products are designed and built to provide consistent, high-performance operation.

Connect with us to discover how our proven solutions can meet your specific energy needs!


>>>Production Process


5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function

>>>FAQ


Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
