Specifications
Brand Name :
Sunchonglic
Model Number :
BDZ-30A
Place of Origin :
China
MOQ :
100pcs
Price :
US $3.98-27.89
Payment Terms :
T/T
Supply Ability :
100000pcs/mon
Delivery Time :
20-60 work days
Packaging Details :
Paper Box
Product name :

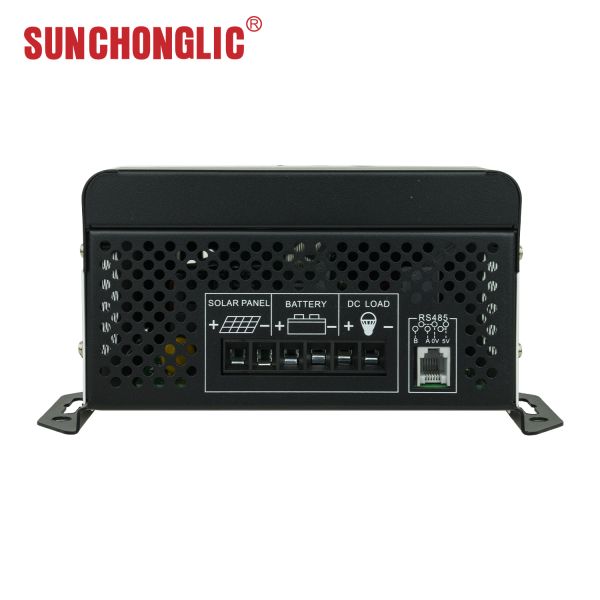

30A 12V - 120V Adjustable MPPT Solar Charge Controller Conttinuous Output 40A
Maximum Open-circuit Input Voltage of Photovoltaic :
230V
Charging Mode :
MPPT Automatic Maximum Power Point Tracking
Charging Current :
30A-60A
Maximum Photovoltaic Input Power :
Battery charging voltage (V)*Maximum charging current (A)
Description

30A 12V - 120V Adjustable MPPT Solar Charge Controller Conttinuous Output 40A


>>>Product Description


What is feature of 30A 12v - 120v adjustable mppt solar charge controller conttinuous output 40a ?

1. High-Efficiency MPPT: Conversion efficiency up to 99.9%, maximizing solar energy harvest.
2. Multi-Battery Compatibility: Auto-detects lead-acid batteries and supports various lithium batteries (LiFePO4/NCM) with customizable voltage settings.
3. High PV Input Voltage: Maximum open-circuit voltage of 490V, compatible with high-voltage PV arrays.
4. Smart Display & Communication: Features an LCD for key data and supports RS485 (Modbus) for easy system monitoring.
5. Comprehensive Protection: Includes overcharge, over-discharge, overload, short-circuit, and low-voltage disconnect (LVD) protection.
6. Wide Environmental Tolerance: Operates from -20℃ to +40℃ and at altitudes up to 3000m.


>>>Product Specifications


Enhanced money
MPPT Model 30A-60A 70A-80A 100A-150A
BDZ
Charging Mode MPPT Automatic Maximum Power Point Tracking
Charging Method MPPT Maximum Power Point Tracking, Fast Charging, Constant Voltage, Float Charging
Battery Type Lead-acid Battery Automatically recognizes 12V, 24V, 48Vand can be set from 12V to 120V,
Gel Battery Manually set from 12V to 120V
Lithium Iron Phosphate Battery 3.2V Adjustable in series from 2S to 45S
Lithium-ionBattery
3.7V
Adjustable in series from 25 to 45S
User-defined Battery Manually set charging voltage range from 8V to 170V
Lithium Battery Activation
Function
After manually setting the battery type, with photovoltaic input, there is a charging voltage output (activates lithium battery)
Maximum Open-circuit Input
Voltage of Photovoltaic
230V
Photovoltaic Start Charging Photovoltaic input voltage is greater than battery voltage + 2V
Charging Current 30A-60A 70A-80A 100A-150A
Maximum Photovoltaic
Input Power
Battery charging voltage (V)*Maximum charging current (A)
DC Output Function Continuous output 20A Continuous output 40A,
Display LCD display (total power generation, daily power generation, DC output light time control, photovoltaic parameters, battery parameters), bilingual display
Communication: Uses Modbus
communication method
6-pin RS485 communication port (see pin definition diagram)
Operating Environment Temperature -20°C to +40
IP Protection Rating IP21
Altitude 0-3000m
MMReference Product
Dimensions (mm)
218*165*100 267*178*100 318*222*110
Reference Product
Net Weight (kg)
1.8 2.5 3.75
Reference Product Gross
Weight (kg)
2.1 2.85 4.2



>>>Our Factory


As a specialized manufacturer in solar photovoltaic solutions with a rich heritage spanning over two decades, our facility offers a comprehensive range of energy conversion products including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. The Sunchonglic series delivers certified performance with multiple international compliance certifications, ensuring reliable renewable energy conversion for diverse applications.

For detailed product specifications or inquiries, feel free to contact our team for expert assistance in optimizing your solar energy systems!


>>>Production Process


30A-60A Charging Current MPPT Solar Charge Controller with 230V Maximum Open-circuit Input Voltage and Multi-Battery Compatibility

>>>FAQ


Q1. Are you the factory manufacturer?
A1. With over two decades of expertise in solar energy photovoltaic solutions, we are the

original manufacturer and technology pioneer specializing in integrated solar products. Our

core innovations include hybrid solar inverters that combine inverter and controller

functionalities , power inverters, battery chargers, solar controllers, and comprehensive

solar systems.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
