2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
Specifications
Brand Name :
SUNCAR
Model Number :
2438U1106R100
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Trial order acceptable
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability :
2800 set per month
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product Name :
Kobelco Cylinder Seal Kit
Part Number :
2438U1106R100
AppliC.A.Tion :
Excavator
C.A.Tegory :
Hydraulic Cylinder Seal kit
Preservation Notice :
Closed, dry and avoid the sun
Type :
Kobelco replacement
Description

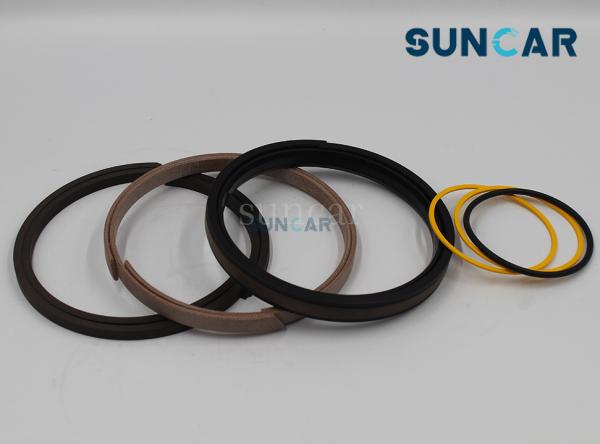

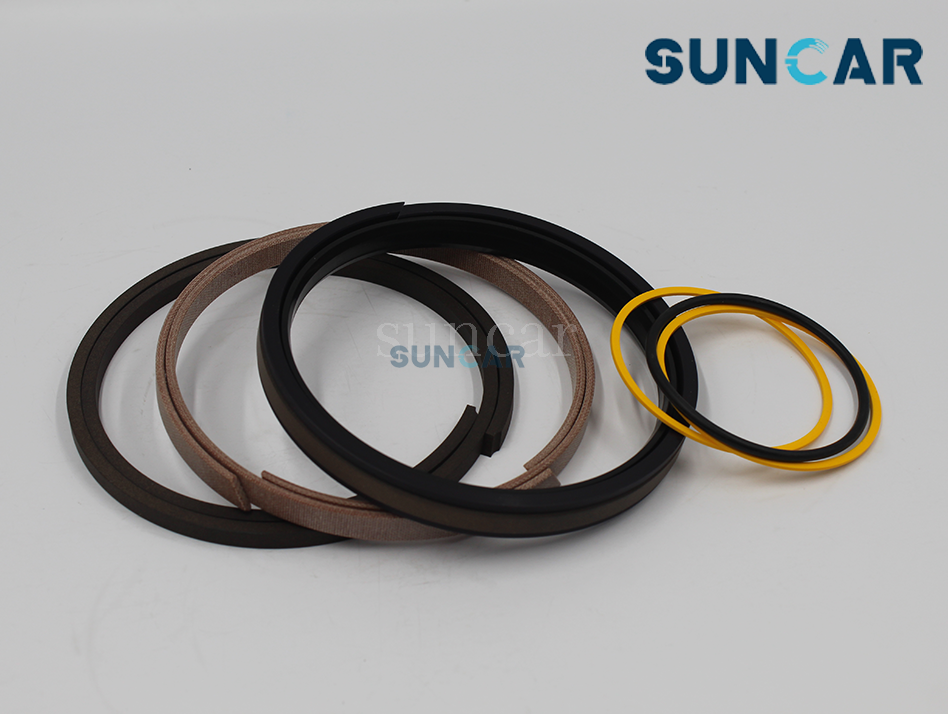

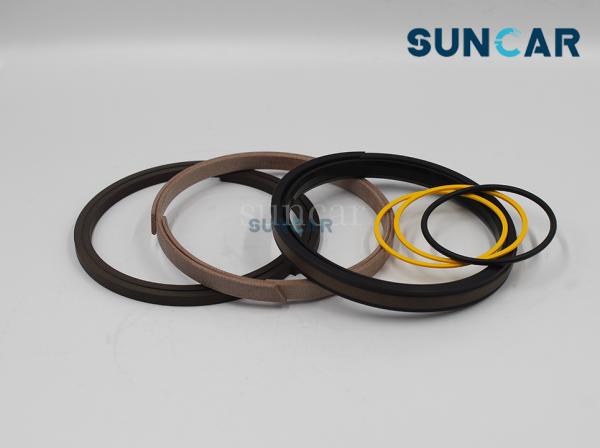

Boom Cylinder Oil Seal Repair Kit - 2438U1106R100
Compatible replacement oil seal repair kit for Kobelco excavator boom cylinders. Designed to restore hydraulic performance and prevent fluid leaks.
Product Specifications
Product Name 2438U1106R100 Arm Cylinder Oil Seal Repair Kit
Compatible Models Kobelco Excavator SK200, SK200LC, SK200-3, SK200-4, SK210, SK210LC
Brand SUNCAR
Origin China (Mainland)
Condition 100% New
Certification ISO9001
Packing PP bag inside, carton box outside
Key Features
  • Long service life and durability
  • High chemical resistance
  • Standard size specifications
  • OEM & ODM customization available
Cylinder Repair Operation Guidelines
  1. Remove the cylinder from the machine
  2. Disassemble head assembly and rod assembly from stick cylinder group
  3. Inspect cylinder assembly for potential replacement if seal issues occur shortly after installation
  4. Measure seal kits before installation
  5. Conduct testing after cylinder assembly repair before reinstalling on machine
Compatible Kobelco Models
SK30SR-3
SK200SRLC
SK235SRLC-1E
SK170-8
SK100-5
SK200SR-1S
SK235SRLC-1ES
SK200LC-6
SK480LC
SK160LC-6E
SK235SRNLC-1E
SK235SR
SK17SR-3
SK235SRLC-2
SK235SRNLC-1ES
SK200-6
SK024
SK200LC-6ES
SK55SRX
SK200LC
SK235SR-1ES
SK015
SK170-9
SK235SRLC-1E
SK200SR
SK160LC
SK235SR-2
SK210LC
SK215SRLC
SK200
SK210LC-6E
Parts Diagram & Components
2438U1106R100 Boom Cylinder Oil Seal Repair Kit Fits Kobelco Excavator SK200 SK200LC SK200-3
Position Part Number Quantity Parts Name
.LQ01V00030F1[1]CYLINDER ASSY
1NA[1]NOT SERVICED
2NA[1]NOT SERVICED
3YY01V00048S003[1]CYLINDER HEAD
42438U1106S17[1]BUSHING
52438U959S5[1]RING
6YN01V00151S006[1]RING
7YN01V00151S007[1]RING
82438U959S8[1]RING
9LP01V00008S009[1]RING
10ZD12G12000[1]O-RING
112438U1102S12[1]O-RING
12ZS23C16075[12]SCREW, Hex Socket Head
13LQ01V00030S013[1]BEARING
14LQ01V00030S014[1]PISTON
152438U675S20[1]RING
16YM01V00008S017[2]RING
17LQ01V00030S017[2]RING
182438U675S28[2]RING
192438U999S21[1]SET SCREW
202436U330S16[1]BALL
21YN12B02221P1[4]BUSHING
22YN01V00153S022[4]SEAL
23NA[1]NOT SERVICED
24NA[1]NOT SERVICED
25YN12B02221P1[2]BUSHING
K.LQ01V00030R100[1]SEAL KIT
K.LQ01V00030R200[1]REPAIR KIT
K.LQ01V00030R300[1]REPAIR KIT
K.LQ01V00030R400[1]KIT
K.LQ01V00030R500[1]KIT
K.LQ01V00030R600[1]KIT
K.LQ01V00030R700[1]KIT
