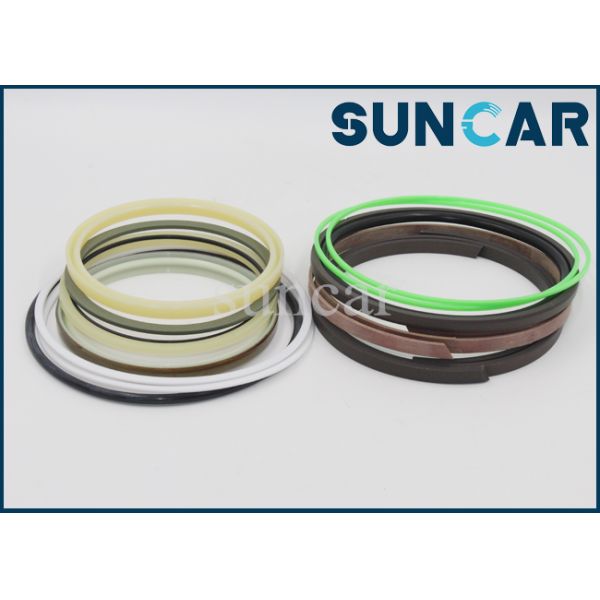

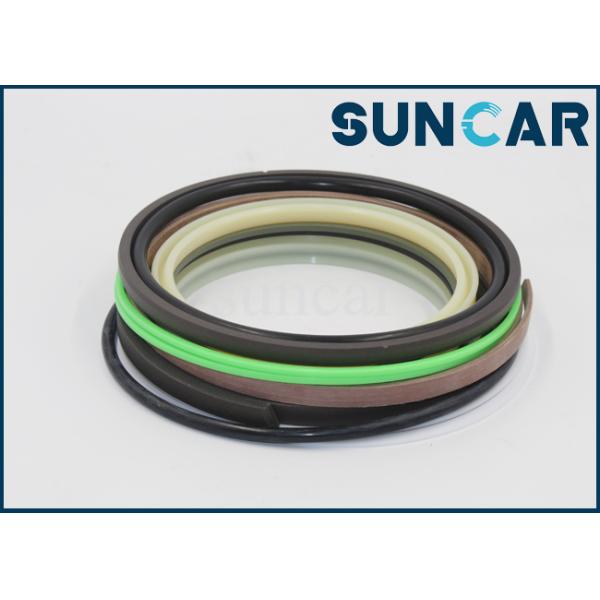

LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9
LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9
LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9
LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9
LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9
LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9
Specifications
Brand Name :
SUNCAR
Model Number :
LC01V00054R300 Kobelco SK350-8, SK350-9
CertifiC.A.Tion :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Trial order acceptable
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability :
800 set per week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product Name :
LC01V00054R300 Arm Cylinder Seal Kit
Feature :
Resistance to high pressure, oil, weather, abrasion, solvent
Part Number :
LC01V00054R300
Rod :
120 mm
Bore :
170 mm
Cylinder :
LC01V00054F1, LC01V00054F2
Description

LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9

Product Name LC01V00054R300 Arm Cylinder Seal Kit
Model Number Kobelco SK350-8, SK350-9
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number LC01V00054R300
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Size Standard size
Applicable Industries Machinery repair shops, construction works, energy & mining
CertifiC.A.Tion ISO9001
Condition 100% New
C.A.Tegory Cylinder seal kit
Warranty Unavailable
Customized OEM & ODM are welcomed
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Preservation Notice Closed, dry and avoid the sun
Rod 120 mm
Bore 170 mm
Cylinder LC01V00054F1, LC01V00054F2

Basic Requirements for Sealing Materials:

1. Have certain mechanical properties, such as tensile strength, elongation, etc.;

2. Appropriate elasticity and hardness, small compression set;

3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;

4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;

5. Good oxygen resistance and aging resistance, durable;

6. Abrasion resistance, no corrosion to metal;

7. Easy to shape and process, low price.

Why Choose Us?

1. We are professional sellers and exporters.

2. More than 10 years of industry experience.

3. Professional production technology, product good quality and Low price.

4. Fast delivery and support OEM/ODM order.

5. Large stock, over 30,000 sizes and more than 1 million pieces in stock.

6. We have the full range of excavator parts and stable and high quality production line.

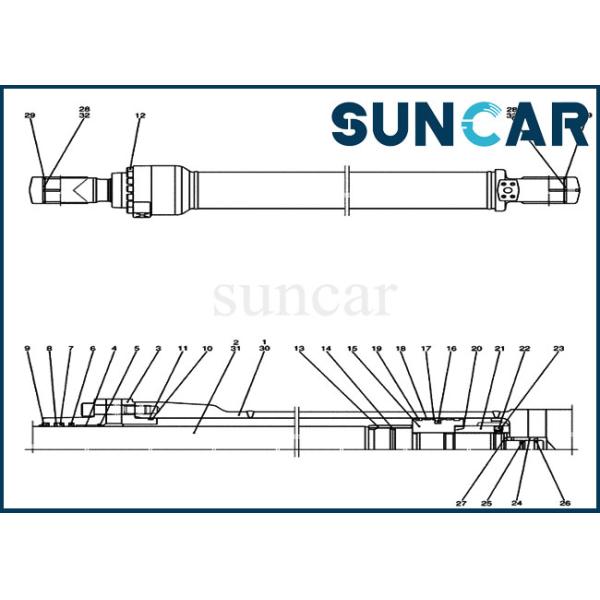

Related Parts:

Pos. Part No Qty Parts name Comments
. . LC01V00054F1 [1] CYLINDER KOB Assembly
1 NSS [1] NOT SOLD SEPARAT CON TUBE,CYLINDER
2 NSS [1] NOT SOLD SEPARAT CON ROD,PISTON
3 LS01V00020S003 [1] CYLINDER HEAD KOB CYLINDER HEAD
4 2438U1171S4 [1] BUSHING KOB
5 2438U1171S5 [1] LOCKING RING KOB
6 LC01V00054S006 [1] RING KOB BUFFER
7 LC01V00054S007 [1] RING KOB U
8 LS01V00020S008 [1] RING KOB BACK-UP
9 2438U1171S34 [1] SEALING RING KOB
10 ZD12G16000 [1] O-RING KOB
11 2438U1171S11 [1] BACK-UP RING KOB
12 LC01V00005S012 [12] SCREW KOB CAP
13 LC01V00054S013 [1] BEARING KOB CUSHION
14 LC01V00054S014 [1] SEAL KOB CUSHION
15 LC01V00054S015 [1] PISTON KOB
16 2438U1171S16 [1] SEAL KOB
17 2438U1171S17 [2] BACK-UP RING KOB
18 LC01V00054S018 [2] RING KOB SLIDE
19 2438U1171S19 [2] RING KOB
20 LC01V00005S020 [1] SHIM KOB
21 LC01V00054S021 [1] NUT KOB
22 2438U1171S22 [1] SET SCREW KOB
23 2436U330S27 [1] BALL KOB
24 LC01V00054S024 [1] BEARING KOB CUSHION
25 LC01V00005S025 [1] SEAL KOB
26 2438U1137S26 [2] STOP KOB
27 2438U1171S27 [1] LOCKING RING KOB
28 LC01V01029P1 [2] BUSHING KOB (F1 ONLY)
29 2438U1170S25 [4] RING KOB
30 NSS [1] NOT SOLD SEPARAT CON TUBE,CYLINDER
31 NSS [1] NOT SOLD SEPARAT CON ROD,PISTON
32 2438U1171S28 [4] BUSHING KOB (F2 ONLY)
K. LC01V00054R100 [1] REPAIR KIT KOB ROD SIDE
K. LC01V00054R200 [1] REPAIR KIT KOB PISTON SIDE
K. LC01V00054R300 [1] REPAIR KIT KOB ROD & PISTON
K. LC01V00054R400 [1] REPAIR KIT KOB
K. LC01V00054R500 [1] REPAIR KIT KOB

LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9

LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9

LC01V00054R300 Arm Cylinder Seal Kit Excavator Service Kit Fits For Kobelco SK350-8 SK350-9

Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
