Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$21,500/sets >=1 sets
Type :
Gravity Separator
Production Capacity :
95%
Voltage :
220V/380V
Dimension(L*W*H) :
7000*2000*3000
Weight :
8 KG
Warranty :
1 Year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pump, Engine
Key Selling Points :
High Rigidity
After-sales Service Provided :
Engineers available to service machinery overseas
Usage :
gold washing & separating
Color :
customized
Installation :
Engineer Guide
Application :
gold mining
After sale service :
One Year
Quality :
ISO 90012008 Standard
Motor :
Chinese Famous Brand
Applicable Industries :
Manufacturing Plant, Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Certification :
CE 9001
MOQ :
1
Description
Product Description

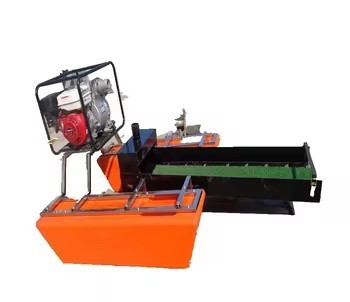

Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic. There are advantages that small in size, easy to transportation , it is widely used for working of gold mining in mini river channel.

ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
Mini Gold Dredger
Model QFT3-2 QFT4-3 QFT5-3
Dimension 2300*1500*1000mm 2500*1500*1000mm 2500*1500*1000mm
Diesel


Model RZ170F RZ178F RZ186FA
Power 5hp 7hp 12hp
Rotate Speed 3600rpm 3600rpm 3600rpm
Fuel Consumption ≤284g/Kw·h ≤283g/Kw·h ≤280g/Kw·h
Fuel Capacity 2.65L 3.3L 5.5L
Pump 1 set 1 set 2 sets
Dimension(L*W*H) 550*450*450mm 550*470*450mm 550*500*480mm
Pump Diameter 50mm(2inch) 80mm(3inch) 100mm(4inch)
Water Flow 33m³/h 60m³/h 80m³/h
Head 30m 30m 25m
Dredging depth 0.5-0.8 m 0.5-0.8 m 1.5 m
Work Capacity 5m³/h 8m³/h 13m³/h
Gold Chute


Dimension(L*W) 400*1500mm 500*1700mm 500*1700mm

With gold felt With gold felt With gold felt
Float


Dimension(L*W*H) 1600*395*370 1600*395*370 1600*395*370
Suction Pipe 3inch 4inch 5inch
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
Main Features
  • Portable, small in size:easy to operate, maintain, transport and assemble, it is most ideal equipment for personal gold mining in mini river channel.
  • Hot sale all over the world: Had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
  • High efficiency:It is equipped with a gold chute with gold carpet for high recovery rate.
  • Quick return, high profits:It is highly efficient with low cost, a good gold mining machine.
  • Standard quality: Float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.
  • Customization design: According to the different geological condition, capacity requirement planning and the customers budget, provid the most ideal product for investor.
Certifications
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
Testing
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
Packing&Loading
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
Our Service
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
  1. 1. Our company signs a long-time after-sale service agreement with customers.
  2. 2. We provide rational and practical design according to customers' request.
  3. 3. We send engineers to assemble and test the machine within the period as agreed in the contract.
  4. 4. Within warranty period, we provide free repair if quality problems emerge.
  5. 5. We provide free training of operation and maintenance for customers.
  6. 6. We supply high quality accessories in low price.
  7. 7. We make an excellent filing of customers for long-term following -up service.
Company Profile
ISO 9001:2008 Standard Mini Gold Dredger with High Recovery Rate and Small in Size for Efficient Gold Mining
Qingzhou Keda Environment Protection Machinery Co., Ltd

Qingzhou Keda Environment Dredging Equipment Co.,Ltd. is located in Qing­zhou city, Shandong province, China with 22000m2 area and more than 100 staff, very convenient to Qingdao sea Port, Weifang airport and Qingdao In­ternational Airport.

To be honest and adhering client-first is our service concept. To make first-class quality and service is our brand goal. To take clients as the center, strive for survival by quality and seek development by innovation is our enter­prise tenet. We provide high quality products and faultless service.

Our company has taken the lead of passing IS09001 :2008 International Quality System Certification & the General Ship Production Enterprise Technical Condi­tion Evaluation Certificate issued by ZC, to provide our customers with dredger products of high standard & quality. Products had been exported to more than 1 o countries such as Phlipplines, Russia, Indonesia, North Korea, Surinam, Congo, Mali, Fiji, Bangladesh,Argentina,Columbia etc.
