Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$8,000/units >=1 units
Certification :
CE 9001
MOQ :
1
Type :
Gravity Separator
Production Capacity :
90%
Voltage :
220V/380V
Dimension(L*W*H) :
8300*2400*4700mm
Weight :
100 KG
Warranty :
1 Year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pump, Engine
Key Selling Points :
High Rigidity
After-sales Service Provided :
Engineers available to service machinery overseas
Spare parts of Vibrating screen :
Available
Working Capacity :
10-400tons
Usage :
Gold Processing Plant
Wear parts :
Trommel
Recovery rate :
85-95%
Move way :
Portable Mobile Gold Trommel Wash Plant
Classify :
Mini,Small,Normal
Optional equipment :
Gold Cip Plant
Capacity :
50-300t/h
Applicable Industries :
Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Description
High Concentration Ratio Gold Shaking Table for Gold Processing Plant
Product Overview
Gold Panning Equipment 6-S Gold Mining Shaking Table

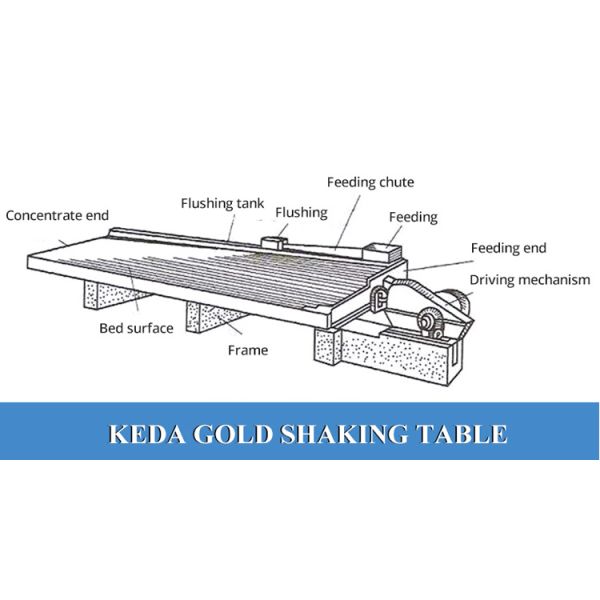

Shaking table is also called table concentrator, is a mine separation device for fine minerals working by gravity.

As per different minerals have different density, Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Copper, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Rutile, Ilmenite, Lead, Zinc, Mercury, Copper, Aluminum, etc.

The shaker effective recycling granularity scope is 2-0.037 mm.

High Concentration Ratio Gold Shaking Table for Gold Processing Plant
Our Advantages
  1. High recovery ratio;
  2. High concentration ratio;
  3. Easy installation;
  4. Simple operation;
  5. Deck constructed of fiber glass;
  6. Seven different decks to choose;
  7. Long working life;
  8. Adjustable stroke length and speed.

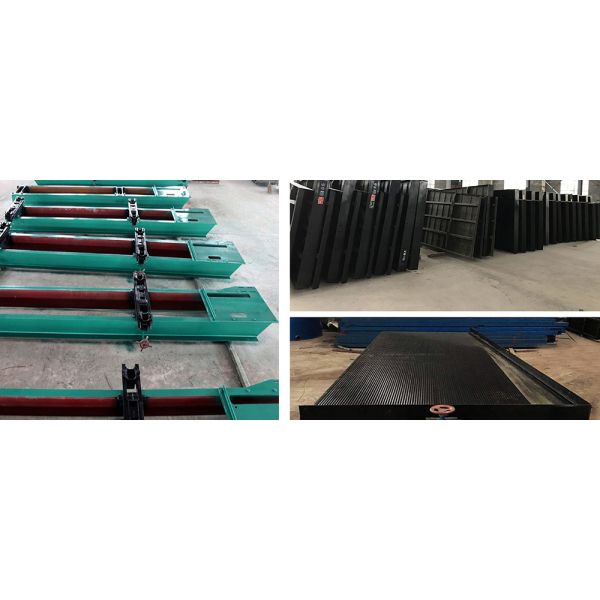

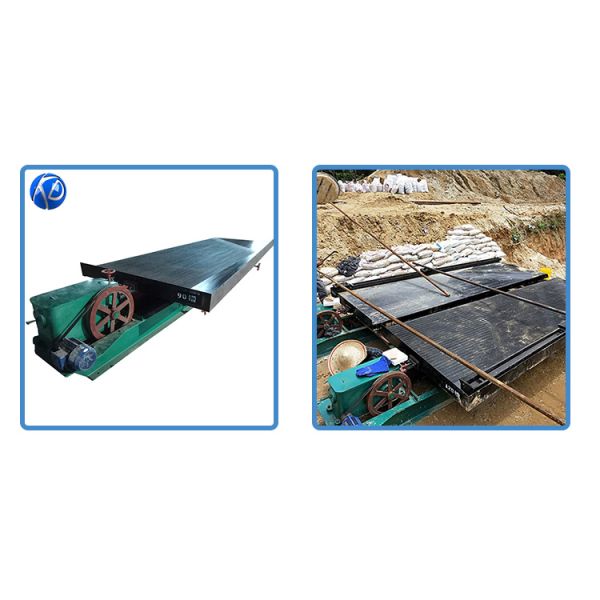

Details Images
High Concentration Ratio Gold Shaking Table for Gold Processing Plant
High Concentration Ratio Gold Shaking Table for Gold Processing Plant
Product parameters
Specification 6-S model 6-S model 6-S model 6-S model
Bed model LY(S) LY LY LY
Bed surface size(mm) 4500*1850*1560 3000*1620*1100 2100*1050*850 1100*500*430
Square meter(M2) 7.67 4.08 2 0.51
Feed size(mm) Coarse sand 2-0.5 2-0.5 2-0.5 2-0.5
Fine sand 0.5-0.074 0.5-0.074 0.5-0.074 0.5-0.074
Mud 0.074-0.037 0.074-0.037 0.074-0.037 0.074-0.037
Feeding density(%) 10-30 10-30 10-30 10-30
Processing capacity(t/h) Coarse sand 1-2.5 0.6-1.5 0.4-0.8 0.1-0.2
Fine sand 0.8-1.2 0.3-0.8 0.2-0.5 0.05-0.1
Mud 0.3-0.9 0.2-0.6 0.1-0.4 0.03-0.05
Water consumption(t/h) 0.4-1.8 0.3-1.5 0.2-1 0.1-0.5
Stoke(mm) 10-30 10-30 10-30 9~17
Frequency of stoke(time/min) 240-360 210-360 210-360 130-210
Transverse slope (degree) 0°~10° 0°~10° 0°~10° 0°~8°
Motor Model Y70L-4 Y100L-4 Y90L-4 Y80L-4
Power(kw) 1.1 1.1 1.1 0.55
Speed(r/min) 1400 1400 1400 1400
V-belt (mm) A-2000 A-1033 B-2007 A-1245
L*W*H Dimension(mm) 5630*1850*900 4075*1320*780 3040*1050*1020 1530*500*800
6S shaking table feeding density reference table
Model Feeding density(%)
Coarse sand Fine sand Mud
6S model shaking table 20-30 18-25 15-20
High Concentration Ratio Gold Shaking Table for Gold Processing Plant
Company Profile
High Concentration Ratio Gold Shaking Table for Gold Processing Plant
Why Choose us?
  • More than 10 years of production experience in dredgers and mineral processing equipment
  • Strong technical service team, can provide customized services
  • Own design team with 21 patents
  • Industry and Trade Integration Enterprise
  • The factory covers an area of over 22,000 square meters
  • 3 production lines-dredger-cleaning boat-gold mining equipment
