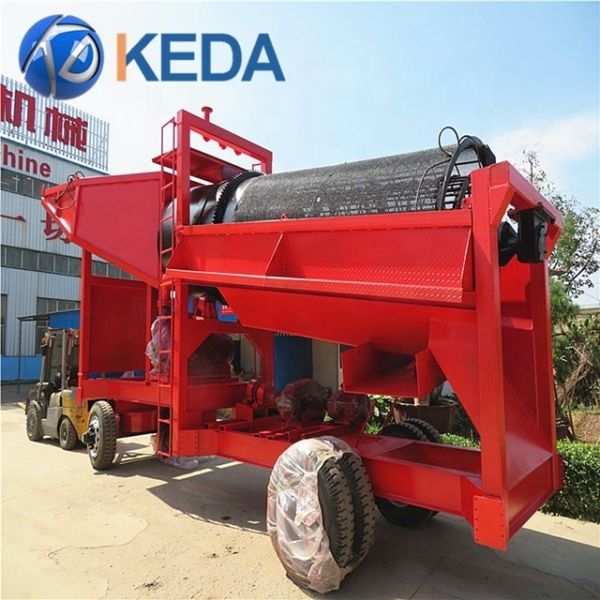

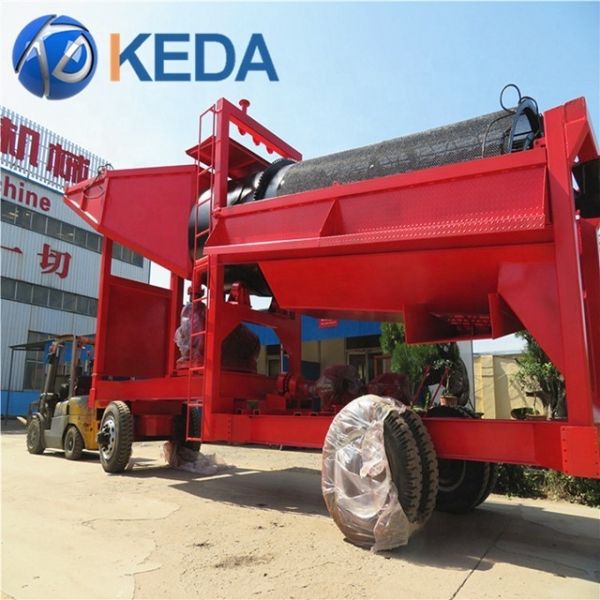

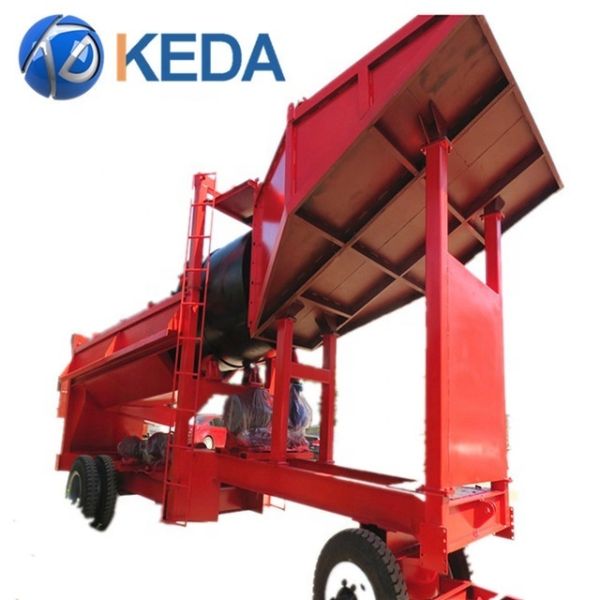

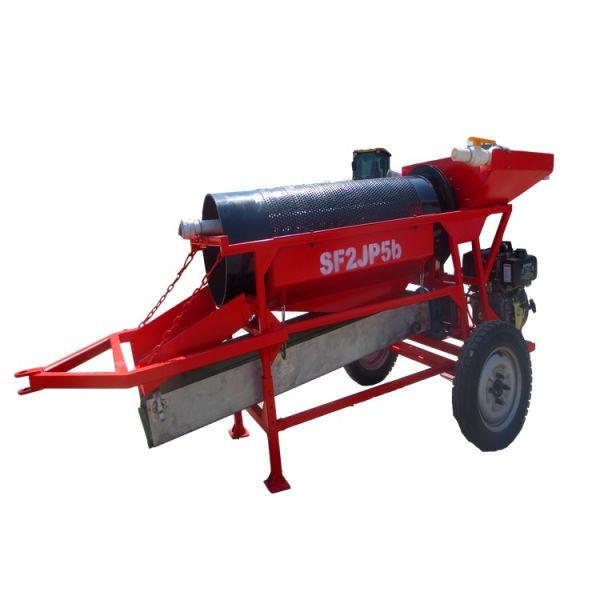

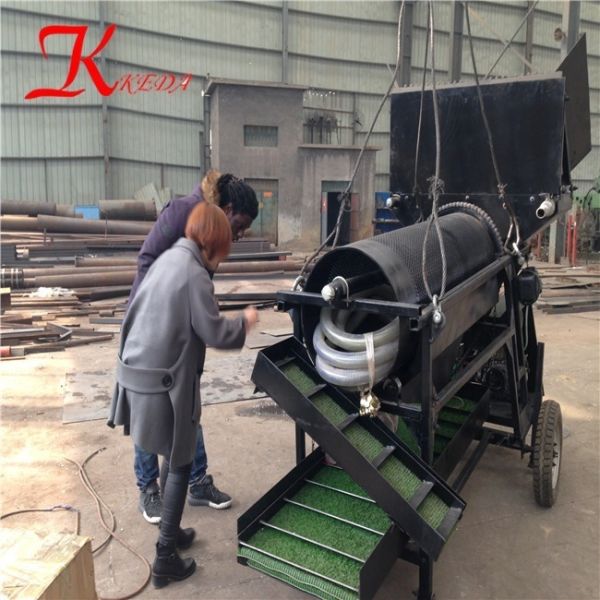

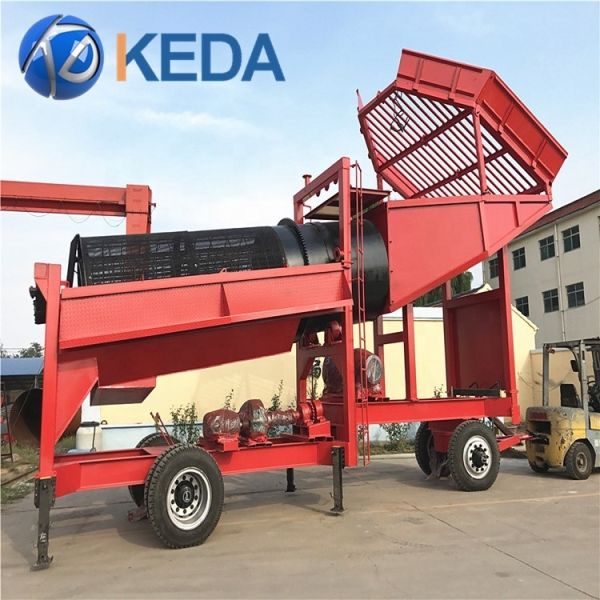

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$4,000/sets >=1 sets
Type :
Gravity Separator, Gravity Separation
Production Capacity :
>96%
Voltage :
220 V, 380 V
Dimension(L*W*H) :
2700*1200*1550
Weight :
3000 KG
Warranty :
1 Year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Engine
Key Selling Points :
Patented Product, Obvious Gold-selected Effect
After-sales Service Provided :
Service Machinery Overseas
Name :
China Gold Mining Equipment
Keywords :
Centrifugal Gold Concentrtor
Certification :
CE 9001
MOQ :
1
Description
Product Description
Gold Trommel Wash Plant

Gold washing trommel plant is one of the most widely used sand gold washing equipment, suitable for modern mechanized production,high work efficiency, modular design is easy for installation and debugging to adapt to different sand and gold ore deposits.

The main structure is divided into feeding system, cleaning and screening system, collection and recovery system.

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Manufacturing Technique
Model KDTJ-5 KDTJ-10 KDTJ-30
Dimension (L*W*H) (mm) 2800*1350* 1150 2900 *1200*1500 8000*2250*2500
Processing capacity(t/h) 1-5t/h 5-10t/h 10-30t/h
Generator Power 2.5kw 3.6kw
Trommel Screen (dia.*length) 400(Dia.)*1300(Length) 530(Dia.)*1800(Length) 2000(Dia.)*1000(Length)
Gold Chute with Carpet(W*L) 1.5*0.4M*1pic 2*0.6M*1pic 1*6M*1pic
Pump Power 1.5kw 2.2kw 11kw
Water Flow 3m³/h 5m³/h 150m³/h
Details Images
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Detailed Images
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Engine and pump

Brand: Honda, Kipor, KOHLERetc.

World famous brand engine and pump with strong power, such as Honda, Kipor, KOHLER etc.

Carpet

Brand: Mitsubishi

Carpet in the sluice is made by Mitsubishi. Durable, double-layer, anti-skid, anti-abrasion, anti-corrosion, high recovery rate up to 90%.

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Chain-drive

Brand: KEDA

Instead of belt-drive the use of chain-drive efficiently avoids water-causing skid which guarantees the high efficiency of trommel screen.

Packing & Delivery
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Packaging
Size 4(L) * 1 (W) * 1 (D)
Weight 1.2 T
Packaging Details Use angle iron frame & plywood, strong frame with lifting ring, can be moved by forklift or crane, strong packing in case of damage and spare lost.
Relative Equipment
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery

50 tph Gold Wash Plant▶

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery

100 tph Gold Wash Plant▶

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery

200 tph Gold Wash plant ▶

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery

Gold Vibrating Sluice ▶

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery

Gold Centrifuge ▶

Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery

Jigger Machine ▶

Company Profile
Small Scale Mini Portable Gold Trommel Wash Plant with Siphon Mobile Plant for Efficient Gold Recovery
Qingzhou Keda Environment Protection Machinery Co., Ltd
  • More than 10 years of production experience in dredgers and mineral processing equipment
  • Strong technical service team, can provide customized services
  • Own design team with 21 patents
  • Industry and Trade Integration Enterprise
  • The factory covers an area of over 22,000 square meters
  • 3 production lines-dredger-cleaning boat-gold mining equipment
