I. Product overview

A pup joint is a pipe of non-standard length used to adjust the length of tubular strings to its exact requirement.
API casing and tubing pup joints are manufactured according to API Spec 5CT using prime API monogrammed, seamless oil country tubing.

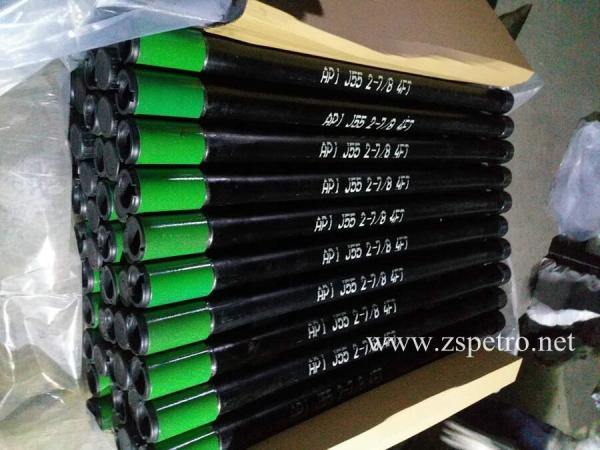

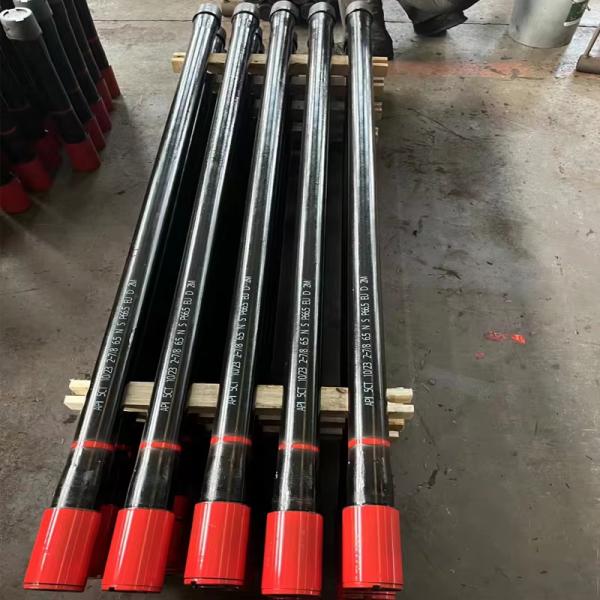

Tubing Pup joint used to connect or adjust the length of the tubing string in oil and gas wells. Itis usually shorter than a standard tubing (single) and has a length of 0.5m~3m. It has thecharacteristics of high strength, corrosion resistance, and good sealing.

Mainly used for:

-Adjust the length of the tubing string to meet the requirements of the well depth.

-Replace the damaged oil pipe section.

-As an adapter joint and sealing section.

II. Execution standards

-Pipe body standard: Implement API Spec-5CT, which provides strict regulations on thematerial, mechanical properties, dimensional tolerances, and other aspects of oil pipes,

ensuring that the pipe body has good quality and performance to adapt to harsh workingenvironments such as oil extraction. -Thread standard:

The thread processing follows the API Spec-5CT standard to ensure theaccuracy, strength, and sealing of the thread,

so that the oil pipe short joint can fit tightly duringconnection and prevent oil and gas leakage.

III. Technical date

DRAWING

IV. Types

1. Ordinary short joint: The most common type, and widely used,It is suitable for general oilextraction and transportation scenarios and can meet conventional connection requirements.

2. Double PIN Short joint: Both ends have external threads (PIN), commonly used to connecttwo oil pipes or other fittings with internal threads (BOX), to extend the pipeline or change the connection position.

3. Overall thickening and short joint: By using processes such as thickening the pier or peelingoff thick wall materials, the wall thickness of the pipe body is increased, and its strength andpressure resistance are significantly improved.

It is suitable for connecting oil pipes underspecial working conditions such as high pressure and high stress.
