Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Specifications
Brand Name :
ZS
Model Number :
ZS
Certification :
API
Place of Origin :
China
MOQ :
1
Price :
US$160
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
15says
Packaging Details :
wooden case
Description

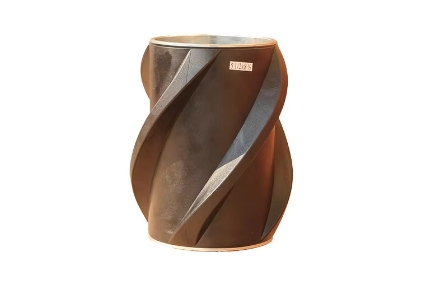

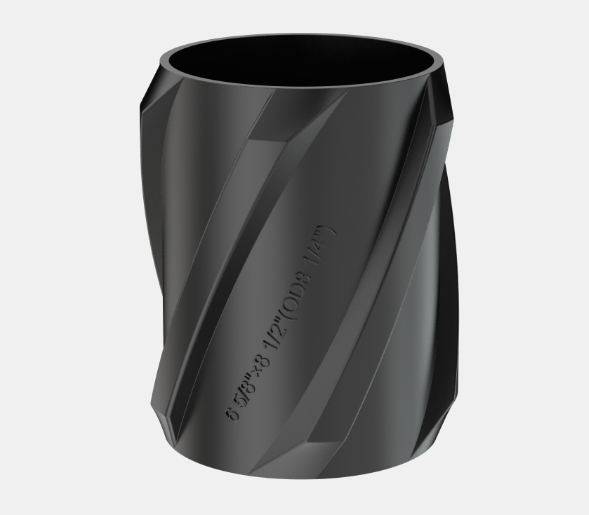

Solid Rigid Centralizers

Solid rigid centralizers is built using cast aluminum or steel materials. Because the diameter is smaller than the wellbore, so the solid rigid centralizers are not as effective as bow spring centralizers in vertical wells. But they are rugged and works well in the deviated wellbores.

Solid rigid centralizers are available with straight or spiral vanes & rollers. And the length can be regular or short lengths.

4-1/2" to 20" standard sizes and customized service help you find the best solid rigid centralizers for oil and gas cementing projects.

Technology


Size (in.) Inside Diameter (mm) Height (mm) Total Height (mm) Max. Outside Diameter (mm)
5" × 6-1/2" 128–131 110 650 175
5" × 6-1/4" 130–132 110 650 170
5" × 12-1/4" 128–131 105 690 330
5" × 20" 128–131 105 720 535
5-1/2" × 7" 142–148 55 650 215
5-1/2" × 8-1/2" 142–148 55 650 225
5-1/2" × 8-1/2" 142–148 110 650 225
6" × 8-1/2" 156–158 55 650 235
7" × 8-1/2" 181–186 55 650 235
7" × 8-1/2" 181–186 110 650 235
7" × 9-5/8" 181–186 55 650 255
7" × 9-5/8" 181–186 110 650 255
7-5/8" × 9-1/2" 196–200 110 650 250
7-5/8" × 9-5/8" 197–201 55 650 275
7-5/8" × 12-1/4" 197–201 55 650 275
8-5/8" × 12-1/4" 223–228 55 650 330
9-5/8" × 12-1/4" 250–255 55 650 330
9-5/8" × 12-1/4" 250–255 110 650 330
10-3/4" ×12-1/4" 274–276 55 650 330
10-3/4" ×12-1/4" 274–276 110 650 330
13-3/8" × 17-1/2" 342–347 55 650 450
13-3/8" × 17-1/2" 342–347 110 650 450
18-5/8" × 24" 476 55 600 610
20" × 26" 510 55 600 660

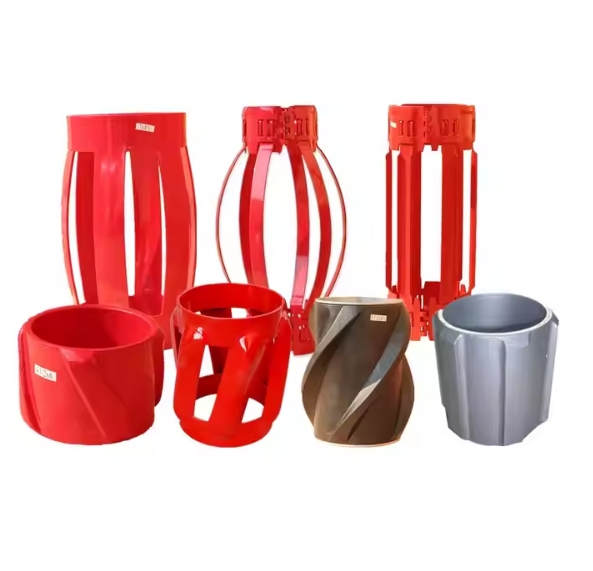

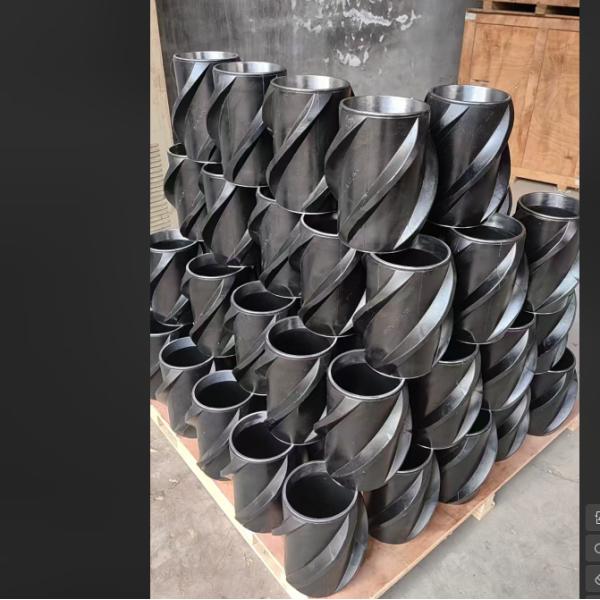

Detailed Images

Composite Material Spiral Type Casing Centralizer 13 5/8



Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Composite Material Spiral Type Casing Centralizer 13 5/8
Packaging & Shipping


Composite Material Spiral Type Casing Centralizer 13 5/8


Composite Material Spiral Type Casing Centralizer 13 5/8

Composite Material Spiral Type Casing Centralizer 13 5/8

Composite Material Spiral Type Casing Centralizer 13 5/8

Composite Material Spiral Type Casing Centralizer 13 5/8

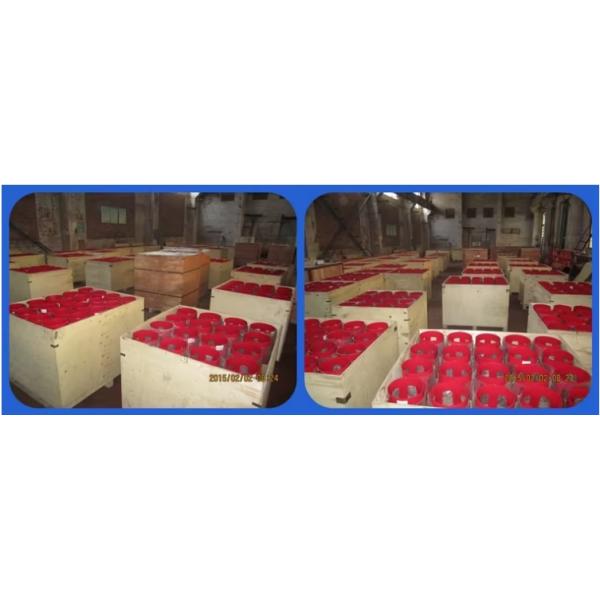

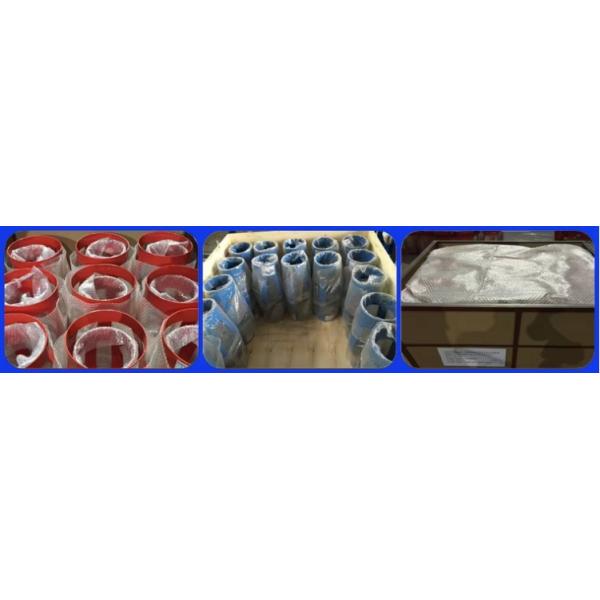

Packaging & Shipping

Rigid Roller centralizer used in deep water Horizon Well packing: wooden case

Composite Material Spiral Type Casing Centralizer 13 5/8 Composite Material Spiral Type Casing Centralizer 13 5/8

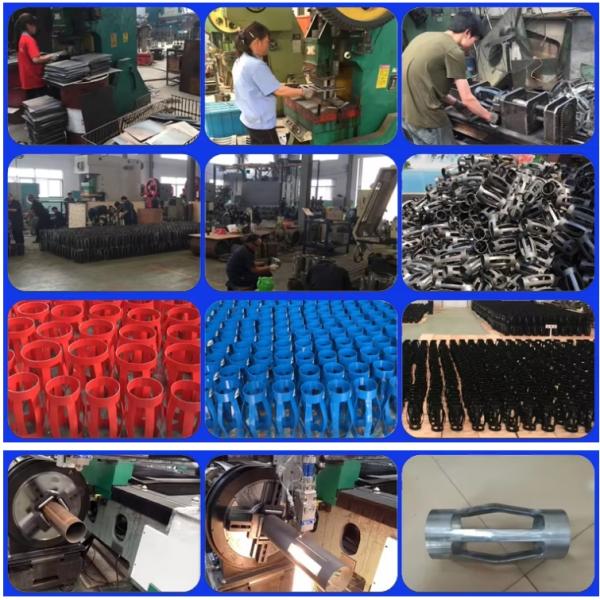

Company Information

Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .

We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
