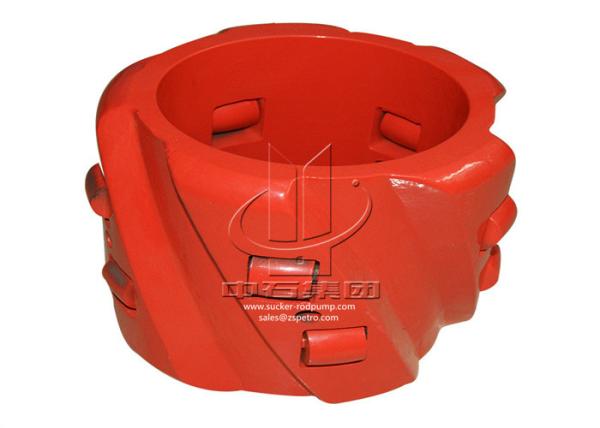

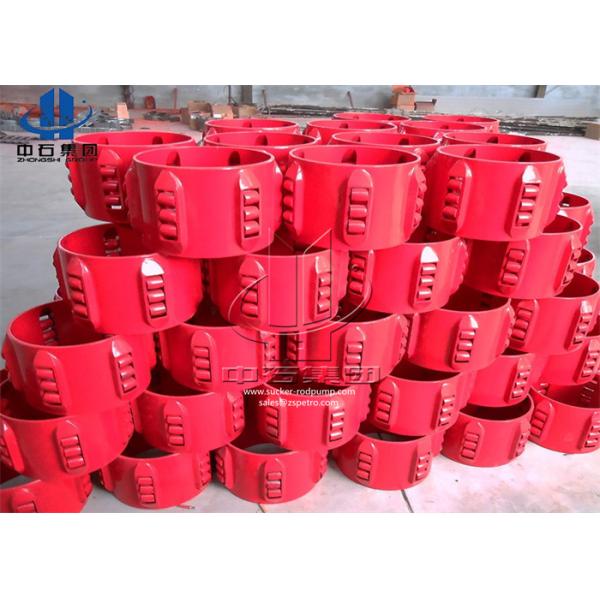

Spiral Vane Rigid Bow Spring Centralizer Casing Roller
Spiral Vane Rigid Bow Spring Centralizer Casing Roller
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~36"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Product :
Solid Rigid Welded Vane with Screws Casign centralizer
Installation :
Slip-on Type
Type :
Solid rigid
Vane Type :
Spiral
Color :
Red Color
Application :
Well cementing
Description

API Standard Spiral Vane Roller Rigid Centralizer Casing Roller Centralizer

It provides mechanism that centers the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Efficient in the cementing process, we provide this machine in various specifications and hole sizes,

Solid Rigid Welded Vane with Screws Casign centralizer Features
  • Available with straight blade centralizer and spiral blade centralizer
  • The solid rigid centralizer with high tensile and yield strengths is used in deviated or horizontal wells.
  • The solid rigid centralizers are available, straight or spiral blade both available,
  • Straight blade for low density fluid,spiral blade for high density fluid.


Solid Rigid Welded Vane with Screws Casign centralizer Specification
NO. Size (in)ID(mm)ODHeight
(mm)(mm)
813-3/8”*17-1/2”342-347440250
79-5/8”*12-1/4”250-255311250
47”*8-1/2”181-186210130
57”*9-5/8”181-186240200
67-5/8”*9-5/8”197-201240200
36”*8-1/2”156-158210130
15-1/2”*7”142-148174130
25-1/2”*8-1/2”142-148210130
